L.H. Main Wiring Harness - Continued (690401 - 695400)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
30	AH169128	1	Wiring Harness	L.H. MAIN
31	R78053	1	Electrical Connector Assy	HYDRO CHARGE PRESS
32	AH165526	1	Module	-
33	57M7697	1	Electrical Connector Assy	ENGINE WIRING HARNESS
33	57M7699	1	Elec. Connector Terminal	-
34	57M7633	1	Electrical Connector Assy	ENGINE WIRING HARNESS
35	57M7030	3	Elec. Connector Terminal	RELAY PANEL
35	57M7732	4	Electrical Connector Assy	-
35	57M7132	2	Terminal	-
36	57M7572	2	Elec. Connector Terminal	RELAY PANEL
36	57M7732	1	Electrical Connector Assy	-
37	-	1	Part 12	(ORDER AH140120) L.H. REAR SIDE MARKER LAMP
38	-	1	Part 13	L.H. REAR TAIL/TURN LAMP
39	H141411	1	Round Retainer	-
39	RE12363	1	Electrical Connector Assy	L.H. WARNING LAMP
40	R78053	1	Electrical Connector Assy	REAR LIGHT
41	R78053	1	Electrical Connector Assy	STRAW CHOPPER LSSM
42	RE12363	1	Electrical Connector Assy	CHOPPER LSSM SHORTING PLUG
43	-	1	Part 19	L.H. TAIL/BRAKE SIGNAL
44	-	1	Part 20	-
45	-	1	Part 21	L.H. REAR SIDE SHEET GROUND
46	RE12363	1	Electrical Connector Assy	WALKER SPEED LSSM
47	RE12363	1	Electrical Connector Assy	COIL
48	57M7572	1	Elec. Connector Terminal	VALVE STACK GROUND
49	-	1	Part 25	DIODE MODULE
50	-	1	Part 26	L.H. SHOE LAMP
51	R77465	1	Elec. Connector Terminal	-
51	H118426	1	Electrical Connector Assy	VALVE STACK
52	H118426	1	Electrical Connector Assy	VALVE STACK
52	R77465	1	Elec. Connector Terminal	-
53	R78055	1	Electrical Connector Assy	SIDEHILL WIRING HARNESS
54	RE12363	1	Electrical Connector Assy	GULLWING SWITCH
55	RE12363	1	Electrical Connector Assy	SHOE LIGHT SWITCH
56	57M8130	1	Elec. Connector Housing	FAN SPEED ACTUATOR
56	57M7510	2	Elec. Connector Terminal	-
57	RE12363	1	Electrical Connector Assy	POWERED REAR WHEELS
58	RE12363	1	Electrical Connector Assy	CLEAN GRAIN ELEVATOR LSSM
59	-	1	Part 38	-
60	-	1	Part 39	-
61	-	1	Part 40	-
62	R78053	1	Electrical Connector Assy	GROUND SPEED SENSOR
63	RE12363	1	Electrical Connector Assy	CONVEYOR AUGER LSSM
64	AE44392	1	Electrical Connector Assy	(ALSO ORDER AE44389) REEL SPEED ACTUATOR
64	AE44389	1	Elec. Connector Accessory	-
64	R77465	1	Elec. Connector Terminal	-
65	-	1	Part 46	RELAY PANEL GROUND
66	57M7309	1	Elec. Connector Housing	TWO-SPEED FOUR WHEEL DRIVE
66	57M7297	1	Elec. Connector Terminal	-
66	R78059	1	Elec. Connector Seal	-
66	57M7306	1	Elec.Connect Locking Device	-
67	AH165984	1	Module	DIODE

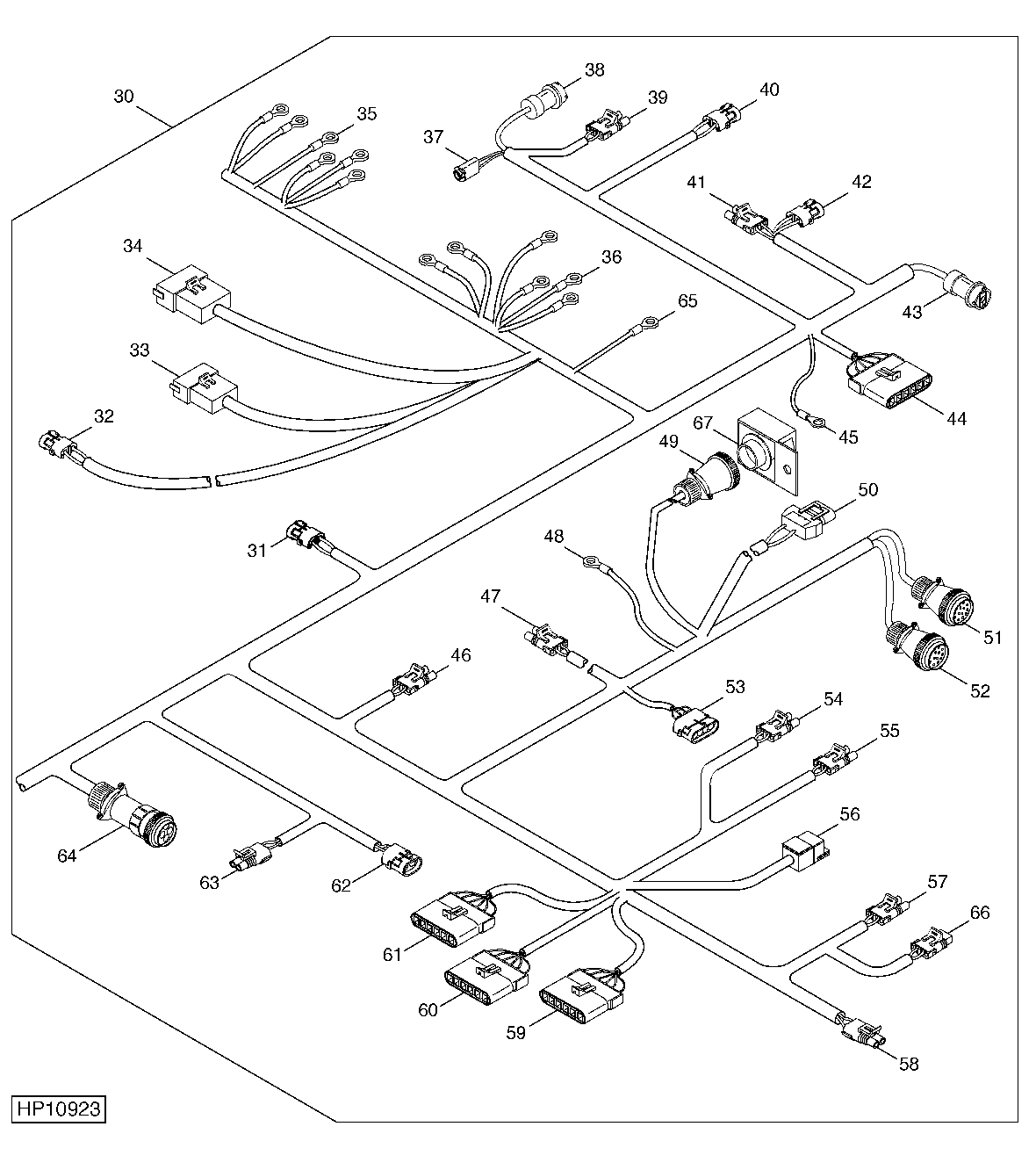

L.H. Main Wiring Harness - Continued (690401 - 695400)
