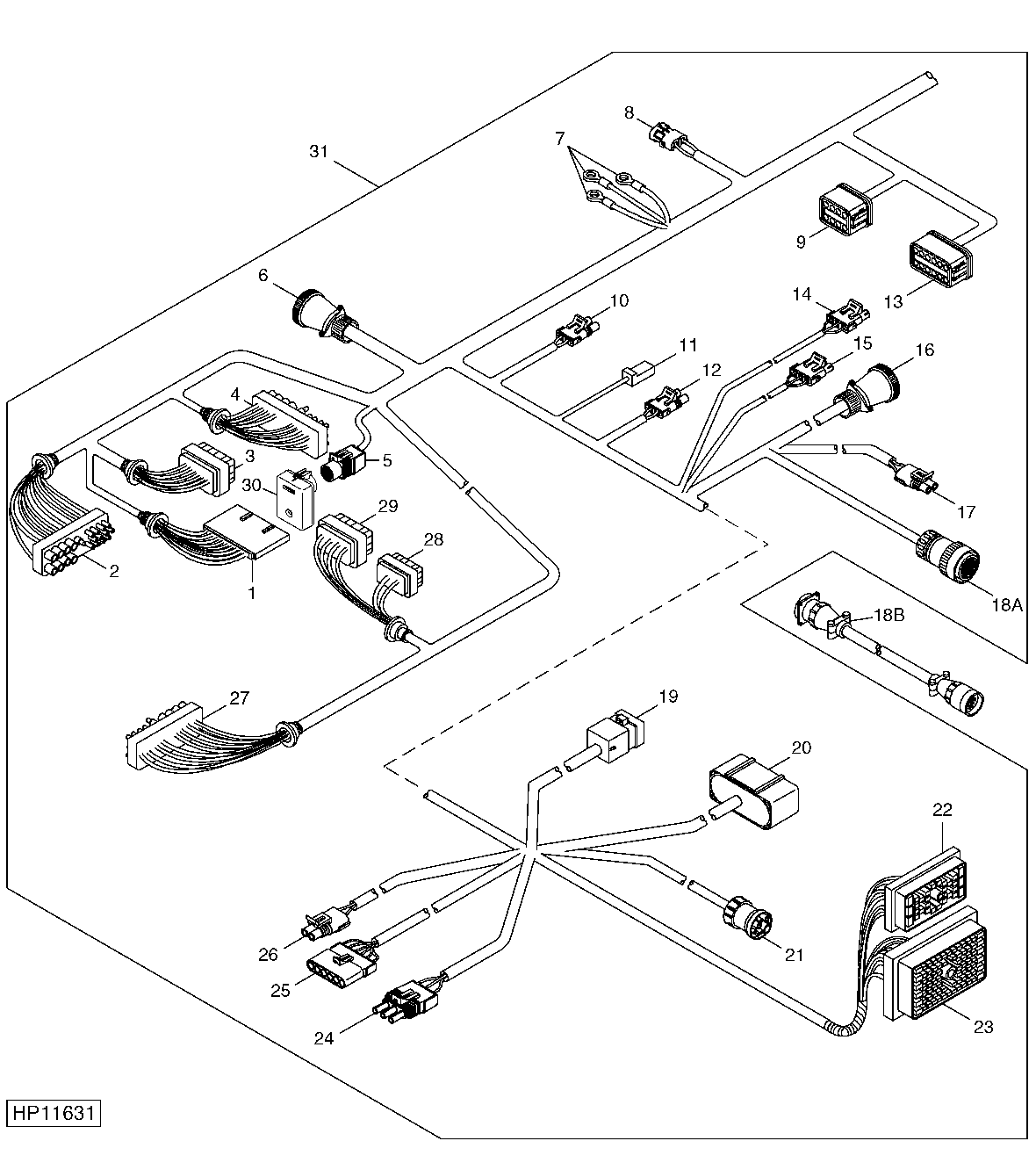

L.H. Main Wiring Harness (690401 - 695400)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7818	1	Electrical Connector Assy	DASH
2	H132513	1	Electrical Connector Assy	CEB POWER DISTRIBUTION BOARD
2	57M7546	1	Elec. Connector Terminal	-
3	57M7253	1	Elec. Connector Housing	RELAY PANEL 1
3	R104701	1	Elec. Connector Terminal	-
4	H132513	1	Electrical Connector Assy	POWER BOARD
4	57M7546	1	Elec. Connector Terminal	-
5	57M7538	1	Elec. Connector Housing	TERMINATOR
5	57M7291	1	Electrical Connector Assy	-
6	AH135787	1	Elec. Connector Terminal	GRAIN TANK
6	AE44927	1	Electrical Connector Assy	-
6	57M7546	1	Elec. Connector Terminal	-
6	57M8329	1	Electrical Connector Assy	-
6	H141325	1	Elec.Connect Locking Device	-
7	57M7572	2	Elec. Connector Terminal	GRAIN TANK GROUND
7	57M7118	2	Elec. Connector Terminal	GROUND
8	R78053	1	Electrical Connector Assy	GULLWING SERVICE LIGHTS
9	57M7632	1	Electrical Connector Assy	SLAVE TAILING SENSOR
10	RE12363	1	Electrical Connector Assy	CLUTCH
11	M47293	1	Elec. Connector Terminal	WINDSHIELD WASHER PUMP
12	RE12363	1	Electrical Connector Assy	TAILINGS ELEVATOR LSSM
13	57M7634	1	Electrical Connector Assy	MASTER TAILING SENSOR
14	RE12364	1	Electrical Connector Assy	FEEDER HOUSE POSITION SENSOR
14	R78060	1	Elec. Connector Terminal	-
14	R78063	1	Elec. Connector Seal	-
15	RE12364	1	Electrical Connector Assy	L.H. TURNING SIGNAL/WARNING LAMP
15	R78060	1	Elec. Connector Terminal	-
15	R78063	1	Elec. Connector Seal	-
16	57M7543	1	Elec. Connector Housing	STEERING COLUMN
17	R78053	1	Electrical Connector Assy	L.H. COMBINE STUBBLE LIGHT
19	57M7697	1	Electrical Connector Assy	R.H. MAIN WIRING HARNESS
19	57M7699	1	Elec. Connector Terminal	-
20	-	1	Part 36	R.H. MAIN WIRING HARNESS
21	57M7652	1	Electrical Connector Assy	AIR CONDITIONING WIRING HARNESS
22	57M7854	1	Electrical Connector Assy	ARMREST
22	57M7546	1	Elec. Connector Terminal	-
22	57M7864	1	Electrical Connector Assy	-
23	57M7693	1	Elec. Connector Housing	CAB MAIN
23	R78063	1	Elec. Connector Seal	-
24	-	1	Part 43	R.H. TURNING SIGNAL/WARNING LAMP
25	R78056	1	Electrical Connector Assy	HEADER R.H. SENSOR WIRING HARNESS
25	R78058	1	Elec. Connector Terminal	-
25	R78059	1	Elec. Connector Seal	-
26	RE12363	1	Electrical Connector Assy	R.H. COMBINE STUBBLE LIGHT
27	57M7546	1	Elec. Connector Terminal	-
27	H132513	1	Electrical Connector Assy	CEB POWER DISTRIBUTION BOARD
28	57M7279	1	Elec. Connector Housing	HEADER CONTROL J2
28	R104701	1	Elec. Connector Terminal	-
29	57M7253	1	Elec. Connector Housing	HEADER CONTROL J1
29	R104701	1	Elec. Connector Terminal	-
30	RE165032	1	Electronic Terminator	TERMINATOR (2.5 VOLTS), ORDER RE230324 AND RE207311
31	AH169128	1	Wiring Harness	L.H. MAIN
..	57M7285	6	Elec. Connector Terminal	-
..	R104846	6	Elec. Connector Terminal	-
..	RE207311	1	Electronic Control Unit	-
..	RE230324	1	Wiring Harness	INCLUDES 57M7285 AND R104846
18A	R78067	1	Elec. Connector Terminal	-
18A	57M7661	1	Electrical Connector Assy	HEADER WIRING HARNESS
18B	AH168232	1	Wiring Harness	HEADER WIRING HARNESS REPAIR KIT (INCLUDES MATING CONNECTOR AND TERMINALS)

L.H. Main Wiring Harness (690401 - 695400)
