Открытый узел

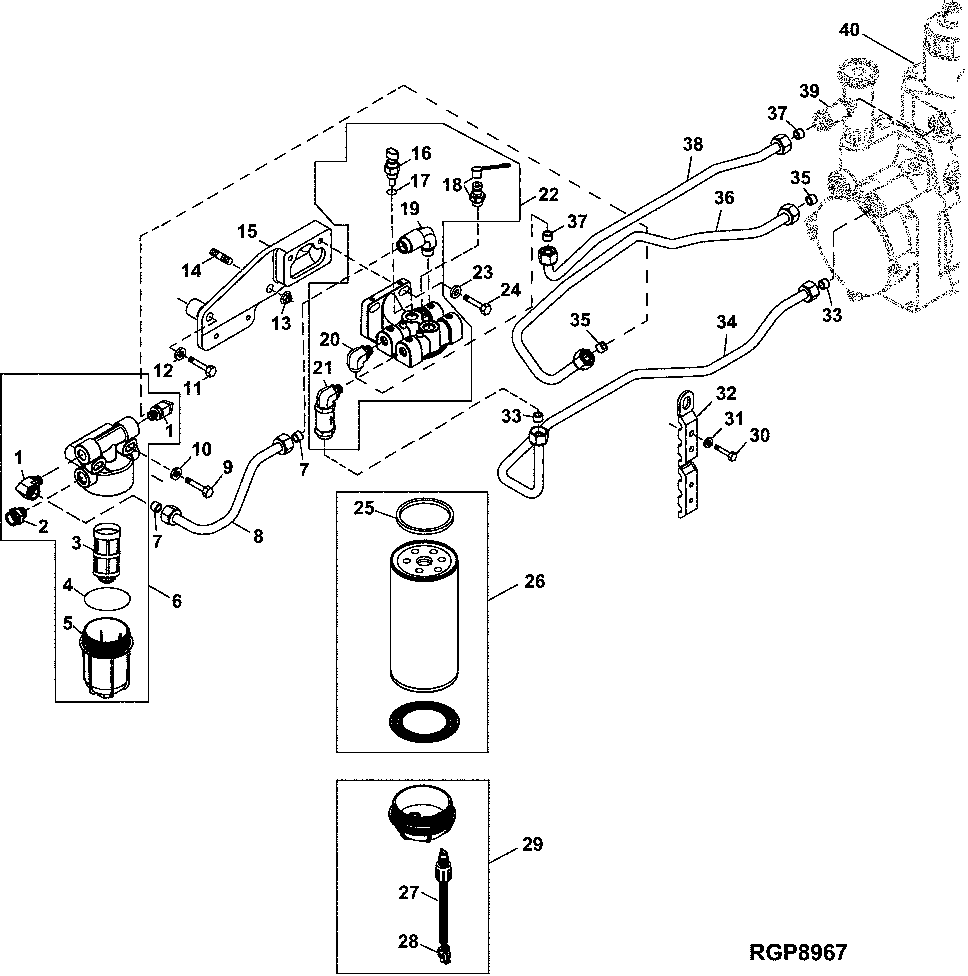

Fuel Filter and Lines (202102 - 232462)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE507027	2	Elbow Fitting	(FOR 9650 CTS COMBINE (695410- )) (CONTAINS 51M7042)
2	RE503605	1	Adapter Fitting	(FOR 9650 CTS COMBINE (695410- ))
3	R502778	1	Filter Element	(FOR 9650 CTS COMBINE (695410- ))
4	R101042	1	O-Ring	(FOR 9650 CTS COMBINE (695410- ))
5	R502777	1	Bowl	(FOR 9650 CTS COMBINE (695410- ))
6	RE507011	1	Fuel Filter	(FOR 9650 CTS COMBINE (695410- )) (PRE-FUEL FILTER)
7	R63551	2	Sealing Washer	(FOR 9650 CTS COMBINE (695410- ))
8	RE515890	1	Hydraulic Hose	(FOR 9650 CTS COMBINE (695410- ))
9	19H1907	2	Cap Screw	(FOR 9650 CTS COMBINE (695410- )) 5/16" X 2-3/4"
10	24H1136	2	Washer	(FOR 9650 CTS COMBINE (695410- )) 11/32" X 11/16" X 0.065"
11	19H2678	1	Cap Screw	(FOR 9650 CTS COMBINE (695410- )) 7/16" X 2-1/8"
12	24H1325	1	Washer	(FOR 9650 CTS COMBINE (695410- )) 15/32" X 59/64" X 0.065"
13	14H1059	1	Nut	(FOR 9650 CTS COMBINE (695410- )) 7/16"
14	R504516	1	Stud	(FOR 9650 CTS COMBINE (695410- ))
15	R504279	1	Bracket	(FOR 9650 CTS COMBINE (695410- ))
16	RE48419	1	Sensor	(FOR 9650 CTS COMBINE (695410- )) (INCLUDES 51M7041)
17	51M7041	1	O-Ring	(FOR 9650 CTS COMBINE (695410- )) 11.300 X 2.200 mm
18	RE190805	1	Diagnostic Coupling	(FOR 9650 CTS COMBINE (695410- )) (SUB FOR RE12187)
19	RE507029	1	Valve	(FOR 9650 CTS COMBINE (695410- ))
20	RE507027	1	Elbow Fitting	(FOR 9650 CTS COMBINE (695410- ))
21	RE507028	1	Check Valve	(FOR 9650 CTS COMBINE (695410- )) (SUB RE516346)
22	RE522640	1	Filter Head	(FOR 9650 CTS COMBINE (695410- )) SUB FOR RE516346
23	24H1305	5	Washer	(FOR 9650 CTS COMBINE (695410- )) 13/32" X 13/16" X 0.065"
24	19H3239	2	Cap Screw	(FOR 9650 CTS COMBINE (695410- )) 3/8" X 1-1/4"
25	R501388	1	Packing	(FOR 9650 CTS COMBINE (695410- ))
26	RE522372	1	Fuel Filter	(FOR 9650 CTS COMBINE (695410- )) (SUB FOR RE509596 OR RE519608) (USE WITH RE507010)
27	RE503590	1	Moisture Sensor	(FOR 9650 CTS COMBINE (695410- ))
28	57M7252	1	Elec. Connector Terminal	(FOR 9650 CTS COMBINE (695410- )) (ALSO ORDER (2) R104846, (2) 57M7258 AND 57M7289)
29	-	1	Part 29	(FOR 9650 CTS COMBINE (695410- )) (RE507187 NO LONGER AVAILABLE) (ORDER RE522372)
30	19H1791	2	Cap Screw	(FOR 9650 CTS COMBINE (695410- )) 1/4" X 1-1/4"
31	24H1286	2	Washer	(FOR 9650 CTS COMBINE (695410- )) 9/32" X 1/2" X 1/16"
32	RE509668	1	Clamp	(FOR 9650 CTS COMBINE (695410- ))
33	R63551	2	Sealing Washer	(FOR 9650 CTS COMBINE (695410- ))
34	RE506971	1	Fuel Line	(FOR 9650 CTS COMBINE (695410- ))
35	R63551	2	Sealing Washer	(FOR 9650 CTS COMBINE (695410- ))
36	RE506970	1	Fuel Line	(FOR 9650 CTS COMBINE (695410- ))
37	R63551	1	Sealing Washer	(FOR 9650 CTS COMBINE (695410- ))
38	RE509275	1	Fuel Line	(FOR 9650 CTS COMBINE (695410- )) (SUB FOR RE506972 OR RE508669)
39	RE508670	1	Check Valve	(FOR 9650 CTS COMBINE (695410- ))
40	-	1	Part 40	(FOR 9650 CTS COMBINE (695410- ))

Fuel Filter and Lines (202102 - 232462)

Нет текстового описания
