Engine Wiring Harness ( - 695400)

Engine Wiring Harness ( - 695400)

Engine Wiring Harness ( - 695400)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Engine Wiring Harness ( - 695400)

Нет текстового описания

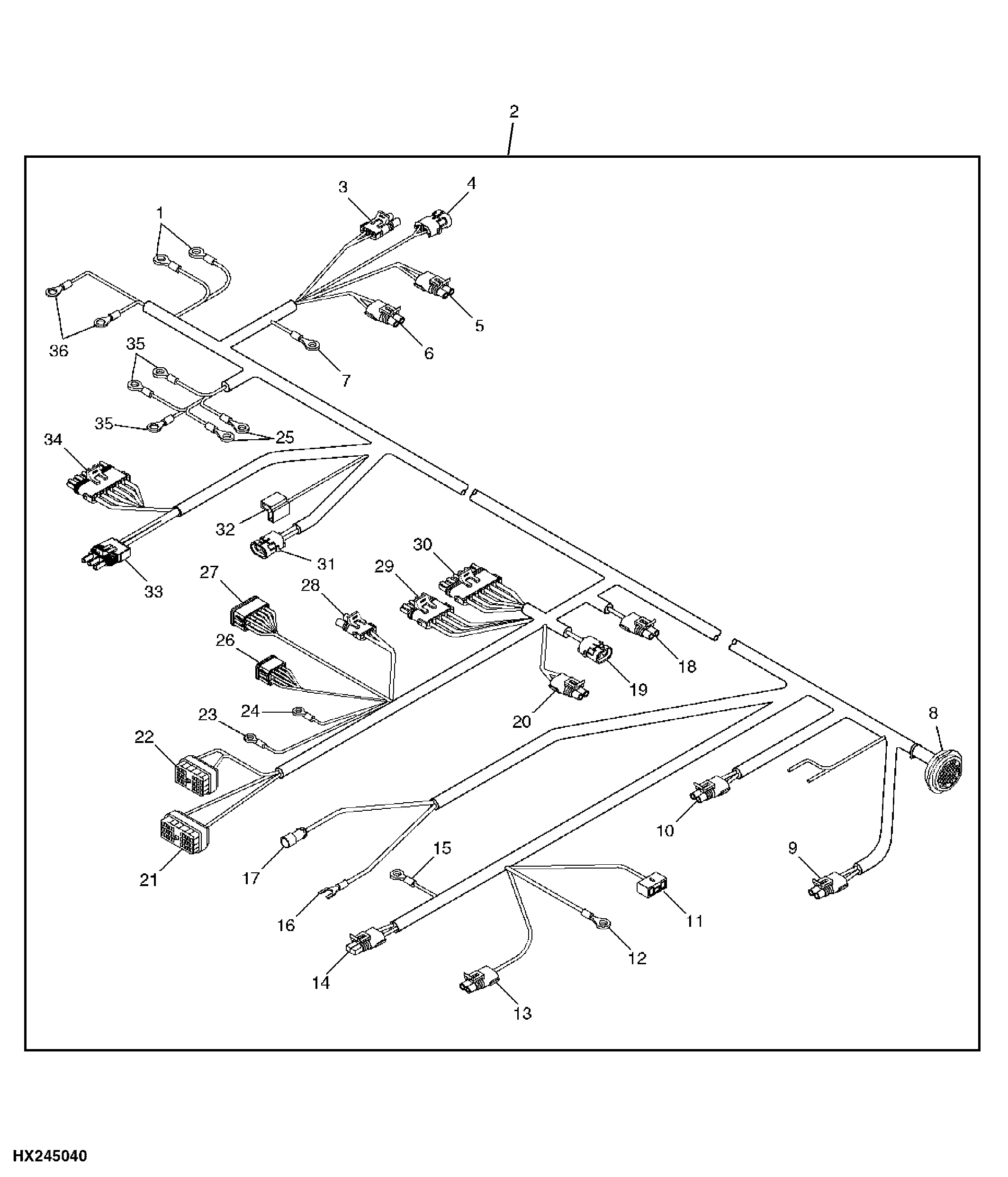

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7030	1	Elec. Connector Terminal	-
1	57M7118	2	Elec. Connector Terminal	START RELAY
2	AH173267	1	Wiring Harness	ENGINE
2	AH154195	1	Wiring Harness	ENGINE
3	-	1	Part 5	SEPERATOR ENGAGE
4	R78053	1	Electrical Connector Assy	SEPERATOR DRIVE PRESS
5	57M7850	1	Elec. Connector Housing	SEPERATOR DRIVE TEMPERATURE
5	R104701	1	Elec. Connector Terminal	-
6	57M7850	1	Elec. Connector Housing	ENGINE COOLANT SWITCH/SENSOR
6	R104701	1	Elec. Connector Terminal	-
7	R77489	3	Elec. Connector Terminal	SEPERATOR DRIVE FILTER
8	57M7667	1	Electrical Connector Assy	R.H. MAIN WIRING HARNESS
8	R78067	1	Elec. Connector Terminal	-
9	-	1	Part 14	A/C HIGH PRESS
10	R104701	1	Elec. Connector Terminal	-
10	57M7850	1	Elec. Connector Housing	INLET AIR TEMPERATURE
11	-	1	Part 17	GROUND
12	H104855	1	Electrical Connector Assy	ALTERNATOR FIELD
13	57M7850	1	Elec. Connector Housing	AUXILIARY ENGINE SPEED
13	R104701	1	Elec. Connector Terminal	-
14	57M7278	1	Elec. Connector Housing	FUEL TEMPERATURE (ILLUSTRATED)
14	R104701	1	Elec. Connector Terminal	-
15	R77489	1	Elec. Connector Terminal	FUEL SHUTOFF
16	R32017	1	Elec. Connector Terminal	A/C COMPRESSOR GROUND
17	57M7293	1	Elec. Connector Housing	A/C COMPRESSOR CLUTCH
18	-	1	Part 26	ENGINE AIR FILTER
19	R78053	1	Electrical Connector Assy	ENGINE SERVICE LIGHT
20	57M7850	1	Elec. Connector Housing	HYDRO OIL TEMPERATURE
20	R104701	1	Elec. Connector Terminal	-
21	57M7275	1	Elec. Connector Housing	ECU 1
21	R104701	1	Elec. Connector Terminal	-
22	57M7279	1	Elec. Connector Housing	ECU 2
22	R104701	1	Elec. Connector Terminal	-
23	57M7030	1	Elec. Connector Terminal	CONTROL POWER
24	57M7030	1	Elec. Connector Terminal	ECU
25	57M7118	2	Elec. Connector Terminal	MAIN GROUND
26	57M7696	1	Elec. Connector Housing	L.H. MAIN
26	R104846	1	Elec. Connector Terminal	-
26	57M7258	1	Elec. Connector Seal	-
26	57M7698	1	Elec. Connector Terminal	-
27	57M7634	1	Electrical Connector Assy	L.H. MAIN WIRING HARNESS
28	R78053	1	Electrical Connector Assy	WALKER PLUG SWITCH
29	RE12365	1	Electrical Connector Assy	DIAGNOSTIC CONNECTOR
29	R104701	1	Elec. Connector Terminal	-
30	R78056	1	Electrical Connector Assy	DIAGNOSTIC CONNECTOR
30	R78058	1	Elec. Connector Terminal	-
30	R78059	1	Elec. Connector Seal	-
31	R78053	1	Electrical Connector Assy	ENGINE OIL PRESS
32	R77479	1	Elec. Connector Terminal	START AID
33	RE21364	1	Connector	INJECTOR PUMP
34	RE12366	1	Electrical Connector Assy	INJECTOR PUMP
34	R104701	1	Elec. Connector Terminal	-
35	57M7572	3	Elec. Connector Terminal	MAIN GROUND
36	R32023	2	Elec. Connector Terminal	STARTER
