Air Conditioning Wiring Harness (695401 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7829	1	Elec. Connector Terminal	-
1	57M7813	1	Elec. Connector Housing	CAB AIR TEMPERATURE SENSOR
2	M47488	1	Elec. Connector Terminal	PRESSURIZER FAN
3	57M7254	1	Elec. Connector Housing	CORE TEMP PROBE
3	57M7289	1	Elec.Connect Locking Device	-
4	R78053	1	Electrical Connector Assy	LOW PRESSURE SWITCH
5	57M7813	1	Elec. Connector Housing	INLET AIR TEMP SENSOR
5	57M7829	1	Elec. Connector Terminal	-
6	-	1	Part 9	ARMREST
7	57M7286	1	Elec. Connector Terminal	-
7	R78062	1	Elec. Connector Seal	-
7	57M7807	1	Electrical Connector Assy	CAB MAIN CONNECTOR
8	57M7571	1	Elec. Connector Terminal	MAIN GROUND
9	M47488	1	Elec. Connector Terminal	AIR RIDE SEAT
10	57M7813	1	Elec. Connector Housing	OUTLET TEMP SENSOR
10	57M7829	1	Elec. Connector Terminal	-
11	-	1	Part 17	RECIRCULATING FAN MOTOR DRIVER
12	57M8206	1	Elec. Connector Housing	WATER VALVE
12	57M8210	1	Elec. Connector Terminal	-
12	R104701	1	Elec. Connector Terminal	-
13	AH211718	1	Wiring Harness	(SUB FOR AH201214) AIR CONDITIONING

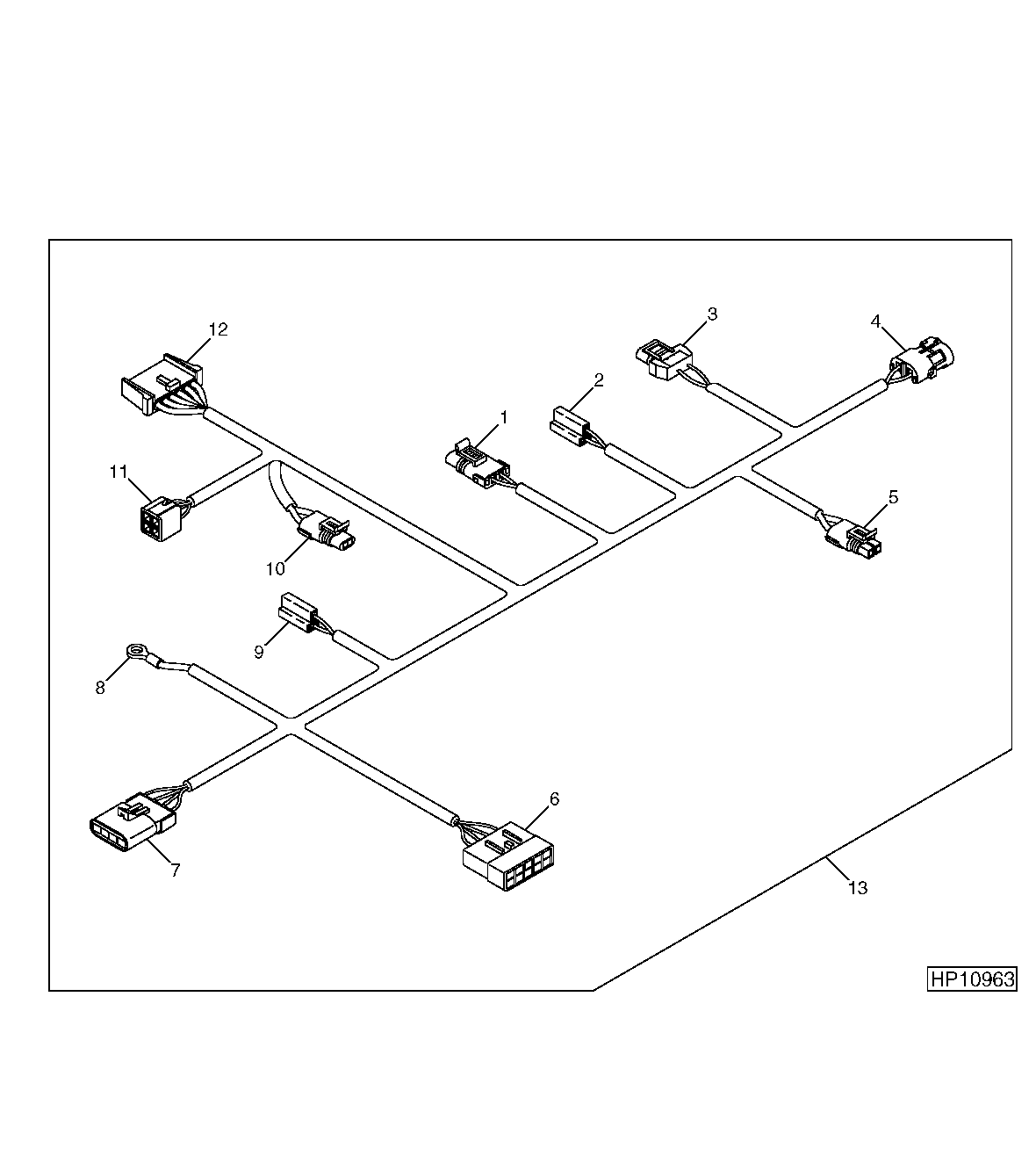

Air Conditioning Wiring Harness (695401 - )

Нет текстового описания
