Air Conditioning Wiring Harness ( - 695400)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8044	1	Elec. Connector Housing	CAB WALL CONNECTOR
2	57M7118	1	Elec. Connector Terminal	MAIN GROUNDS
2	57M7572	1	Elec. Connector Terminal	-
3	T106409	1	Electrical Connector Assy	CONVENIENCE OUTLET
4	57M7144	1	Elec. Connector Housing	AIR RIDE SEAT
5	-	1	Part 6	RECIRCULATING FAN MOTOR DRIVER
6	57M7813	1	Elec. Connector Housing	OUTLET TEMPERATURE SENSOR
6	57M7829	1	Elec. Connector Terminal	-
7	57M7813	1	Elec. Connector Housing	AMBIENT AIR TEMPERATURE SENSOR
7	57M7829	1	Elec. Connector Terminal	-
8	57M7538	1	Elec. Connector Housing	CAN BUS TERMINATOR
8	57M7291	1	Electrical Connector Assy	-
9	-	1	Part 13	CONTROL MODULE
10	57M7144	1	Elec. Connector Housing	PRESSURIZER FAN
11	57M7289	1	Elec.Connect Locking Device	-
11	57M7254	1	Elec. Connector Housing	CORE TEMPERATURE PROBE
12	R78053	1	Electrical Connector Assy	LOW PRESSURE SWITCH
13	57M7813	1	Elec. Connector Housing	INLET AIR TEMPERATURE CONNECTOR
13	57M7829	1	Elec. Connector Terminal	-
14	ET15766	1	Elec. Connector Housing	PRESSURIZER FAN RELAY
14	AH201526	1	Relay	-
14	M75140	1	Clip	-
15	RE12363	1	Electrical Connector Assy	DIAGNOSTIC SELECT
16	-	1	Part 24	WATER VALVE
17	-	1	Part 25	CAB MAIN
18	Z55272	1	Electrical Plug	ARMREST CAN BUS
19	57M7919	1	Elec. Connector Housing	CAN BUS DIAGNOSTIC
19	57M7923	1	Elec. Connector Terminal	-
20	RE70773	1	Electronic Terminator	TERMINATOR
21	AH170162	1	Wiring Harness	(SUB FOR AH166144) AIR CONDITIONING

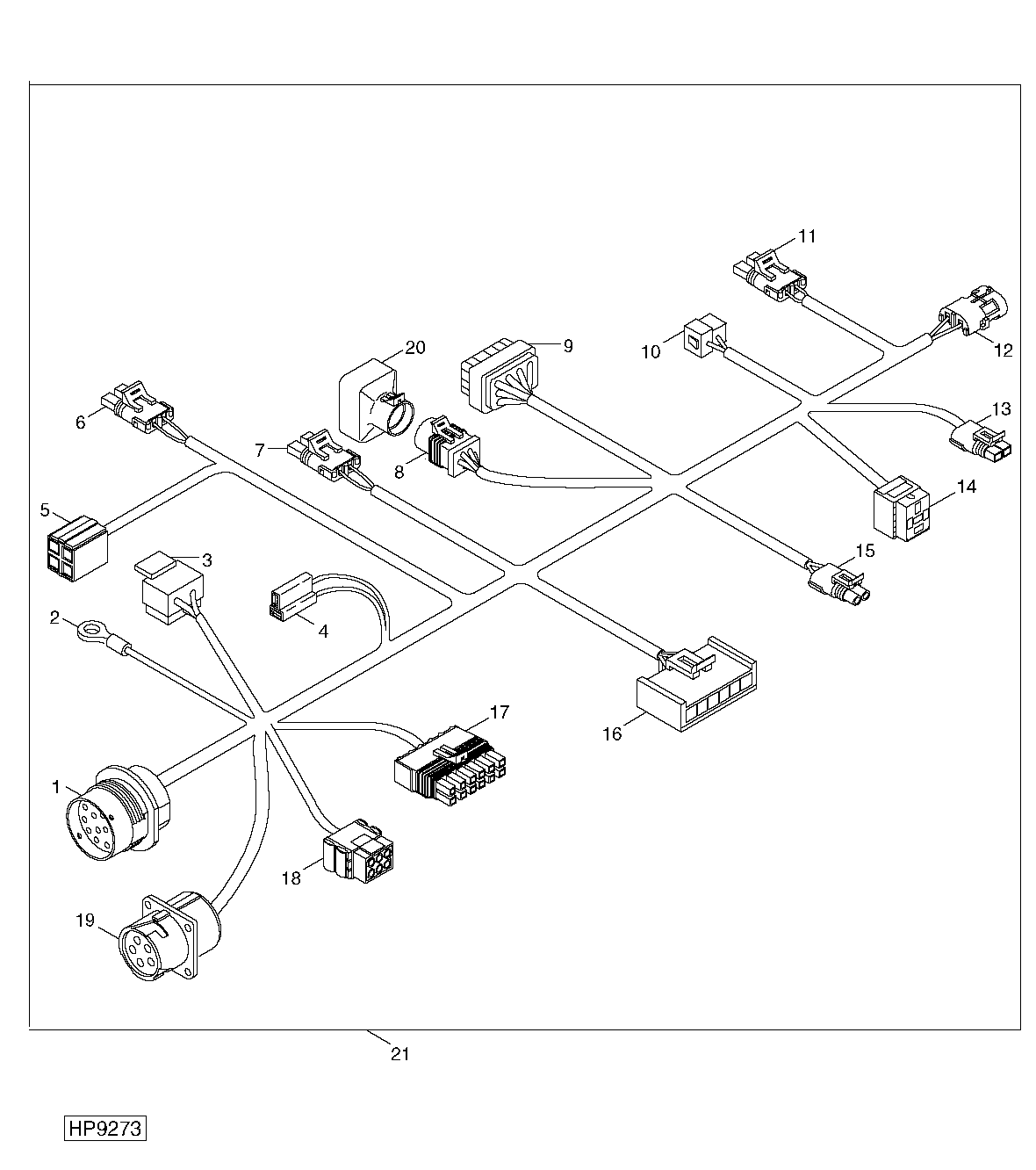

Air Conditioning Wiring Harness ( - 695400)

Нет текстового описания
