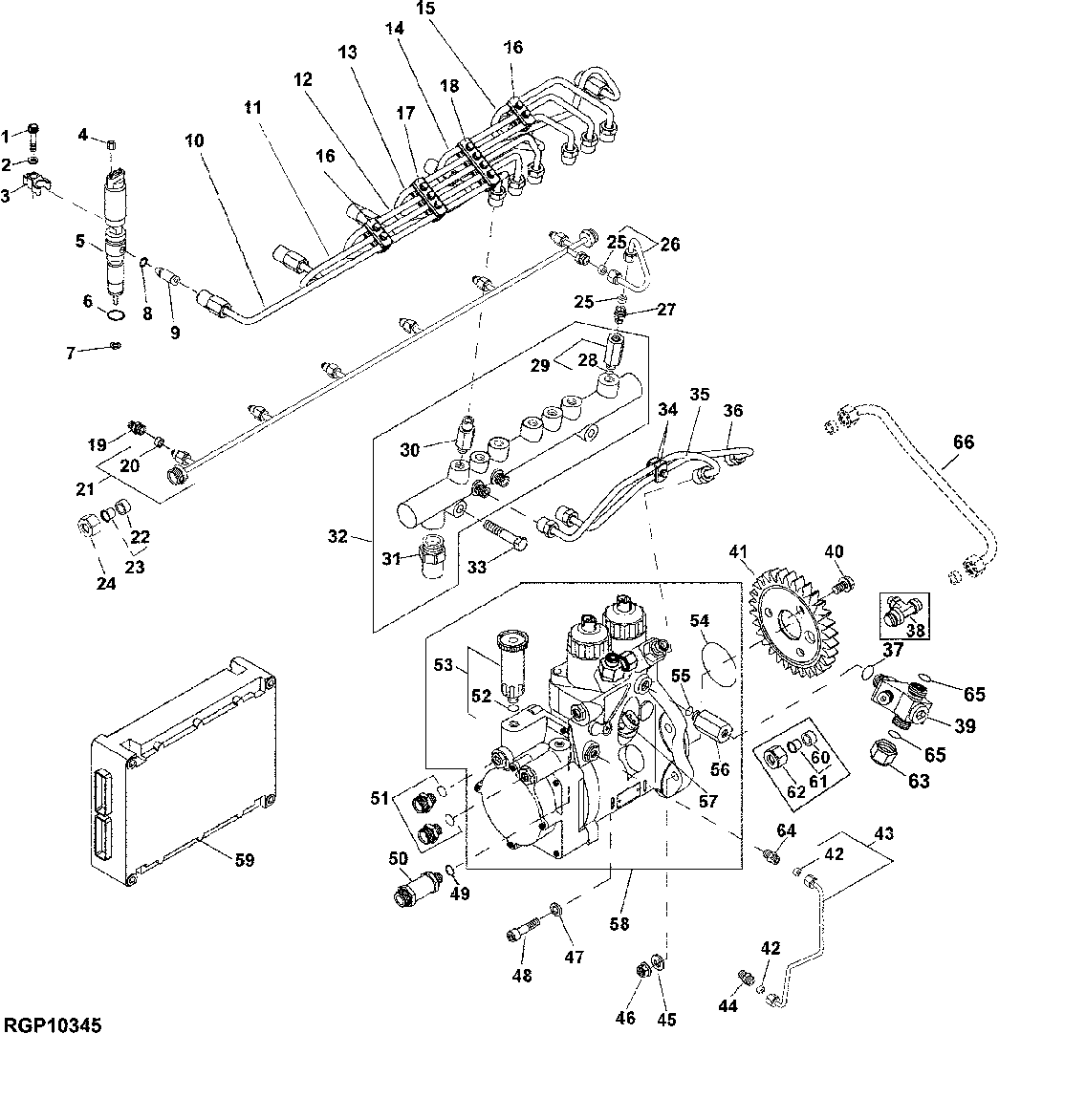

1650 Fuel Injection Pump, Lube Line and Engine Controller

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3218	6	Cap Screw	3/8" X 1-3/4"
2	R63845	6	Washer	-
3	R502602	6	Clamp	-
4	R134920	12	Nut	-
5	RE518725	6	Injection Nozzle	5160, YELLOW DOT ORDER RE524362
5	RE524362	6	Injection Nozzle	INCLUDES R135526, R134920, R503578, R131051 AND RE509416
6	R503578	1	O-Ring	-
7	R131051	6	Washer	-
8	R135526	6	O-Ring	(SUB FOR R505570, THIS APPLICATION)
9	RE509416	6	Fitting	-
10	RE515524	1	Fuel Line	NO.6
11	RE504017	1	Fuel Line	NO.5
12	RE504016	1	Fuel Line	NO.4
13	RE504015	1	Fuel Line	NO.3
14	RE504014	1	Fuel Line	NO.2
15	RE504013	1	Fuel Line	NO.1
16	RE502655	2	Clamp	(ALSO ORDER (2) 12M7064 AND (2) 19M7373)
17	RE509012	1	Clamp	ALSO ORDER (3) 12M7064 AND (3) 19M7373
18	RE509013	1	Clamp	(ALSO ORDER (4) 12M7064 AND (4) 19M7373)
19	RE502650	6	Fitting	-
20	R505620	6	Washer	-
21	RE506982	1	Fuel Line	-
21	RE521476	1	Manifold	(INCLUDES (2) R63548)
22	R63551	1	Sealing Washer	-
23	RE507270	1	Plug	-
24	R63552	1	Tube Nut	-
24	38H1415	1	Fitting	-
25	R51936	2	Sealing Washer	-
26	RE507003	1	Line	INCLUDES (2) R51936
27	RE506624	1	Adapter Fitting	-
28	R515454	1	Shim	-
29	RE516335	1	Pressure Relief Valve	-
30	RE515636	6	Restrictor	-
31	RE520930	1	Sensor	SUB FOR RE515635
32	RE521433	1	Rail	SUB FOR RE516676
33	19H2699	2	Cap Screw	7/16" X 2-1/4"
34	RE502654	1	Clamp	-
35	RE505155	1	Fuel Line	-
36	RE505154	1	Fuel Line	-
37	R505570	1	O-Ring	-
37	R519759	1	O-Ring	-
38	RE515820	1	Elbow Fitting	-
39	RE522834	1	Valve	(INCLUDES R519759, R77175, (2) R63548 ) (SUB FOR RE521094)
39	R77175	1	Cover	DUST
40	19M7783	3	Screw	M10 X 16
41	R504089	1	Gear	-

1650 Fuel Injection Pump, Lube Line and Engine Controller
