UNIVERSAL JOINT SHAFT-CUTTING PLATFORM 14FT,16FT [04C19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

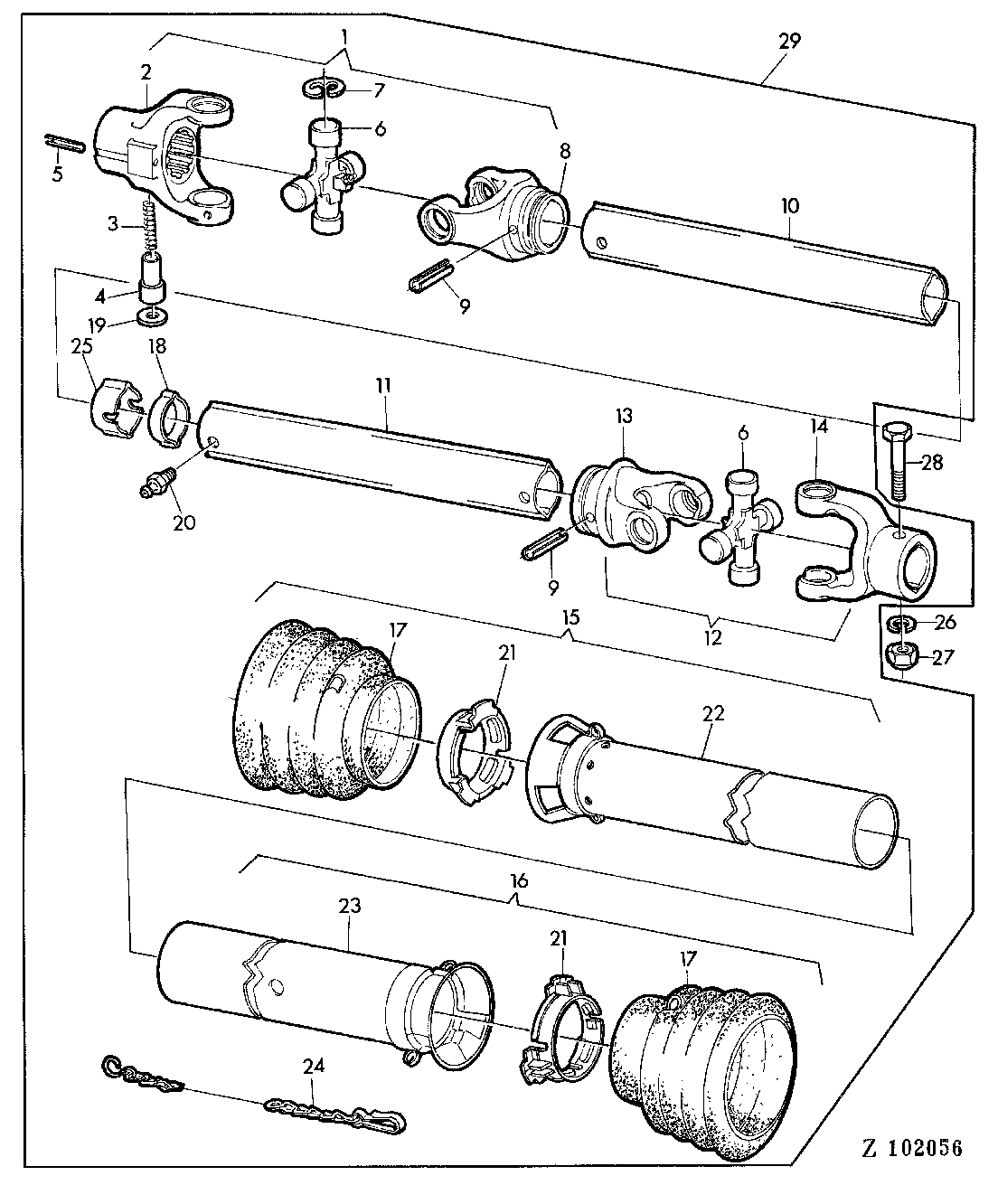

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ29405	1	UNIVERSAL DRIVESHAFT	INCL KEYS 2-8
2	AZ24657	1	UNIVERSAL JOINT YOKE	INCL KEYS 3-5
3	Z39884	1	SPRING	-
4	Z39886	1	LATCH	-
5	34M7098	1	Spring Pin	4 X 26 MM
6	AZ24656	2	Spider	W/ KEY 7
7	Z35676	8	SNAP RING	-
8	Z39891	1	YOKE	-
9	34M6446	2	Spring Pin	10 X 75 MM
10	Z39866	1	TUBE	14', LGTH = 640 MM
10	Z39869	1	TUBE	16', LGTH = 940 MM
11	Z39867	1	TUBE	14', LGTH = 630 MM
11	Z39868	1	TUBE	16', LGTH = 915 MM
12	AZ29408	1	UNIVERSAL JOINT	INCL KEYS 6,13,14
13	Z39890	1	Universal Joint Yoke	-
14	Z35677	1	UNIVERSAL JOINT YOKE	-
15	AZ29393	1	GUARD	14', INCL KEYS 17,21,22
15	AZ29396	1	GUARD	16', INCL KEYS 17,21,22
16	AZ29392	1	GUARD	14', INCL KEYS 17,21,23
16	AZ29397	1	GUARD	16', INCL KEYS 17,21,23
17	Z39882	2	POWERSHAFT SHIELD	-
18	Z39889	1	RING	-
19	Z39885	1	WASHER	-
20	Z39887	1	LUBRICATION FITTING	M5
21	Z39883	2	RING	-
22	Z39877	1	POWERSHAFT SHIELD	14', LGTH = 540 MM
22	Z39879	1	POWERSHAFT SHIELD	16', LGTH = 820 MM
23	Z39876	1	POWERSHAFT SHIELD	14', LGTH = 585 MM
23	Z39878	1	POWERSHAFT SHIELD	16', LGTH = 870 MM
24	Z35679	1	Link Chain	-
25	Z39888	1	COVER	-
26	12M7008	1	LOCK WASHER	8 MM
27	14M7166	1	Lock Nut	M8
28	19M7663	1	Cap Screw	M8 X 70
29	AZ29372	1	UNIVERSAL JOINT	14', INCL KEYS 1-25 (SUB FOR AZ25159)
29	AZ29375	1	UNIVERSAL DRIVESHAFT	16', INCL KEYS 1-25 (SUB FOR AZ24651)
..	AZ29373	1	UNIVERSAL JOINT	14', INCL KEYS 1,9,10,15
..	AZ29374	1	UNIVERSAL JOINT YOKE	14', INCL KEYS 9,11,12,16,18,20,25
..	AZ29376	1	UNIVERSAL JOINT	16', INCL KEYS 1,9,10,15
..	AZ29377	1	UNIVERSAL JOINT	16', INCL KEYS 9,11,12,16,18,20,25
