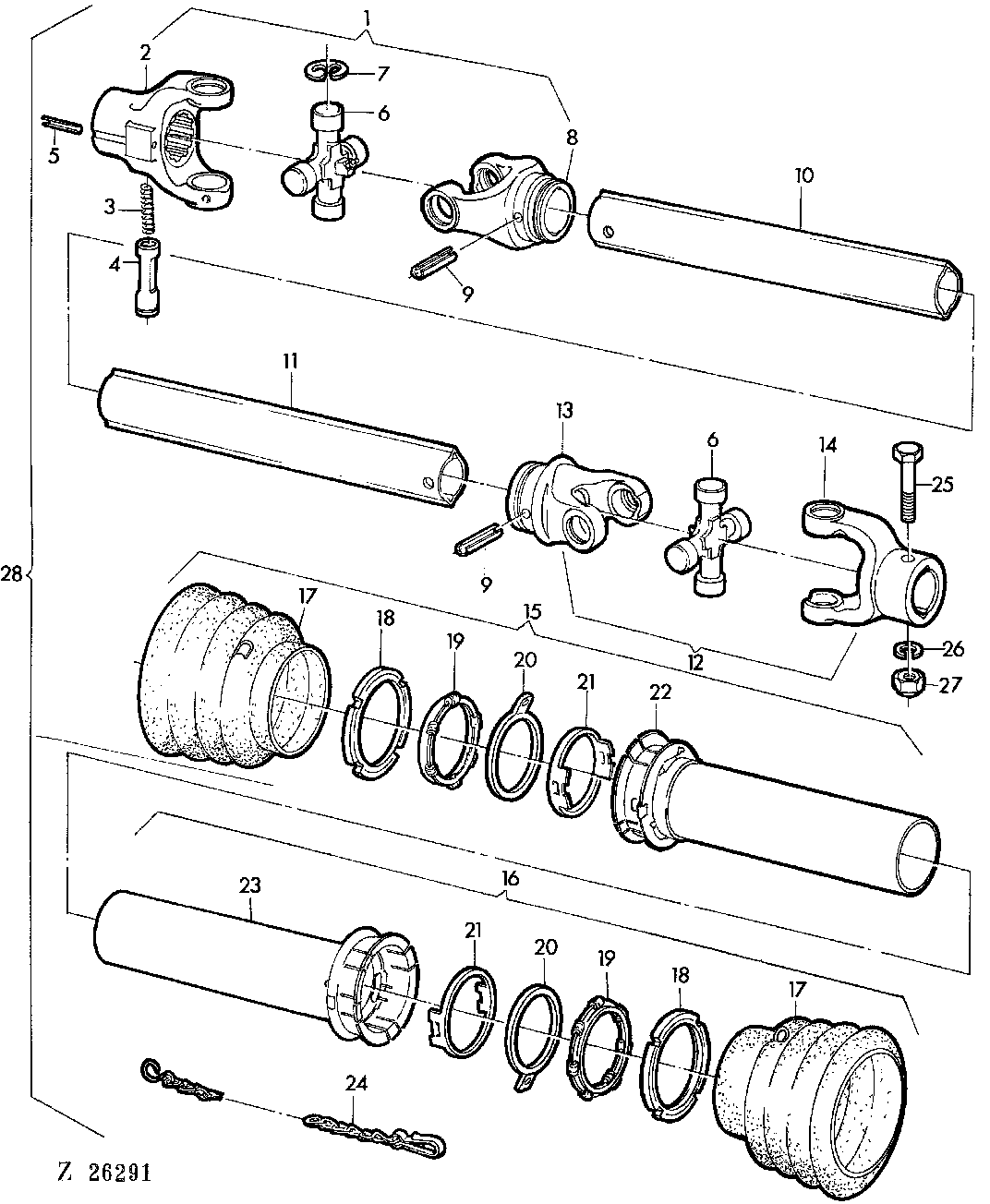

UNIVERSAL JOINT SHAFT-CUTTING PLATFORM 14FT,16FT [04C13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ24654	1	UNIVERSAL JOINT	INCL KEYS 2-8
2	AZ24657	1	UNIVERSAL JOINT YOKE	INCL KEYS 3-5
3	L18961	1	SPRING	-
4	Z35678	1	LATCH	-
5	34M7098	1	Spring Pin	M4 X 26
6	AZ24656	2	Spider	W/ KEY 7
7	Z35676	8	SNAP RING	-
8	Z35674	1	YOKE	-
9	34M7073	2	Spring Pin	M10 X 65
10	Z35672	1	SHAFT	16', LGTH = 800 MM
10	Z36172	1	SHAFT	14', LGTH = 655 MM
11	Z36175	1	SHAFT	14', LGTH = 640 MM
11	Z35673	1	SHAFT	16', LGTH = 935 MM
12	AZ24655	1	UNIVERSAL JOINT	INCL KEYS 6,13,14
13	Z35675	1	YOKE	-
14	Z35677	1	UNIVERSAL JOINT YOKE	-
15	AZ25162	1	GUARD	14', INCL KEYS 17-22
15	AZ24658	1	GUARD	16', INCL KEYS 17-22
16	AZ24559	1	GUARD	16', INCL KEYS 17-21,23
16	AZ25165	1	GUARD	14', INCL KEYS 17-21,23
17	Z35680	2	BOOT	-
18	Z35681	2	RING	-
19	Z35682	2	BALL BEARING	-
20	Z35683	2	RING	-
21	Z35684	2	RING	-
22	Z36178	1	SLEEVE	14', LGTH = 585 MM
22	Z35685	1	SLEEVE	16', LGTH = 730 MM
23	Z36181	1	SLEEVE	14', LGTH = 585 MM
23	Z35686	1	SLEEVE	16', LGTH = 880 MM
24	Z35679	1	Link Chain	-
25	19M7663	1	Cap Screw	M8 X 70
26	12M7008	1	LOCK WASHER	8 MM
27	14M7166	1	Lock Nut	M8
28	AZ25159	1	UNIVERSAL JOINT	14', INCL KEYS 1-24 (ORD AZ29372)
28	AZ24651	1	UNIVERSAL JOINT	16', INCL KEYS 1-24 (ORD AZ29375)
..	AZ25168	1	UNIVERSAL JOINT	14', ASSY, INCL KEYS 1-10,17-22
..	AZ25171	1	UNIVERSAL JOINT	14', ASSY, INCL KEYS 11-14,17-21,23
..	AZ24652	1	UNIVERSAL JOINT	16', ASSY, INCL KEYS 1-10,17-22
..	AZ24653	1	UNIVERSAL JOINT	16', ASSY, INCL KEYS 11-14,17-21,23
