UNIVERSAL JOINT SHAFT-CUTTING PLATFORM 12FT [04C09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

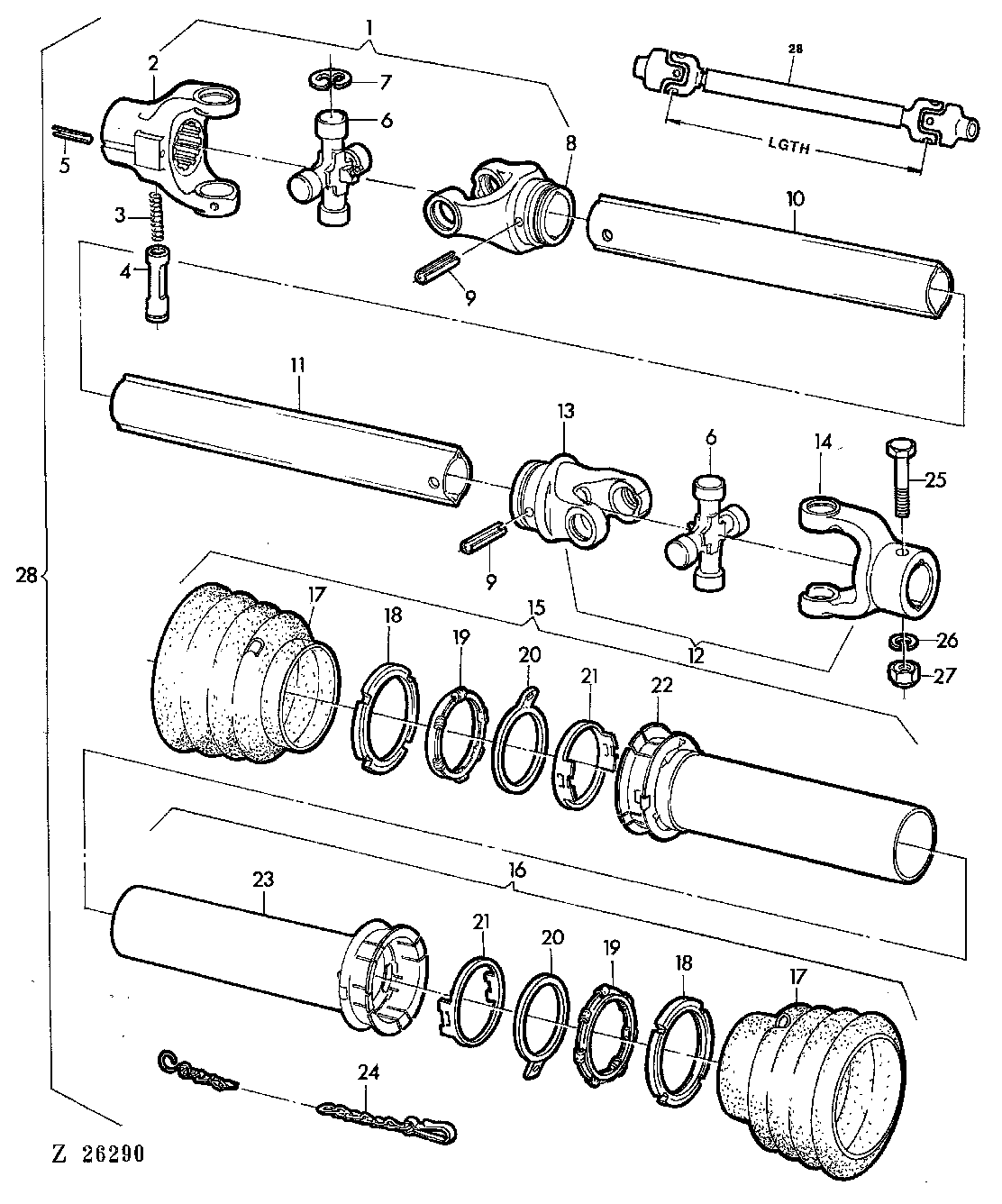

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ24654	1	UNIVERSAL JOINT	(A) (B) INCL KEYS 2-8
2	AZ24657	1	UNIVERSAL JOINT YOKE	(A) (B) INCL KEYS 3-5
3	L18961	1	SPRING	(A) (B)
4	Z35678	1	LATCH	(A) (B)
5	34M7098	1	Spring Pin	(A) (B) 4 X 26 MM
6	AZ24656	2	Spider	(A) (B) W/ KEY 7
7	Z35676	8	SNAP RING	(A) (B)
8	Z35674	1	YOKE	(A) (B)
9	34M7073	2	Spring Pin	(A) (B) 10 X 65 MM
10	Z38193	1	SHAFT	(B) LGTH = 450 MM
10	Z36171	1	SHAFT	(A) LGTH = 365 MM
11	Z36174	1	SHAFT	(A) LGTH = 350 MM
11	Z38192	1	TUBE	(B) LGTH = 440 MM
12	AZ24655	1	UNIVERSAL JOINT	(A) (B) INCL KEYS 6,13,14
13	Z35675	1	YOKE	(A) (B)
14	Z35677	1	UNIVERSAL JOINT YOKE	(A) (B)
15	AZ25161	1	GUARD	(A) INCL KEYS 17-22
15	AZ27336	1	GUARD	(B) INCL KEYS 17-22
16	AZ27335	1	GUARD	(B) INCL KEYS 17-21,23
16	AZ25164	1	GUARD	(A) INCL KEYS 17-21,23
17	Z35680	2	BOOT	(A) (B)
18	Z35681	2	RING	(A) (B)
19	Z35682	2	BALL BEARING	(A) (B)
20	Z35683	2	RING	(A) (B)
21	Z35684	2	RING	(A) (B)
22	Z36177	1	SLEEVE	(A) LGTH = 295 MM
22	Z38195	1	SLEEVE	(B) LGTH = 380 MM
23	Z36180	1	SLEEVE	(A) LGTH = 295 MM
23	Z38194	1	SLEEVE	(B) LGTH = 385 MM
24	Z35679	1	Link Chain	(A) (B)
25	19M7663	1	Cap Screw	(A) (B) M8 X 70
26	12M7008	1	LOCK WASHER	(A) (B) 8 MM
27	14M7166	1	Lock Nut	(A) (B) M8
28	AZ25158	1	UNIVERSAL JOINT	INCL KEYS 1-24, LGTH = 485 MM (ORD AZ29369)
28	AZ27338	1	UNIVERSAL JOINT	INCL KEYS 1-24, LGTH = 575 MM (ORD AZ29366)
..	AZ25167	1	UNIVERSAL JOINT	(A) INCL KEYS 1-10,17-22
..	AZ25170	1	UNIVERSAL JOINT	(A) INCL KEYS 6,9,11-14,17-21,23
..	AZ27340	1	UNIVERSAL JOINT	(B) INCL KEYS 1-10,17-22
..	AZ27341	1	UNIVERSAL JOINT	(B) INCL KEYS 6,9,11-14,17-21,23

UNIVERSAL JOINT SHAFT-CUTTING PLATFORM 12FT [04C09]
