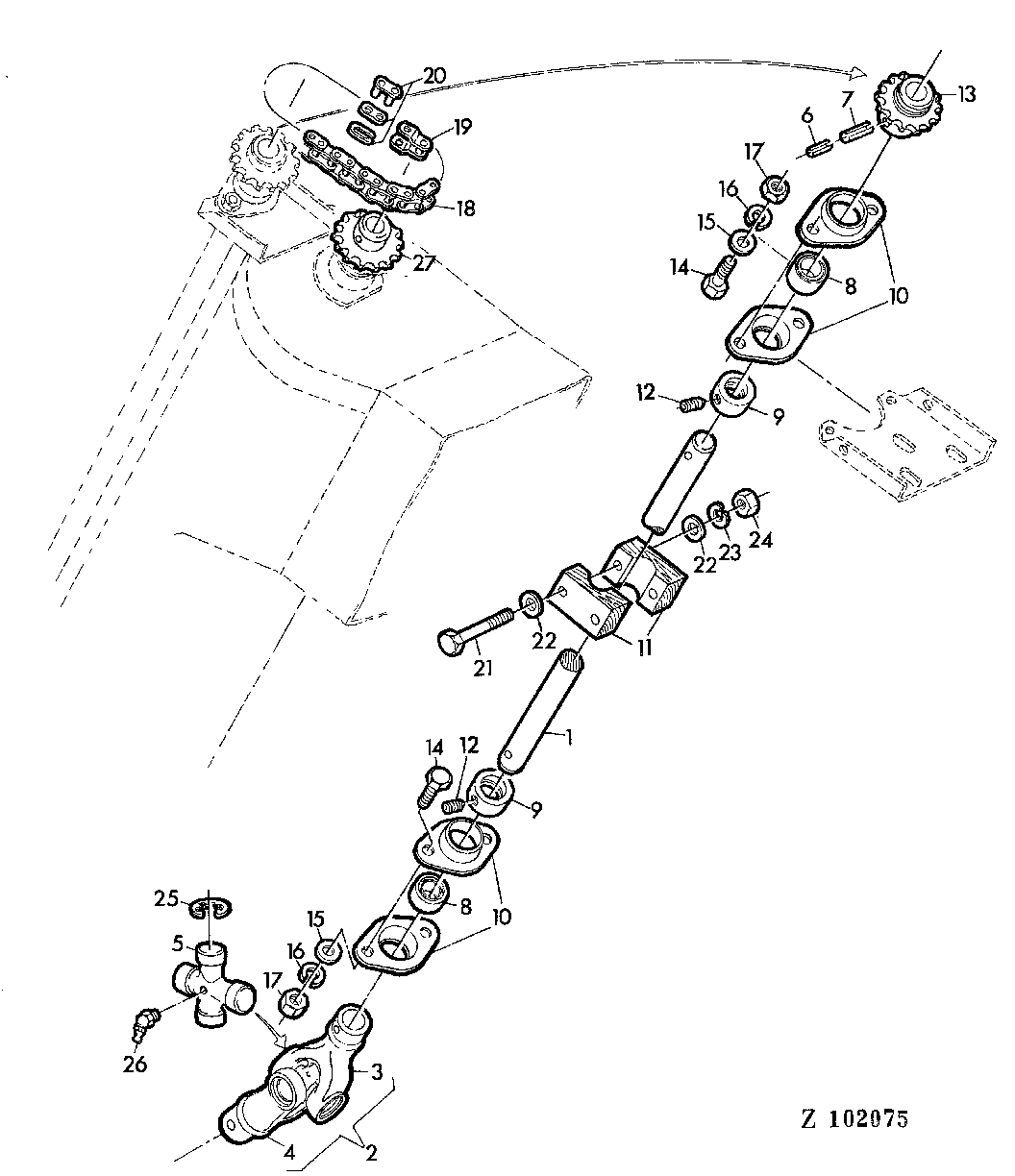

DRIVE FOR HYDRAULIC UNLOADING AUGER [04I23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	Z33528	1	SHAFT	(ORD AZ38318, Z11683, Z48034, 34M7048, 34M7050)
2	AZ22438	1	UNIVERSAL JOINT	ASSY, INCL KEYS 3-5,25,26 (ORD AZ32225)
2	AZ32225	1	UNIVERSAL JOINT	INCL KEYS 3-5,25,26 (SUB FOR AZ28867)
2	AZ28867	1	UNIVERSAL JOINT	INCL KEYS 3-5,25,26 (ORD AZ32224)
3	Z10854	1	UNIVERSAL JOINT YOKE	-
3	Z11457	1	UNIVERSAL JOINT YOKE	(FOR AZ32225)
3	Z11268	1	UNIVERSAL JOINT YOKE	(FOR AZ28867)
4	Z10948	1	UNIVERSAL JOINT YOKE	-
4	Z11456	1	UNIVERSAL JOINT YOKE	(FOR AZ32225)
4	Z11269	1	UNIVERSAL JOINT YOKE	(FOR AZ28867)
5	AZ28866	1	SPIDER	(FOR AZ28867)
5	AZ32226	1	SPIDER	(FOR AZ32225)
5	AZ21542	1	SPIDER	-
6	34M7043	2	Spring Pin	6 X 45 MM
7	34M7070	2	Spring Pin	10 X 45 MM
8	JD39103	2	BALL BEARING	-
9	AZ10045	2	Eccentric Locking Collar	INCL KEY 12
10	Z30026	4	PRESSED FLANGED HOUSING	-
11	Z33527	2	BEARING	-
12	AZ19844	2	SET SCREW	KIT
13	Z11152	1	CHAIN SPROCKET	Z = 18
14	19M7166	4	Cap Screw	M10 X 20
15	24M7040	4	Washer	11 MM
16	12M7013	4	LOCK WASHER	10 MM
17	14M7140	4	Nut	M10
18	AZ26761	1	LINK CHAIN	L = 37, INCL KEYS 19,20
18	AZ36600	1	ROLLER CHAIN	(A) L = 36, INCL KEYS 19,20 (SUB FOR AZ32303)
19	AL14908	1	CHAIN LINK	(FOR AZ32303)
19	AZ36221	1	CHAIN LINK	(FOR AZ36600)
20	AL14211	1	CHAIN LINK	(FOR AZ32303)
20	AZ36220	1	CHAIN LINK	(FOR AZ36600)
21	19M7270	2	Cap Screw	M8 X 65
22	24M7036	4	Washer	9 MM
23	12M7008	2	LOCK WASHER	8 MM
24	14M7029	2	Nut	M8
25	Z32725	1	SNAP RING	(FOR AZ28867)
25	Z43195	1	SNAP RING	(FOR AZ32225)
26	58M5577	1	Lubrication Fitting	(FOR AZ28867)
26	58M7010	1	Lubrication Fitting	(FOR AZ32225)
27	Z11151	1	CHAIN SPROCKET	Z = 16 (SUB FOR Z37903)
27	Z11434	1	CHAIN SPROCKET	(A) Z = 13
