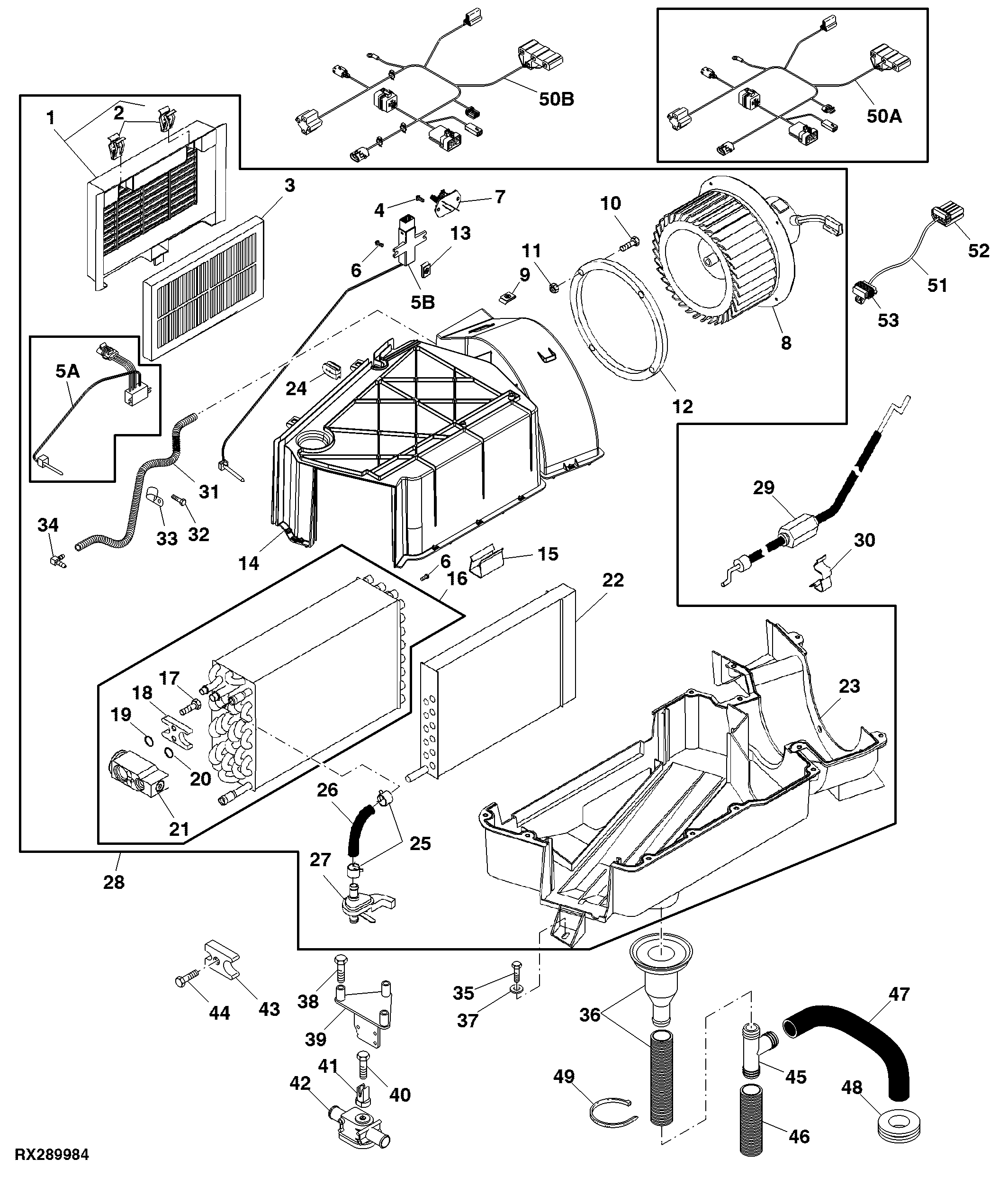

HEATER/AIR CONDITIONING MODULE ASSEMBLY

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE163675	1	Bezel	-
2	R120160	2	Clip	-
3	RE187966	1	Air Filter	-
4	H85092	2	Screw	-
6	37M7073	6	Screw	-
7	RE49636	1	Resistor	-
8	RE300527	1	Fan	(SUB FOR RE208336)
9	M74782	4	Nut	-
10	T178251	4	Cap Screw	-
11	M84972	4	Nut	-
12	R162769	1	Seal	-
13	R50279	2	Nut	-
14	R190722	1	Housing	-
15	R96248	11	Clip	-
16	RE327083	1	Evaporator	(SUB FOR RE292236)
17	PT11778	2	Bolt	-
18	L77943	1	Plate	-
19	R113050	1	O-Ring	-
20	R33259	1	O-Ring	-
21	RE283957	1	Valve	(USE WITH RE286345) (SUB FOR RE174764)
22	RE327075	1	Heater	(SUB FOR RE292238)
23	R244664	1	Housing	-
24	R163985	2	Grommet	-
25	T184924	1	Hose Clamp	-
26	R125454	1	Radiator Hose	-
27	RE263090	1	Valve	(WATER) (USE WITH RE286340 ) (SUB FOR AT193500, THIS APPLICATION)
28	RE327073	1	Module	(SUB FORRE286340)
29	RE58614	1	Push Pull Cable	-
30	L57881	1	Clip	-
31	R220514	1	Line	-
32	T184620	1	Screw	-
33	R222727	1	Hose Clamp	-
34	R237040	1	Hose Fitting	-
35	37M7091	3	Screw	M6 X 25
36	RE220511	1	Line	-
37	24M7100	3	Washer	6.600 X 22 X 2 mm
38	R168496	5	Screw With Washer	-
39	R154321	1	Bracket	-
40	H110842	1	Screw	-
41	R154320	1	Adapter	-
42	RE154318	1	Valve	(WATER)
43	R125223	1	Plate	-
44	19M8666	1	Screw	M6 X 16
45	R115893	1	Tee Fitting	-
46	R281358	1	Line	(SUB FOR R220513)
47	R222176	1	Hose	-
48	R115350	1	Grommet	-
49	R44302	4	Tie Band	-
51	RE313022	1	Wiring Harness	(USE WITH RE227764 AND RE313761)
52	57M10452	1	Elec. Connector Housing	-
53	57M7281	1	Elec.Connect Locking Device	-
53	57M7290	1	Elec. Connector Accessory	-
5A	RE244318	1	Switch	(SUB RE313761 ) (ALSO ORDER RE313022)
5B	RE313761	1	Thermostat	-
50A	RE227764	1	Wiring Harness	(USE WITH RE244318 ) (SUB RE313207)
50B	RE313207	1	Wiring Harness	(USE WITH RE313761)

HEATER/AIR CONDITIONING MODULE ASSEMBLY

Нет текстового описания
