Открытый узел

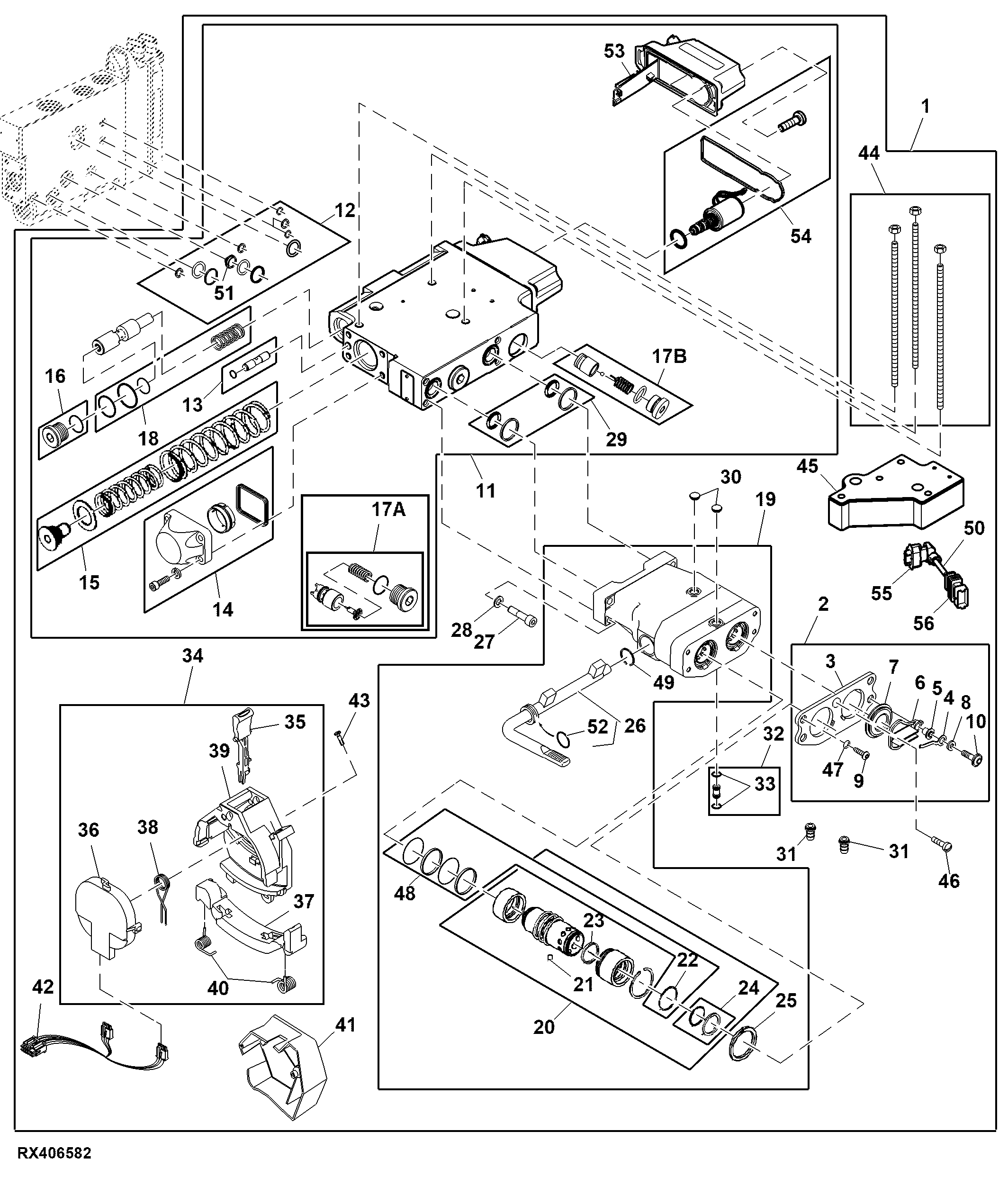

Attachment, Valve, 5th/ 6th Rear SCV (911000 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE343868	1	Selective Control Valve	6th SCV
1	RE343867	1	Selective Control Valve	5th SCV
1	RE343869	1	Selective Control Valve	6th SCV
2	RE262420	1	Cover	-
3	R309935	1	Retainer	SUB FOR R262311, ORDER RE262420
4	R124008	2	Spring	-
5	R124009	2	Bushing	-
6	R209409	2	Valve Cover	ORDER RE262420
7	R209748	2	Seal	ORDER RE262420
8	R213093	2	Push Nut	-
9	21M7500	2	Screw	M6 X 12
10	19M8875	2	Screw	M6 X 25
11	RE260572	1	Selective Control Valve	-
11	RE588375	1	Selective Control Valve	SUB FOR RE580227 OR RE308284
12	RE582808	1	Seal Kit	SUB FOR RE279692
13	RE279693	1	Valve Kit	USE WITH RE308284
14	RE279694	1	Cap Kit	-
15	RE279695	1	Spring Kit	USE WITH RE308284
15	RE568184	1	Spring Kit	USE WITH RE588375 OR RE580227
16	RE279696	1	Plug Kit	-
18	RE279699	1	Spring Kit	USE WITH RE308284
18	RE568186	1	Spring Kit	USE WITH RE588375 OR RE580227
19	RE559660	1	Breakaway Coupler	6th SCV SUB FOR RE262016
19	RE559661	1	Breakaway Coupler	5th SCV SUB FOR RE262017
20	RE577560	2	Breakaway Coupler	SUB FOR RE256693
21	R107859	20	Ball	-
22	-	2	Part 30	-
23	R222761	2	O-Ring	-
24	RE186599	2	Seal	-
25	R186598	2	Snap Ring	-
26	RE271733	1	Lever	Coupler Eject Handle
27	R266977	5	Socket Head Screw	-
28	24M7095	5	Washer	8.400 X 15 X 1.600 mm
29	RE281895	1	Seal Kit	-
30	R267667	2	Cap	-
31	R267668	2	Hose Fitting	6th SCV
32	RE272882	2	Tube	-
33	R10093	4	O-Ring	-
34	AR114522	1	SCV Controller	ORDER RE216530, RE267676, R125878, R125879, R171535 AND (2) R217571
35	RE216530	1	Lever	-
36	RE267676	1	Potentiometer	-
37	R125878	1	Arm	-
38	R125879	1	Torsion Spring	-
39	R171535	1	Bracket	-
40	R217571	2	Torsion Spring	-
41	R162126	1	Housing	-
42	RE223879	1	Cab Wiring Harness	-
43	R115850	2	Screw	-
44	RE304819	1	Stud Kit	6th SCV
44	RE283444	1	Stud Kit	5th SCV W/Hitch
44	RE283443	1	Stud Kit	5th SCV W/O Hitch
44	RE304830	1	Stud Kit	USE WITH RE343869
45	RE283453	1	Manifold	6th SCV
46	L157882	1	Plug	5th SCV
46	L171761	1	Plug	6th SCV
47	-	2	Part 59	-
48	RE186600	2	Seal	-
49	R207188	1	Ring	-
50	RE343006	1	Wiring Harness	-
51	R540643	1	Valve	-
52	R27564	1	O-Ring	-
53	RE567656	1	Electronic Control Unit	USE WITH RE308284
53	RE567604	1	Electronic Control Unit	USE WITH RE580227
53	RE588373	1	Electronic Control Unit	USE WITH RE588375
54	RE580941	1	Valve Kit	SUB FOR RE341710
55	57M9498	1	Elec. Connector Housing	-
56	57M9500	1	Elec. Connector Accessory	-
57	RE567655	1	Electronic Control Unit	Not Illustrated USE WITH RE260572
58	RE341709	1	Valve Kit	Not Illustrated USE WITH RE260572
17A	RE279697	1	Valve Kit	Load Check Valve USE WITH RE308284
17A	RE568185	1	Check Valve	Load Check Valve ORDER RE591268
17B	RE591268	1	Check Valve	Load Check Valve USE WITH RE588375 OR RE580227

Attachment, Valve, 5th/ 6th Rear SCV (911000 - )
