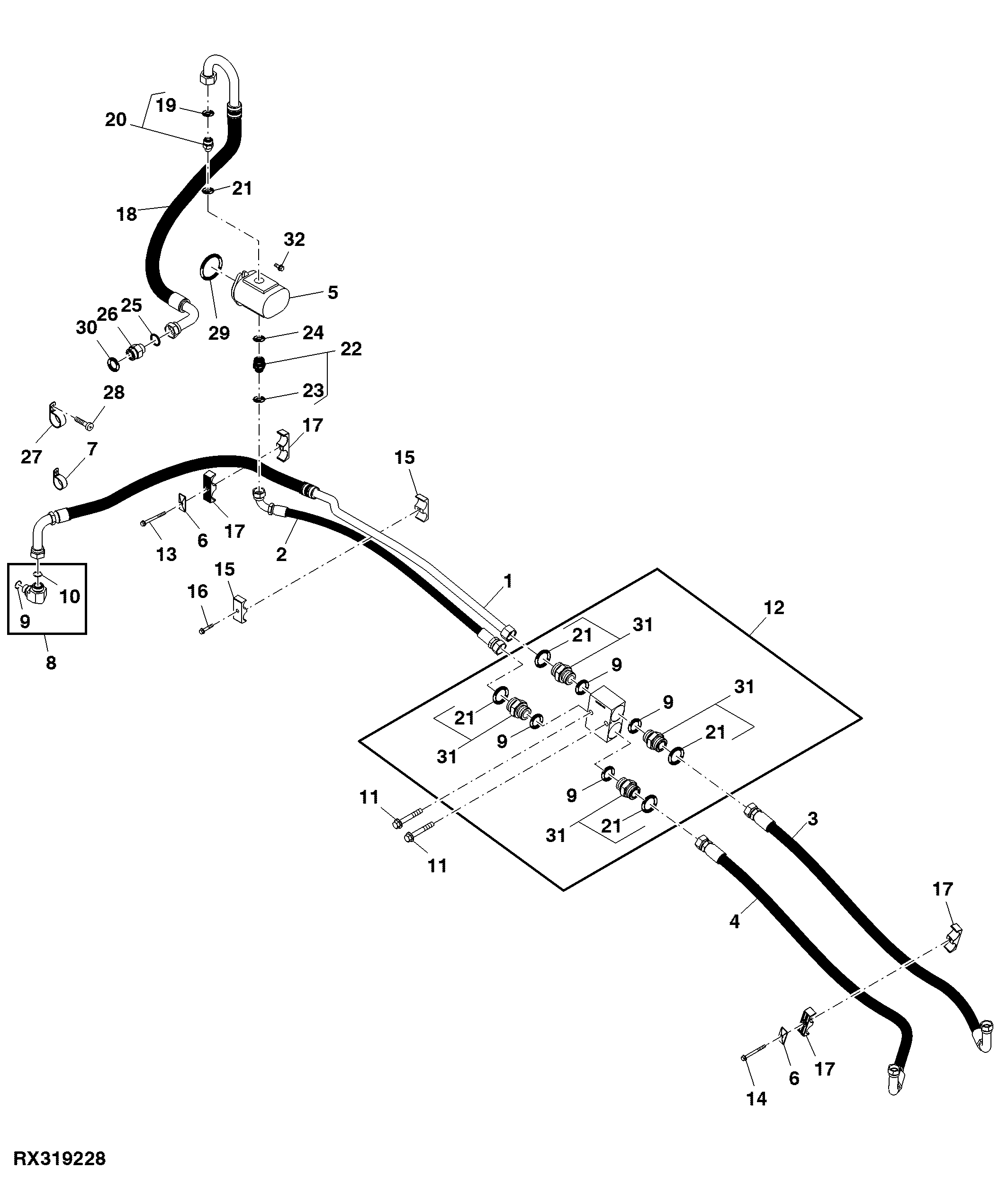

Transmission Cooler Lines (011310 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE290630	1	Hydraulic Hose	Transmission Cooler Return
2	RE291693	1	Hydraulic Hose	Transmission Cooler Supply, High Flow
2	RE291692	1	Hydraulic Hose	Transmission Cooler Supply, Standard Flow
3	RE272395	1	Hydraulic Hose	Transmission Cooler, Outlet Front
4	RE260057	1	Hydraulic Hose	Transmission Cooler, Inlet Front
5	RE305639	1	Hydraulic Pump	-
6	H112567	2	Plate	-
7	AH77714	1	Clip	-
8	38H1305	1	Elbow Fitting	-
9	T76938	5	O-Ring	-
10	U12547	1	O-Ring	-
11	19M7809	2	Screw	M10 X 70
12	RE251635	1	Pressure Relief Valve	Cooler Bypass
13	19M7802	1	Screw	M8 X 65
14	19M7913	1	Screw	M8 X 90
15	H115379	2	Clamp	-
16	19M8318	1	Screw	M8 X 45
17	H150222	4	Hose Clamp	-
18	RE306415	1	Hydraulic Hose	Axle Pump Inlet, High Flow SUB FOR RE297242
18	RE306414	1	Hydraulic Hose	Axle Pump Inlet, Standard Flow SUB FOR RE297243
19	T78612	1	O-Ring	-
20	38H5172	1	Adapter Fitting	-
21	51M7048	5	O-Ring	29.600 X 2.900 mm
22	38H5121	1	Adapter Fitting	-
23	T77858	1	O-Ring	-
24	51M7045	1	O-Ring	19.300 X 2.200 mm
25	T78612	1	O-Ring	-
26	38H1196	1	Adapter Fitting	-
27	N205415	1	Clamp	-
28	19M7938	1	Cap Screw	M10 X 20
29	R82459	1	O-Ring	-
30	R29936	1	O-Ring	-
31	38H5006	4	Adapter Fitting	-
32	19M7785	2	Screw	M10 X 25

Transmission Cooler Lines (011310 - )
