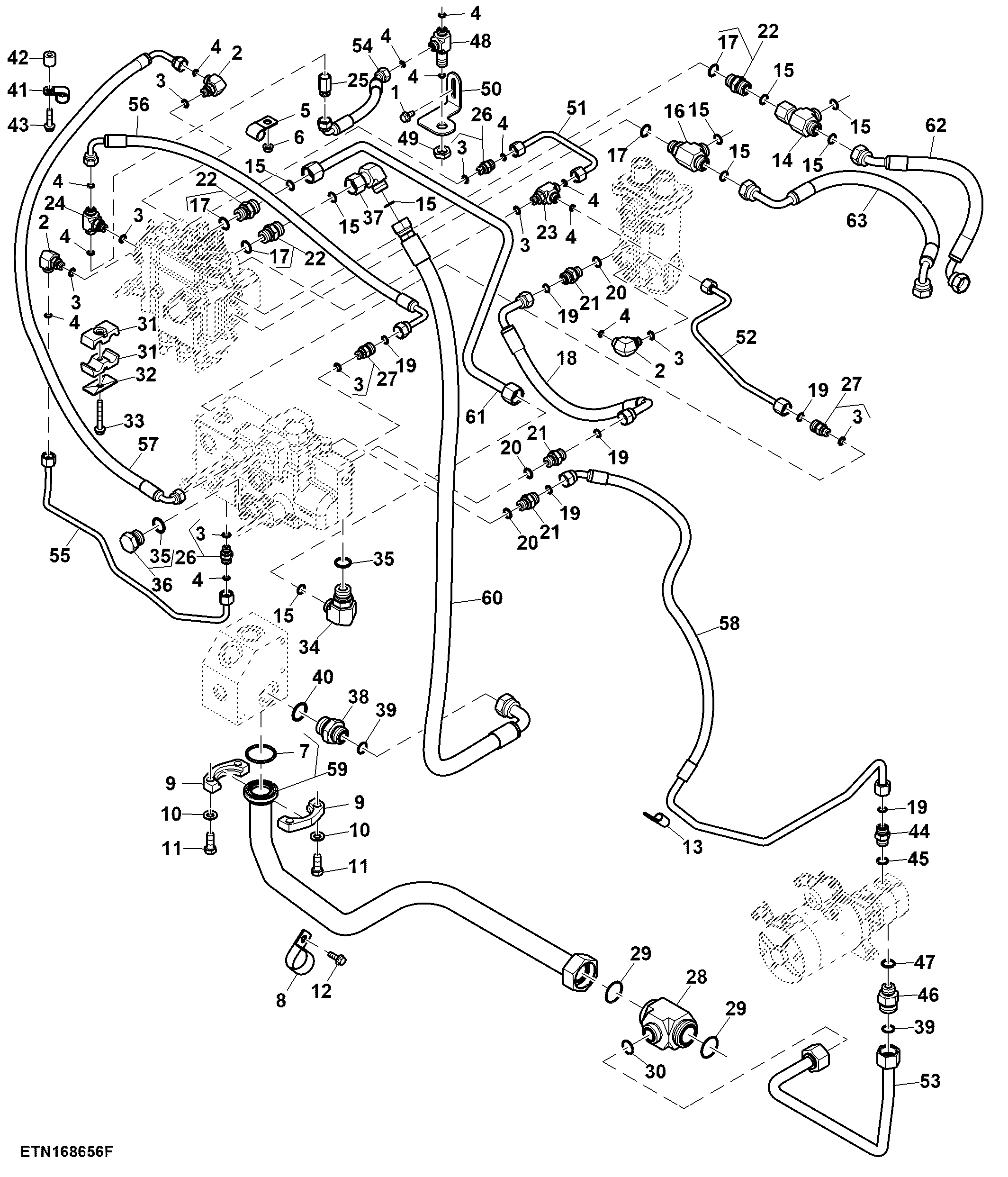

Steering System Lines, ACS™, W/ Hydraulic Trailer Brake (1/2) (801463 - 804100)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7865	2	Screw	M8 X 16
2	38H5016	3	Elbow Fitting	-
3	51M7041	9	O-Ring	11.300 X 2.200 mm
4	T77613	12	O-Ring	-
5	R125063	1	Clamp	-
6	14M7298	2	Flange Nut	M8
7	T34248	1	O-Ring	-
8	CB11489177	1	Clamp	-
9	X51H-24	2	Flange Fitting	-
10	24M7047	4	Washer	13 X 24 X 2.500 mm
11	19M8011	4	Cap Screw	M12 X 30
12	19M7867	1	Screw	M8 X 25
13	RE73111	1	Clamp	-
14	38H5175	1	Tee Fitting	-
15	T77932	9	O-Ring	-
16	38H5030	1	Tee Fitting	-
17	51M7045	4	O-Ring	19.300 X 2.200 mm
18	RE585781	1	Hydraulic Hose	Brake Valve Supply SUB FOR RE579475; ALSO ORDER 38H5003, T77857 AND 51M7043
19	T77857	6	O-Ring	-
20	51M7043	3	O-Ring	15.300 X 2.200 mm
21	38H5003	3	Adapter Fitting	-
21	38H5153	1	Adapter Fitting	USE WITH RE579475
22	38H5004	3	Adapter Fitting	INCLUDES 51M7045
23	38H5067	1	Tee Fitting	-
24	38H5123	1	Tee Fitting	-
25	RE337611	1	Check Valve	-
26	38H5002	2	Adapter Fitting	INCLUDES 51M7041
27	38H5009	2	Adapter Fitting	INCLUDES 51M7041
28	38H1706	1	Tee Fitting	-
29	T78784	2	O-Ring	-
30	T76938	1	O-Ring	-
31	R550794	2	Clamp	-
32	H112567	1	Plate	-
33	19M7801	1	Screw	M8 X 60
34	38H5166	1	Elbow Fitting	-
35	51M7047	2	O-Ring	23.600 X 2.900 mm
36	RE46688	1	Fitting Plug	-
37	38H5385	1	Adapter Fitting	-
38	38H5013	1	Adapter Fitting	-
39	T77858	2	O-Ring	-
40	51M7048	1	O-Ring	29.600 X 2.900 mm
41	E53830	1	Clamp	-
42	R542566	1	Spacer	-
43	19M7897	1	Screw	M8 X 35
44	38H1161	1	Adapter Fitting	-
45	R26375	1	O-Ring	-
46	38H1193	1	Adapter Fitting	-
47	R26906	1	O-Ring	-
48	38H5186	1	Tee Fitting	-
49	38H5091	1	Nut	11/16"
50	R554498	1	Mounting Parts	-
51	RE567472	1	Line	Load Sense Bleed
52	RE567473	1	Line	Pilot Tank
53	RE567253	1	Oil Line	Secondary Pump Inlet
54	RE576848	1	Hydraulic Hose	Brale Load Sense, A
55	RE575217	1	Line	Backup Pilot Supply
56	RE576463	1	Hydraulic Hose	Load Sense to Priority Valve
57	RE575935	1	Hydraulic Hose	Steering Valve Pilot Supply
58	RE579629	1	Oil Line	Secondary Pump, Pressure
59	RE568376	1	Oil Line	Return Manifold Drain line
60	RE582320	1	Hydraulic Hose	Steering Valve Return
61	RE584397	1	Line	ACS Supply
62	RE584649	1	Hydraulic Hose	Anticavitation Hose
63	RE584597	1	Hydraulic Hose	ACS Anticavitation
