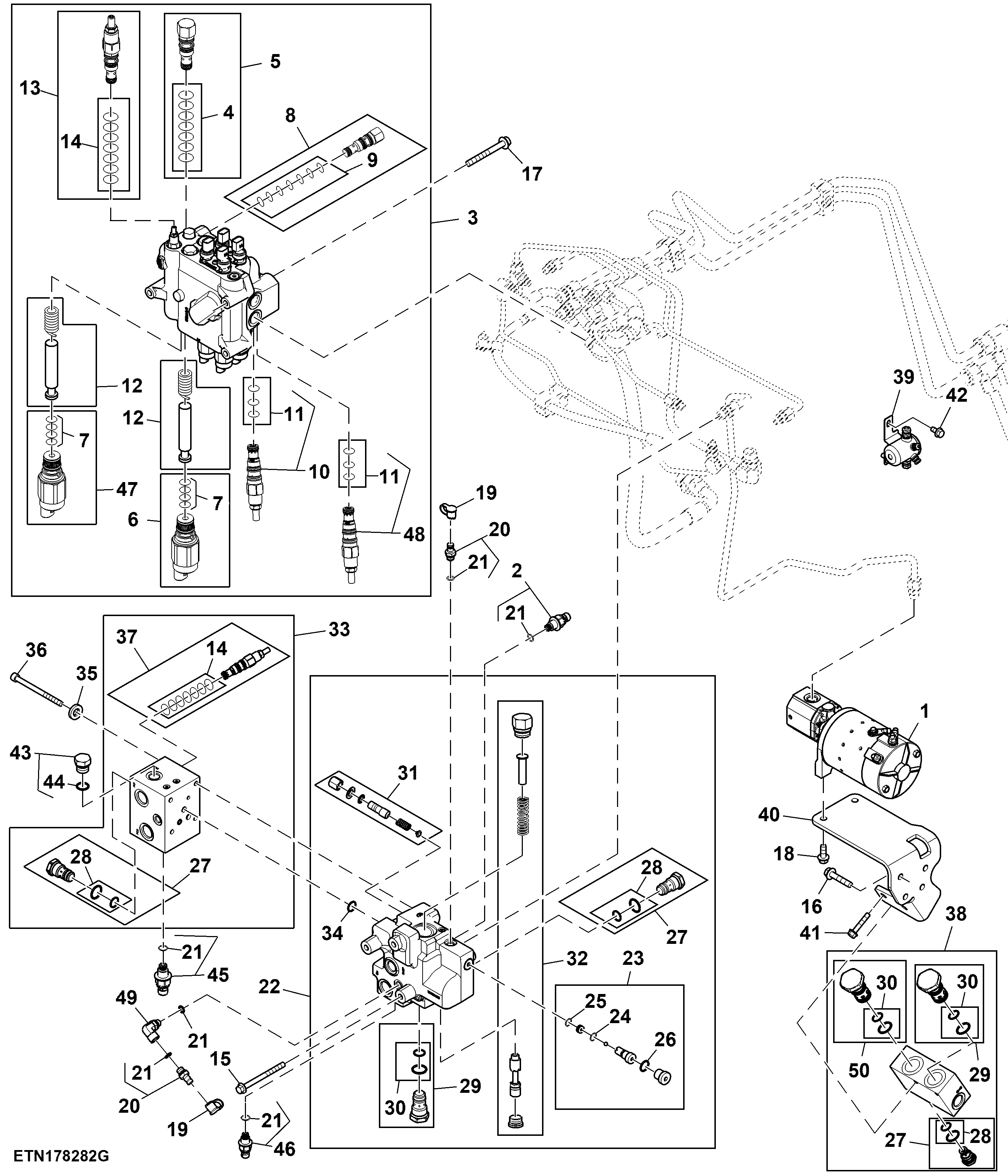

Steering Control Valve, ACS™, W/ Back Up Pump (804101 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE587113	1	Pump	-
2	RE581544	1	Pressure Sensor	B261, Main Hydraulic Pump Pressure Sensor 1 SUB FOR RE272647
3	RE581524	1	Elec-Hyd Proportional Valve	105 LPM, INCLUDES AL203414, RE244397, RE269280, RE276485, RE311581, RE269282
4	AL203413	1	O-Ring Kit	-
5	AL203414	1	Valve Kit	Load Sense Blocking Valve INCLUDES AL203413 ORDER AL229995
5	AL229995	1	Valve Kit	Load Sense Blocking Valve
6	RE244397	1	Solenoid Valve	Y750, Steer Enable Solenoid 1 (ACS™) INCLUDES RE276475
7	RE276475	2	Repair Kit	-
8	RE269280	2	Check Valve	-
9	RE276476	2	Repair Kit	-
10	RE269282	1	Pressure Relief Valve	V64B, Left Turn Shock Valve INCLUDES RE276480
11	RE276480	2	Repair Kit	-
12	RE276485	2	Repair Kit	-
13	RE311581	1	Hydraulic Pressure Valve	INCLUDES RE276479
14	RE276479	2	Repair Kit	-
15	19M7944	3	Screw	M10 X 120
16	19M7806	4	Screw	M10 X 50
17	19M7811	3	Screw	M10 X 90
18	19H3771	2	Screw	3/8" X 1"
19	R77175	3	Cover	-
20	RE190805	3	Diagnostic Coupling	-
21	51M7041	4	O-Ring	11.300 X 2.200 mm, USE WITH RE190805 AND AL117978
21	51M7041	3	O-Ring	11.300 X 2.200 mm, USE WITH RE272647 AND RE581544
22	RE582857	1	Valve	Deluxe Priority Valve INCLUDES RE274550, RE317767, RE568583, RE317768, RE568582, R550890
23	RE274550	1	Check Valve	-
24	R274578	1	O-Ring	-
25	T77613	1	O-Ring	-
26	51M7043	1	O-Ring	15.300 X 2.200 mm
27	RE317767	4	Check Valve	INCLUDES TCA18017
28	TCA18017	4	O-Ring Kit	-
29	RE317768	2	Check Valve	INCLUDES (2) TCA18021
30	TCA18021	3	Seal Kit	-
31	RE568582	1	Hydraulic Pressure Valve	-
32	RE568583	1	Hydraulic Pressure Valve	-
33	RE583880	1	Valve	Deluxe Priority Manifold INCLUDES RE272940 AND (2) RE317767
34	R550890	4	O-Ring	-
35	24M7466	4	Washer	10.500 X 20 X 2 mm
36	19M8544	4	Screw	M10 X 125
37	RE272940	1	Hydraulic Pressure Valve	INCLUDES RE276479
38	RE587998	1	Valve	Pump Inlet Valve INCLUDES RE587999 , RE317768 AND RE317767
39	RE587084	1	Relay	-
40	RE588135	1	Bracket	-
41	19M7799	2	Screw	M8 X 45
42	19M7865	2	Screw	M8 X 16
43	RE46687	1	Drain Plug	-
44	51M7045	1	O-Ring	19.300 X 2.200 mm
45	RE581544	1	Pressure Sensor	B263, Backup Hydraulic Pump Pressure Sensor SUB FOR RE272647
46	RE581544	1	Pressure Sensor	B262, Main Hydraulic Pump Pressure Sensor 2 SUB FOR RE272647
47	RE244397	1	Solenoid Valve	Y753, Steer Enable Solenoid 2 (ACS™) INCLUDES RE276475
48	RE269282	1	Pressure Relief Valve	V64A, Right Turn Shock Valve INCLUDES RE276480
49	AL117978	1	Adapter Fitting	-
50	RE587999	1	Check Valve	INCLUDES TCA18021

Steering Control Valve, ACS™, W/ Back Up Pump (804101 - )
