Roof Wiring Harness, W/ Automatic Temperature Control (For North America) (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE581901	1	Roof Wiring Harness	-
1	RE575170	1	Roof Wiring Harness	SUB FOR RE565537
1	RE587087	1	Roof Wiring Harness	-
2	57M11351	1	Elec. Connector Housing	X110, Cab Inline Connector
2	57M11242	2	Elec. Connector Accessory	-
2	RWA11096	1	Repair Wire Assembly	Cavity A1, A2,A7, A8, B1, B3, B4, B5, B6, B7, B8, B9, B10, B11, B12, C1, C2, C3, C4, C5, C8, C9, C10, C11, C12, D1, D2, D7, D8
2	RWA11101	1	Repair Wire Assembly	Cavity A3, A4, A5, D5,
3	57M8843	1	Elec. Connector Housing	X113, Business Band Device
3	57M7725	1	Electrical Connector Assy	-
3	RWA11085	1	Repair Wire Assembly	Cavity B, C, A
4	RWA11096	1	Repair Wire Assembly	Cavity A1, A2, A7, A8, B1, B3, B4, B5, B6, B7, B8, B9, B10, B11, C1, C2, C3, C4, C8, C9, C10, C11, C12, D1, D2, D7, D8
4	RWA11101	1	Repair Wire Assembly	Cavity A5
4	57M11242	2	Elec. Connector Accessory	-
4	57M11351	1	Elec. Connector Housing	X115, Roof Connector
5	57M8206	1	Elec. Connector Housing	M220, Electric Water Valve
5	RWA11080	1	Repair Wire Assembly	Cavity 5, 6, 8, 9, 10
6	57M8924	1	Elec. Connector Housing	B219, Roof Temperature Sensor
6	57M8633	1	Elec. Connector Accessory	-
6	RWA11097	1	Repair Wire Assembly	Cavity A, B
7	57M11177	1	Elec. Connector Housing	E106, Map Light USE WITH RE575170,
7	RWA11134	1	Repair Wire Assembly	USE WITH RE575170, Cavity 1, 2
8	-	1	Part 22	E101, Console Light USE WITH RE575170 ,
8	RWA11106	1	Repair Wire Assembly	USE WITH RE575170, Cavity 1, 2
9	RWA11025	1	Repair Wire Assembly	Cavity 1, 2
9	57M9776	1	Elec. Connector Housing	Tractor Can Terminating Device
10	57M11134	1	Elec. Connector Housing	-
11	57M8033	1	Elec. Connector Housing	S104, RHC Lamp Switch USE WITH RE575170 OR RE581901,
11	RWA11075	1	Repair Wire Assembly	USE WITH RE575170 OR RE581901,Cavity A, B, C
12	57M8865	1	Elec. Connector Terminal	Chassis Ground
13	57M7790	1	Electrical Connector Assy	S241, Right Hand Wiper Switch
13	57M7729	1	Electrical Connector Assy	-
13	RWA11085	1	Repair Wire Assembly	Cavity A, B, C, D, E
14	57M7790	1	Electrical Connector Assy	S242, Rear Wiper
14	57M7729	1	Electrical Connector Assy	-
14	RWA11085	1	Repair Wire Assembly	Cavity A, B, C, D, E
15	57M8633	1	Elec. Connector Accessory	-
15	RWA11097	1	Repair Wire Assembly	Cavity A, B
15	57M8612	1	Elec. Connector Housing	B220, Cab Temperature Sensor
16	57M8933	1	Elec. Connector Housing	Y220, HVAC Air Mode Actuator
16	RWA11109	1	Repair Wire Assembly	Cavity 3, 1, 5, 6, 2
17	57M8761	1	Elec. Connector Housing	S100, Dome Lamp Switch
17	RWA11134	1	Repair Wire Assembly	Cavity 2, 3, 4
18	57M9199	1	Elec. Connector Terminal	LH Door Switch (Power)
18	RWA10678	1	Repair Wire Assembly	Cavity 1
19	57M9199	1	Elec. Connector Terminal	LH Door Switch (Ground)
19	RWA10678	1	Repair Wire Assembly	Cavity 1
20	57M9127	1	Elec. Connector Terminal	A85, Radio Connector
20	RWA11139	1	Repair Wire Assembly	Cavity A7
20	RWA10850	1	Repair Wire Assembly	Cavity A1, A3, A4, A5, B1, B2, B3, B4, B5, B6, B7, B8
21	57M8721	1	Elec. Connector Accessory	-
22	57M7256	1	Elec. Connector Housing	S308, Power Mirror Inline
22	57M7289	1	Elec.Connect Locking Device	-
22	RWA11082	1	Repair Wire Assembly	Cavity A, B
23	57M8910	1	Clip	-
24	57M7254	1	Elec. Connector Housing	B217, Evaporator Temperature Sensor
24	57M7289	1	Elec.Connect Locking Device	-
24	RWA11083	1	Repair Wire Assembly	Cavity A, B
25	57M7724	1	Electrical Connector Assy	USE WITH RE587087
25	RWA11086	1	Repair Wire Assembly	USE WITH RE587087 Cavity 1, 2
25	57M8174	1	Elec. Connector Housing	B212, Right Front Speaker USE WITH RE587087
25	RWA11114	1	Repair Wire Assembly	USE WITH RE575170 OR RE581901, Cavity 1, 2
25	57M9669	1	Elec. Connector Housing	B212, Right Front Speaker USE WITH RE575170 OR RE581901,
26	57M9669	1	Elec. Connector Housing	B213, Left Front Speaker USE WITH RE575170 OR RE581901,
26	RWA11114	1	Repair Wire Assembly	USE WITH RE575170 OR RE581901, Cavity 1, 2
26	57M8174	1	Elec. Connector Housing	B213, Left Front Speaker USE WITH RE587087
26	57M7724	1	Electrical Connector Assy	USE WITH RE587087
26	RWA11086	1	Repair Wire Assembly	USE WITH RE587087 Cavity 1, 2
27	57M8625	1	Elec. Connector Housing	B224, Refrigerant Pressure Sensor
27	57M8624	1	Elec.Connect Locking Device	-
27	RWA11097	1	Repair Wire Assembly	Cavity 1, 3, 2
28	57M8612	1	Elec. Connector Housing	B218, Duct and Case Temperature Sensor
28	RWA11097	1	Repair Wire Assembly	Cavity B, A
28	57M8633	1	Elec. Connector Accessory	-
29	57M9669	1	Elec. Connector Housing	B214, Right Rear Speaker USE WITH RE575170 OR RE581901,
29	RWA11114	1	Repair Wire Assembly	USE WITH RE575170 OR RE581901, Cavity 1, 2
29	57M8174	1	Elec. Connector Housing	B214, Right Rear Speaker USE WITH RE587087
29	57M7724	1	Electrical Connector Assy	USE WITH RE587087
29	RWA11086	1	Repair Wire Assembly	USE WITH RE587087 Cavity 1, 2
30	RWA11086	1	Repair Wire Assembly	USE WITH RE587087 Cavity 1, 2
30	57M7724	1	Electrical Connector Assy	USE WITH RE587087
30	57M8174	1	Elec. Connector Housing	B215, Left Rear Speaker USE WITH RE587087
30	RWA11114	1	Repair Wire Assembly	USE WITH RE575170 OR RE581901, Cavity 1, 2
30	57M9669	1	Elec. Connector Housing	B215, Left Rear Speaker USE WITH RE575170 OR RE581901,
31	57M12241	1	Elec. Connector Housing	Y221, PWM Motor
31	RWA11140	1	Repair Wire Assembly	Cavity 1, 2, 3
32	57M8958	1	Elec. Connector Housing	M211, Pressurizer Blower Motor
32	57M8129	1	Elec. Connector Terminal	-
32	RWA11088	1	Repair Wire Assembly	Cavity A, B
33	57M9555	1	Clip	-
34	57M8549	1	Elec. Connector Housing	A220, Control Head
34	RWA11109	1	Repair Wire Assembly	Cavity 22, 20, 18, 14, 19, 15, 16, 25, 9, 23, 11, 27, 6, 24, 8, 31, 32, 5, 21
35	57M9229	8	Clip	-
36	RE258807	16	Tie Band	-

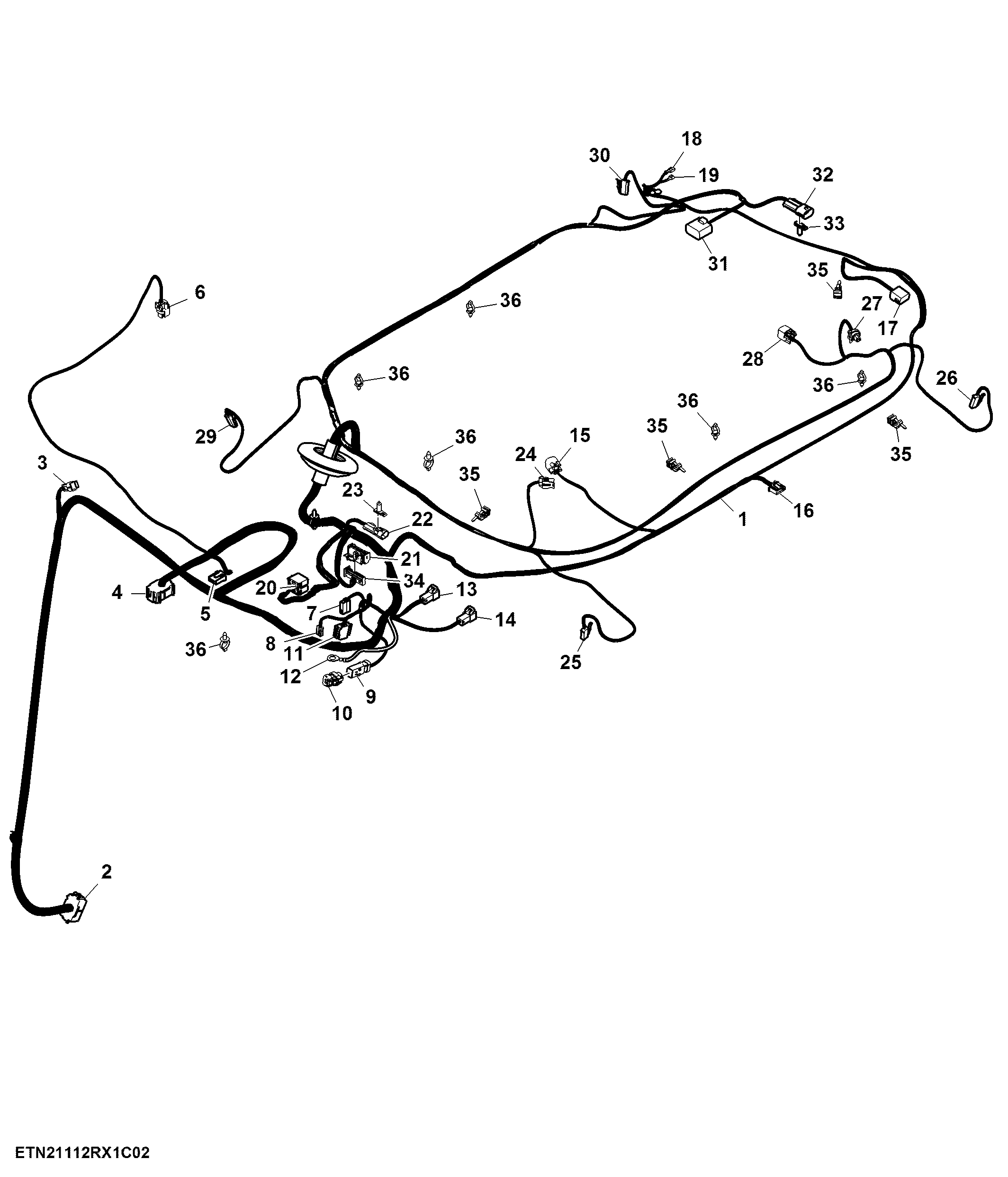

Roof Wiring Harness, W/ Automatic Temperature Control (For North America) (2/2)
