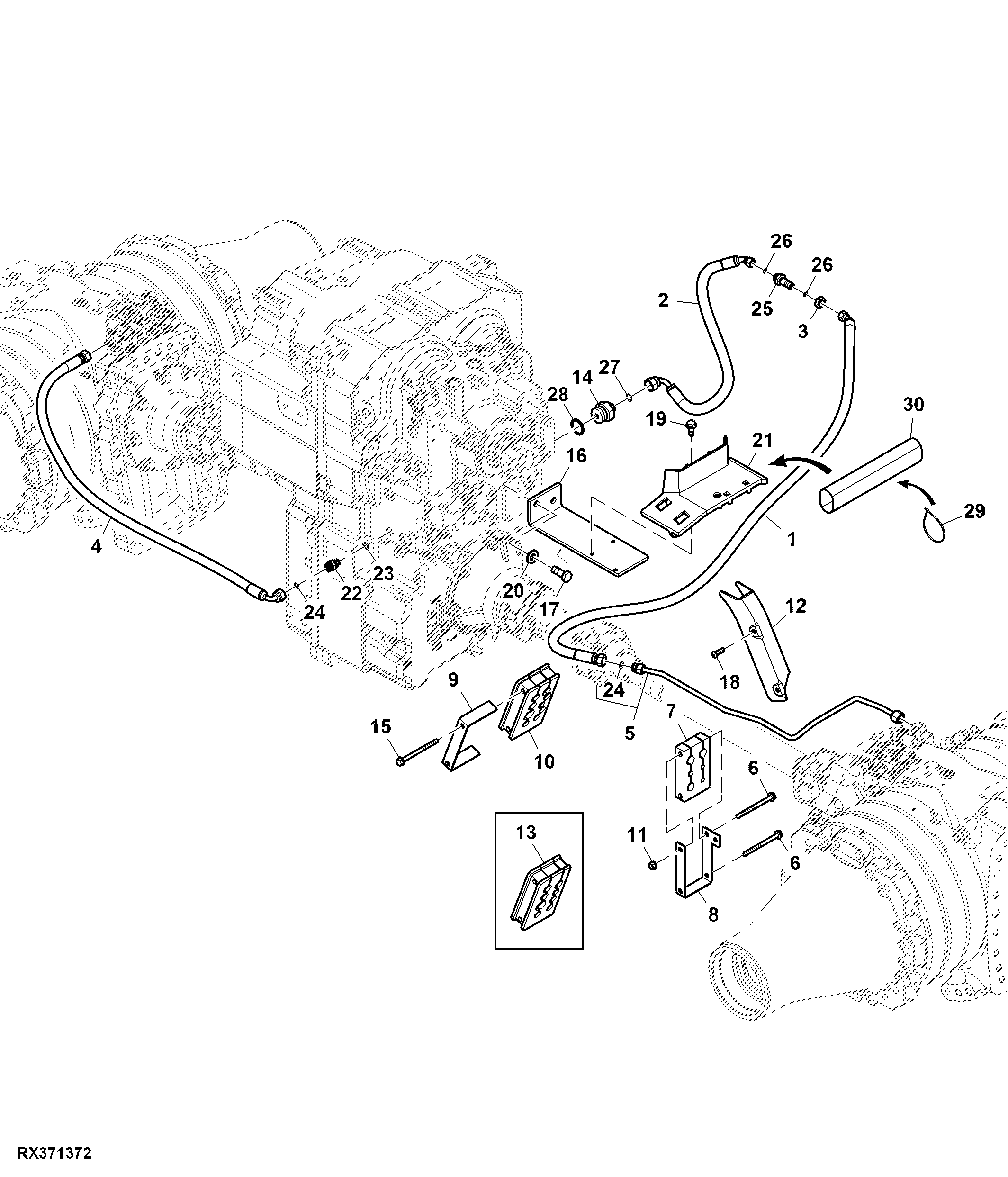

Oil Line, Differential Lock, PST, Double Reduction Axle

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE568007	1	Hydraulic Hose	Rear Differential Supply
2	RE568112	1	Hydraulic Hose	Rear Differential Supply
3	38H5090	1	Nut	9/16"
4	RE566817	1	Hydraulic Hose	Front Differential Supply
5	RE585425	1	Oil Line	Rear Differential Supply
5	RE567148	1	Line	Rear Differential Supply
6	19M7970	4	Screw	M8 X 100
7	R557290	2	Clamp	USE WITH RE585425
7	R344697	2	Block Clamp	USE WITH RE567148
8	R543817	2	Cover	-
9	R543791	1	Cover	-
10	R557289	1	Clamp	-
11	14M7396	2	Lock Nut	M8
12	R543913	1	Guide	-
13	R545138	1	Clamp	-
14	38H1176	1	Adapter Fitting	-
15	19M9355	2	Screw	M8 X 105
16	R565053	1	Bracket	SUB FOR R552533
17	19M7488	2	Cap Screw	M16 X 40
18	21M7580	2	Socket Head Screw	M8 X 25
19	R260828	2	Bolt	-
20	24M7241	2	Washer	17 X 34 X 4 mm
21	R552532	1	Guide	-
22	38H5002	1	Adapter Fitting	INCLUDES 51M7041
23	51M7041	1	O-Ring	11.300 X 2.200 mm
24	T77613	2	O-Ring	-
25	38H5222	1	Union Fitting	-
26	T77814	2	O-Ring	-
27	T77857	1	O-Ring	-
28	R29936	1	O-Ring	-
29	R76477	2	Tie Band	-
30	R551064	1	Hose Guard	-

Oil Line, Differential Lock, PST, Double Reduction Axle
