Hydraulic Pump, W/ ACS™, High Flow, W/ PTO, Double Reduction Axle (804101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7790	4	Screw	M12 X 35
2	RE336158	1	Hydraulic Pump	-
3	T34448	2	O-Ring	-
4	51M7066	2	O-Ring	56.744 X 3.531 mm
5	19M7403	4	Cap Screw	M12 X 35
6	RE154966	1	Pressure Sensor	-
7	51M7041	4	O-Ring	11.300 X 2.200 mm
8	24M7240	4	Washer	13 X 25 X 3 mm
9	38H5006	2	Adapter Fitting	-
10	T76938	2	O-Ring	-
11	RE52722	1	Temperature Sensor	B694, Hydraulic Oil
12	T78313	1	O-Ring	-
13	RE344053	1	Hydraulic Pressure Valve	PTO Control
14	A73181	2	Pipe Plug	-
15	R550788	1	Orifice	-
16	YZ250263	1	Pressure Relief Valve	6.55 BAR
17	14M7299	4	Flange Nut	M12
18	19M7873	3	Screw	M8 X 110
19	42M7105	4	Stud	-
20	51M7067	1	O-Ring	69.444 X 3.531 mm
21	RE579067	1	Hydraulic Pump	90 cc, 220 l/min (58 gpm)
22	R547247	1	Manifold	-
23	R560363	1	Elbow Fitting	-
24	RE190805	1	Diagnostic Coupling	-
25	RE567064	1	Manifold	Cooler Bypass Manifold
26	51M7048	2	O-Ring	29.600 X 2.900 mm
27	AL117978	1	Adapter Fitting	-
28	AT435524	2	Check Valve	-
29	R26906	2	O-Ring	-
30	T341051	2	Check Valve	-
31	T77932	4	O-Ring	-
32	RE584012	1	Bracket	-
33	19M8318	2	Screw	M8 X 45
34	RE579066	1	Hydraulic Pump	85 cc
35	RE60702	2	Diagnostic Coupling	-
36	38H5018	1	Elbow Fitting	-
37	51M7045	1	O-Ring	19.300 X 2.200 mm
38	38H5166	1	Elbow Fitting	-
39	51M7047	1	O-Ring	23.600 X 2.900 mm
40	R77175	2	Cover	-

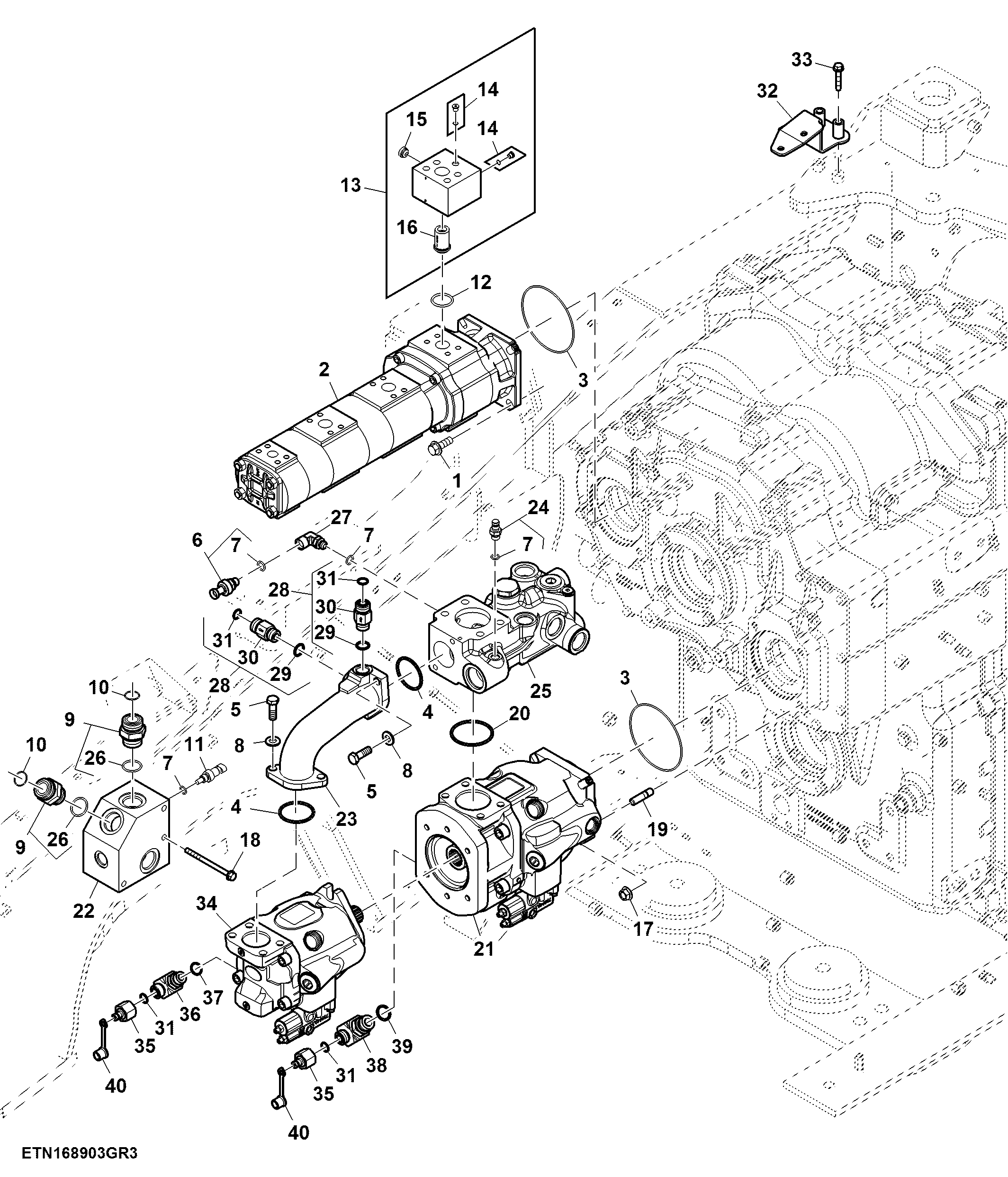

Hydraulic Pump, W/ ACS™, High Flow, W/ PTO, Double Reduction Axle (804101 - )
