Hydraulic Lines, High Flow, W/ PTO, Double Reduction Axle (3/3) (809003 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	X51H-24	4	Flange Fitting	-
2	24M7047	8	Washer	13 X 24 X 2.500 mm
3	19M7403	4	Cap Screw	M12 X 35
4	RE342016	1	Line	Pump to Return Manifold
5	T78313	1	O-Ring	-
6	19M8011	4	Cap Screw	M12 X 30
7	H61354	2	Flange Fitting	-
8	24M7106	8	Washer	10 X 18 X 2.500 mm
9	19M7662	4	Cap Screw	M10 X 30
10	R29867	2	Flange Fitting	-
11	RE567471	1	Hydraulic Hose	Pump Case Drain to Priority Valve
12	RE567175	1	Hydraulic Hose	Load Sense, from Pump to Priority Valve
13	38H5020	1	Elbow Fitting	-
14	51M7048	2	O-Ring	29.600 X 2.900 mm
15	T76938	1	O-Ring	-
16	RE264764	1	Check Valve	-
17	T77814	2	O-Ring	-
18	38H5011	1	Adapter Fitting	-
19	51M7041	1	O-Ring	11.300 X 2.200 mm
20	38H5004	1	Adapter Fitting	-
21	T77932	2	O-Ring	-
22	51M7045	1	O-Ring	19.300 X 2.200 mm
23	RE591697	1	Oil Line	Transmission Scavenge Pump Inlet INCLUDES (2) 51M7065
24	51M7065	2	O-Ring	47.219 X 3.531 mm
25	38H5022	1	Elbow Fitting	INCLUDES 51M7040
26	51M7040	1	O-Ring	9.300 X 2.200 mm
27	T77613	1	O-Ring	-
28	38H5152	1	Adapter Fitting	-
29	51M7047	1	O-Ring	23.600 X 2.900 mm
30	R556846	1	Manifold	-
31	19M7836	4	Screw	M10 X 110
32	T78393	2	O-Ring	-
33	T283826	2	Flange Fitting	-
34	24M7240	4	Washer	13 X 25 X 3 mm
35	19M7813	4	Screw	M12 X 45
36	RE579848	1	Oil Line	Pump Outlet to Priority Valve INCLUDES T78393 AND T34248
37	T34248	1	O-Ring	-
38	RE576757	1	Oil Line	Cooler Bypass to Transmission
39	RE46689	1	Fitting Plug	-
40	19M7550	4	Cap Screw	M10 X 35

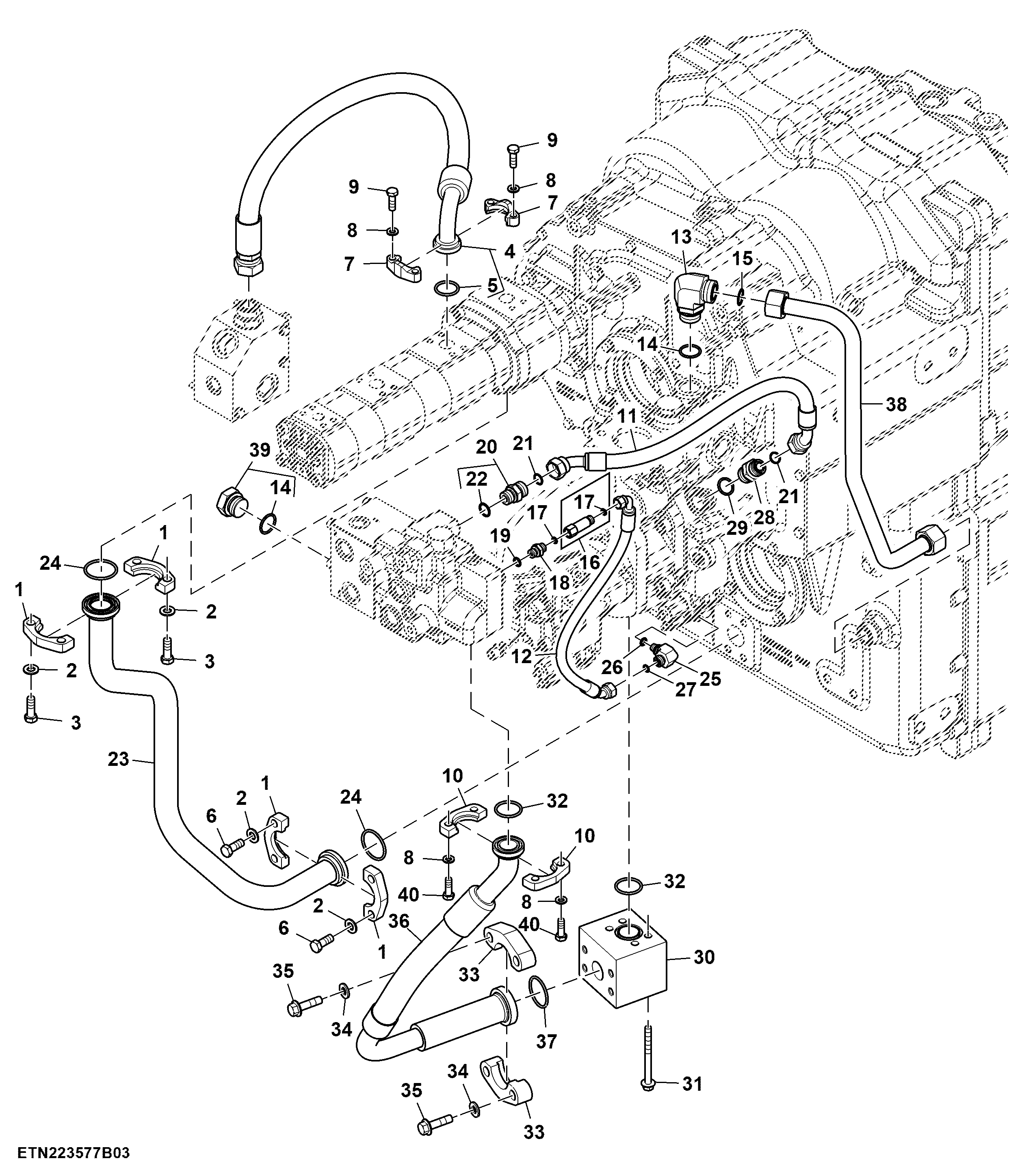

Hydraulic Lines, High Flow, W/ PTO, Double Reduction Axle (3/3) (809003 - )
