Chassis Wiring Harness, 8 SCV, W/O Hitch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9146	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
1	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 4
1	57M9498	1	Elec. Connector Housing	Selective Control Unit Valve Unit VIII (SV 8) A708
2	57M9498	1	Elec. Connector Housing	Selective Control Unit Valve Unit VII (SV 7) A707
2	57M9146	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
2	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 4
3	57M9498	1	Elec. Connector Housing	Selective Control Unit Valve Unit VI (SV 6) A706
3	57M9146	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
3	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 4
4	57M9498	1	Elec. Connector Housing	Selective Control Unit Valve Unit V (SV 5) A705
4	57M9146	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
4	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 4
5	57M9146	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
5	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 4
5	57M9498	1	Elec. Connector Housing	Selective Control Unit Valve Unit I (SV 1) A701
6	57M9498	1	Elec. Connector Housing	Selective Control Unit Valve Unit II (SV 2) A702
6	57M9146	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
6	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 4
7	57M9498	1	Elec. Connector Housing	Selective Control Unit Valve Unit III (SV 3) A703
7	57M9146	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
7	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 4
8	57M9498	1	Elec. Connector Housing	Selective Control Unit Valve Unit IV (SV 4) A704
8	57M9146	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
8	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 4
9	57M8164	12	Elec. Connector Terminal	Cavity 7, 8, 10, 11, 13, 14, 15, 16, 22, 25, 26, 28
9	57M9525	3	Elec. Connector Terminal	Cavity 6, 12, 17
9	57M9224	4	Elec. Connector Terminal	Cavity 18, 23, 27, 29
9	57M11419	1	Elec. Connector Housing	Rear Chassis Extension X320B
9	57M8592	2	Elec. Connector Terminal	Cavity 3, 4
10	57M10485	1	Elec. Connector Accessory	-
11	R78053	1	Electrical Connector Assy	Dust Cap
12	RE12363	1	Electrical Connector Assy	Implement Switch (NC) S549
12	57M10924	2	Elec. Connector Terminal	Cavity A, B
12	57M9219	2	Elec. Connector Seal	Cavity A, B
13	57M10299	1	Elec. Connector Housing	Trailor Lighting Connector 2 X129A
13	57M8543	2	Elec. Connector Terminal	Cavity 3, 8
13	57M8545	5	Elec. Connector Terminal	Cavity 2, 4, 5, 6, 7
13	57M8565	1	Elec. Connector Terminal	Cavity 1
14	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
14	57M9813	1	Elec. Connector Terminal	Cavity 3
14	57M9784	3	Elec. Connector Housing	Outlet Rear Trailer Lighting and Accessory X100
15	57M9780	1	Elec. Connector Housing	Dust Cap
16	57M9838	1	Elec. Connector Accessory	ORDER 57M15917
16	57M15917	1	Elec. Connector Accessory	-
17	RE586858	1	Chassis Wiring Harness	SUB FOR RE574000
18	57M11897	8	Elec. Connector Accessory	-
19	57M8035	1	Nut	-
20	57M11451	1	Elec. Connector Accessory	-
21	57M10362	1	Clamp	-
22	57M9784	1	Elec. Connector Housing	X124; USE WITH RE586858
23	57M9784	1	Elec. Connector Housing	X125; USE WITH RE586858

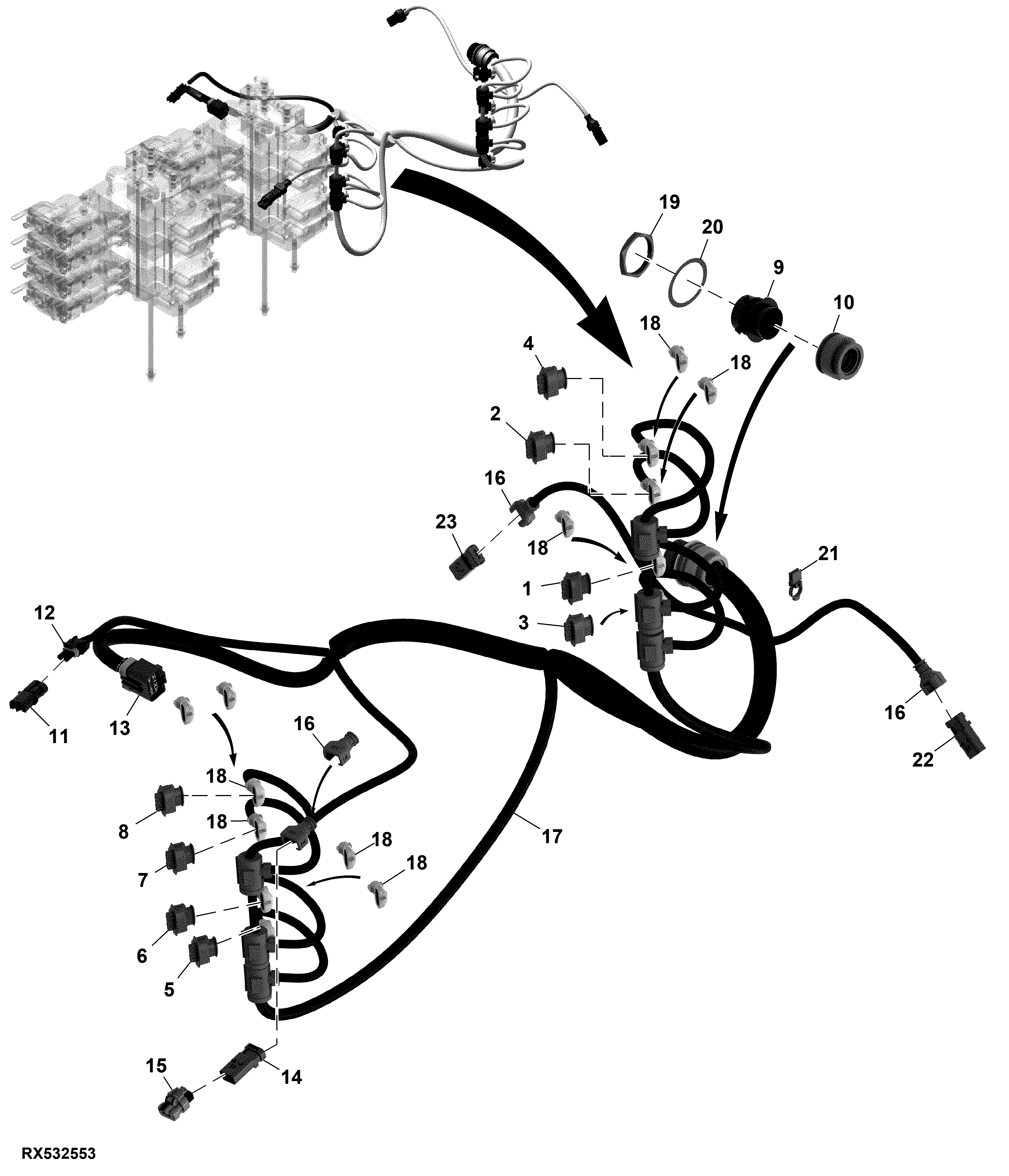

Chassis Wiring Harness, 8 SCV, W/O Hitch
