Steering System, AutoTrac™ W/ Back Up Pump ( - 052792)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77857	3	O-Ring	-
2	T77858	17	O-Ring	-
3	T77613	8	O-Ring	-
4	51M7041	6	O-Ring	11.300 X 2.200 mm
5	51M7045	12	O-Ring	19.300 X 2.200 mm
6	T77932	13	O-Ring	-
7	51M7047	6	O-Ring	23.600 X 2.900 mm
8	RE575215	1	Oil Line	Front Steering Supply Rod End
9	38H1161	1	Adapter Fitting	-
10	R26375	1	O-Ring	-
11	38H1193	1	Adapter Fitting	-
12	R26906	1	O-Ring	-
13	RE575212	1	Oil Line	Rear Steering Supply Rod End
14	38H1324	1	Elbow Fitting	-
15	RE575216	1	Oil Line	Front Steering Supply Head End
16	38H1463	2	Tee Fitting	-
17	T78784	2	O-Ring	-
18	T76938	1	O-Ring	-
19	38H5002	3	Adapter Fitting	INCLUDES 51M7041
20	38H5003	1	Adapter Fitting	-
21	51M7043	1	O-Ring	15.300 X 2.200 mm
22	38H5004	5	Adapter Fitting	-
23	38H5005	2	Adapter Fitting	-
24	38H5008	1	Adapter Fitting	-
25	51M7040	1	O-Ring	9.300 X 2.200 mm
26	RE575214	1	Oil Line	Rear Steering Supply Head End
27	38H5016	2	Elbow Fitting	-
28	38H5013	1	Adapter Fitting	-
29	51M7048	1	O-Ring	29.600 X 2.900 mm
30	38H5144	1	Tee Fitting	-
31	H112567	3	Plate	-
32	19M7801	2	Screw	M8 X 60
33	38H5094	4	Nut	1-3/16"
34	R550794	2	Clamp	-
35	RE567474	1	Oil Line	Steering Crossover
36	RE567253	1	Oil Line	Secondary Pump Inlet
37	H135155	4	Clamp	-
38	RE565311	1	Hydraulic Hose	HMU Return
39	RE568286	1	Oil Line	Steering Crossover
40	RE567470	1	Hydraulic Hose	Steering Valve Return
41	38H5019	1	Elbow Fitting	-
42	RE566932	1	Line	Load Sesne ORDER RE579476
43	RE565307	1	Hydraulic Hose	Manual Steering Valve Supply
44	RE565393	1	Line	Pilot Tank
45	RE565306	1	Hydraulic Hose	HMU Lower to AT Upper
46	38H5192	4	Fitting	-
47	RE579629	1	Oil Line	Secondary Pressure Pump SUB FOR RE567004
48	38H5166	1	Elbow Fitting	-
49	RE575934	1	Hydraulic Hose	Steering Valve Pilot Supply SUB FOR RE565361
50	RE576028	1	Line	EH Supply SUB FOR RE566933
51	38H1706	1	Tee Fitting	-
52	38H5202	1	Adapter Fitting	-
53	RE566934	1	Hydraulic Hose	HMU Upper to AT Lower
54	19M7802	1	Screw	M8 X 65
55	38H5030	1	Tee Fitting	-
56	RE337611	1	Check Valve	-
57	RE565305	2	Hydraulic Hose	Steering Cylinder Head End
58	RE565308	1	Hose	Brake Load Sense
59	RE575053	2	Hydraulic Hose	Steering Cylinder Rod End
60	RE576544	1	Hydraulic Hose	Secondary Steering Load Sense ORDER RE584322; ALSO ORDER 38H5145 AND R213663; SUB FOR RE565294
61	E53830	1	Clamp	-
62	R542566	1	Spacer	-
63	19M7897	1	Screw	M8 X 35
64	38H5152	1	Adapter Fitting	-
65	RE46687	2	Drain Plug	-
66	38H5009	1	Adapter Fitting	-
67	RE46684	1	Fitting Plug	-
68	19M7867	1	Screw	M8 X 25
69	24M7047	4	Washer	13 X 24 X 2.500 mm
70	X51H-24	2	Flange Fitting	-
71	19M8011	4	Cap Screw	M12 X 30
72	RE568376	1	Oil Line	Return Manifold Drain line
73	CB11489177	1	Clamp	-
74	T34248	1	O-Ring	-
75	RE584322	1	Hydraulic Hose	AutoTrac™ Load Sense
76	38H5145	1	Elbow Fitting	-
77	R213663	1	Clamp	-
78	RE579476	1	Oil Line	EH Supply ORDER RE595289
79	RE595289	1	Oil Line	EH Supply

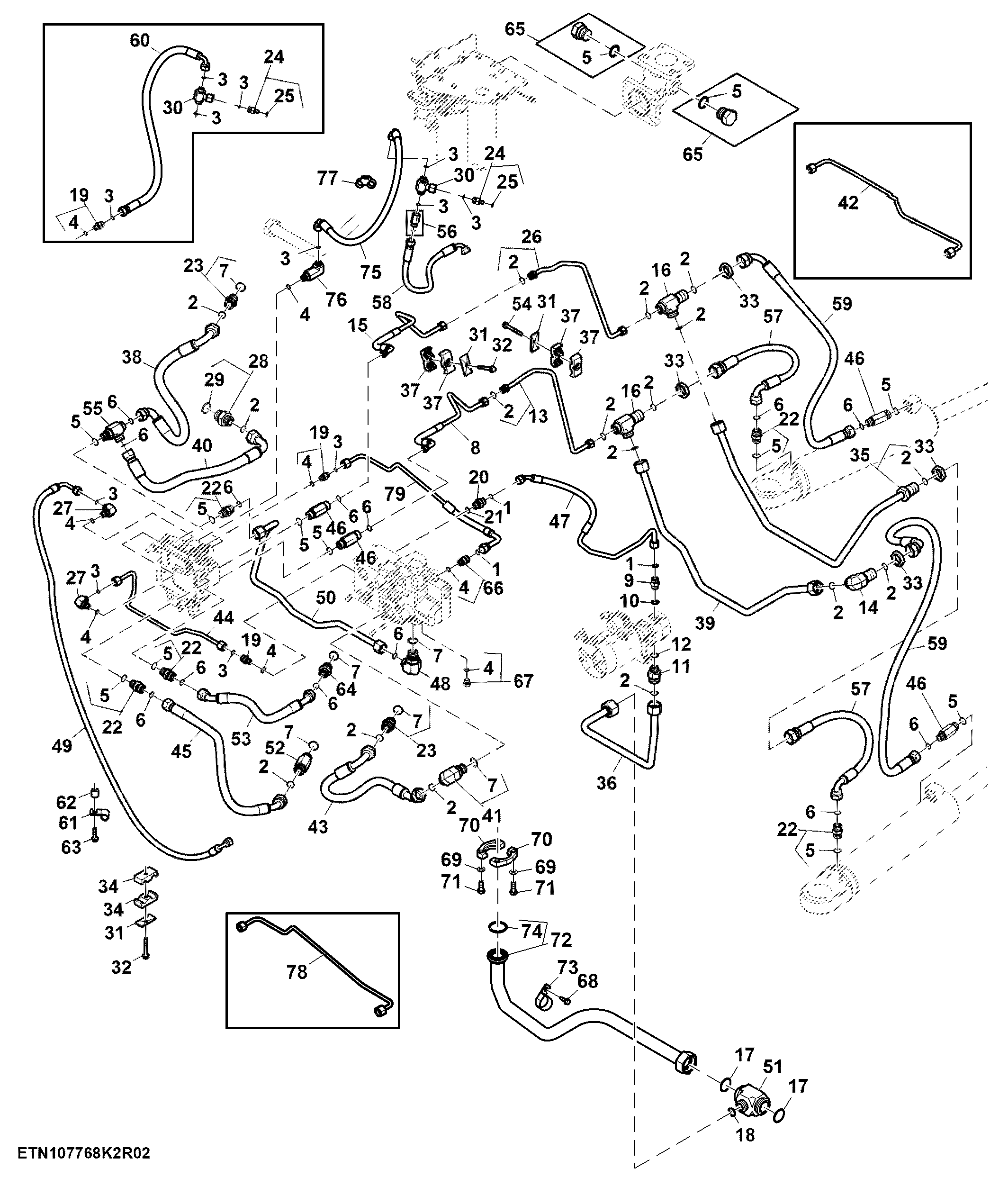

Steering System, AutoTrac™ W/ Back Up Pump ( - 052792)
