SIX STACK SOLENOID CONTROL VALVE MODULE ASSEMBLY AND MOUNTINGS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R77175	1	Cover	-
2	AH125760	1	Hyd. Quick-Connect Coupler	-
3	R26448	1	O-Ring	-
4	14H786	6	Nut	1/4"
5	12H297	6	Lock Washer	1/4"
6	H149803	3	Tie Rod Assembly	1/4" X 13-1/2", (CUT TO LENGTH)
7	H139513	1	Bracket	(USE WITH H139515 AND (2) AH134733)
8	AH131405	2	Seal	-
9	AH131326	10	Seal	-
10	AH147086	1	Flow Control Hyd. Valve	CONTOUR MASTER
11	AH147086	1	Flow Control Hyd. Valve	REEL FORE/AFT
12	AH147086	1	Flow Control Hyd. Valve	AUGER SWING
13	AH139060	1	Flow Control Hyd. Valve	(USE WITH E62917, H145051, H145052 AND (2) 38H1160) REEL LIFT/CYLINDER SPEED
14	AH147084	1	Flow Control Hyd. Valve	(CONTOUR MASTER)
15	AH147097	1	Valve	RELIEF VALVE
16	H139512	1	Bracket	(USE WITH H139515)
17	H135777	2	Orifice	0.76 MM DIA
18	M71770	4	Screw	-
19	R77464	1	Elec. Connector Terminal	(PKG. OF 50)
20	AH124731	11	Electrical Coil	-
21	E62942	11	Cover	-
22	H135898	1	Cover	-
23	A4655R	11	Nut	-
24	57M7199	1	Elec. Connector Housing	(24 WAY)
25	21H1290	4	Screw	0.138" X 1/2"
25	14H1026	4	Nut	0.138"
26	H139515	2	Manifold	-
27	AH134733	2	Seal	-
28	E62917	1	Orifice	0.508 MM DIA
29	H145052	1	Orifice	0.406 MM DIA
30	H145051	1	Aperture	0.940 MM DIA
31	H150062	1	Cover	-
32	-	1	Part 33	(4 PIN CONNECTOR)
33	H149804	2	Orifice	1.19 MM DIA
34	38H1415	2	Fitting	(W/CONTOUR MASTER) (W/O REEL FORE/AFT)

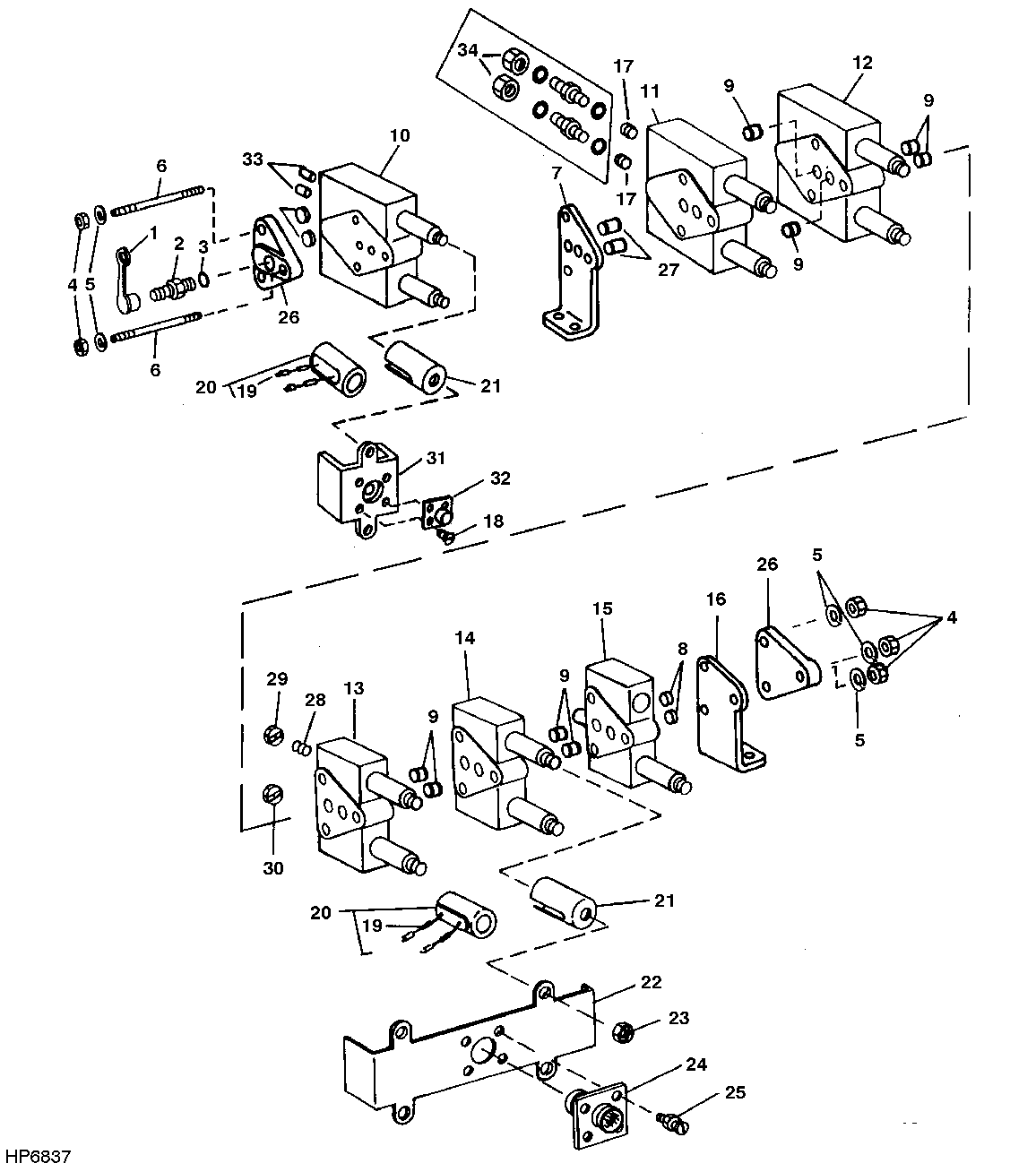

SIX STACK SOLENOID CONTROL VALVE MODULE ASSEMBLY AND MOUNTINGS
