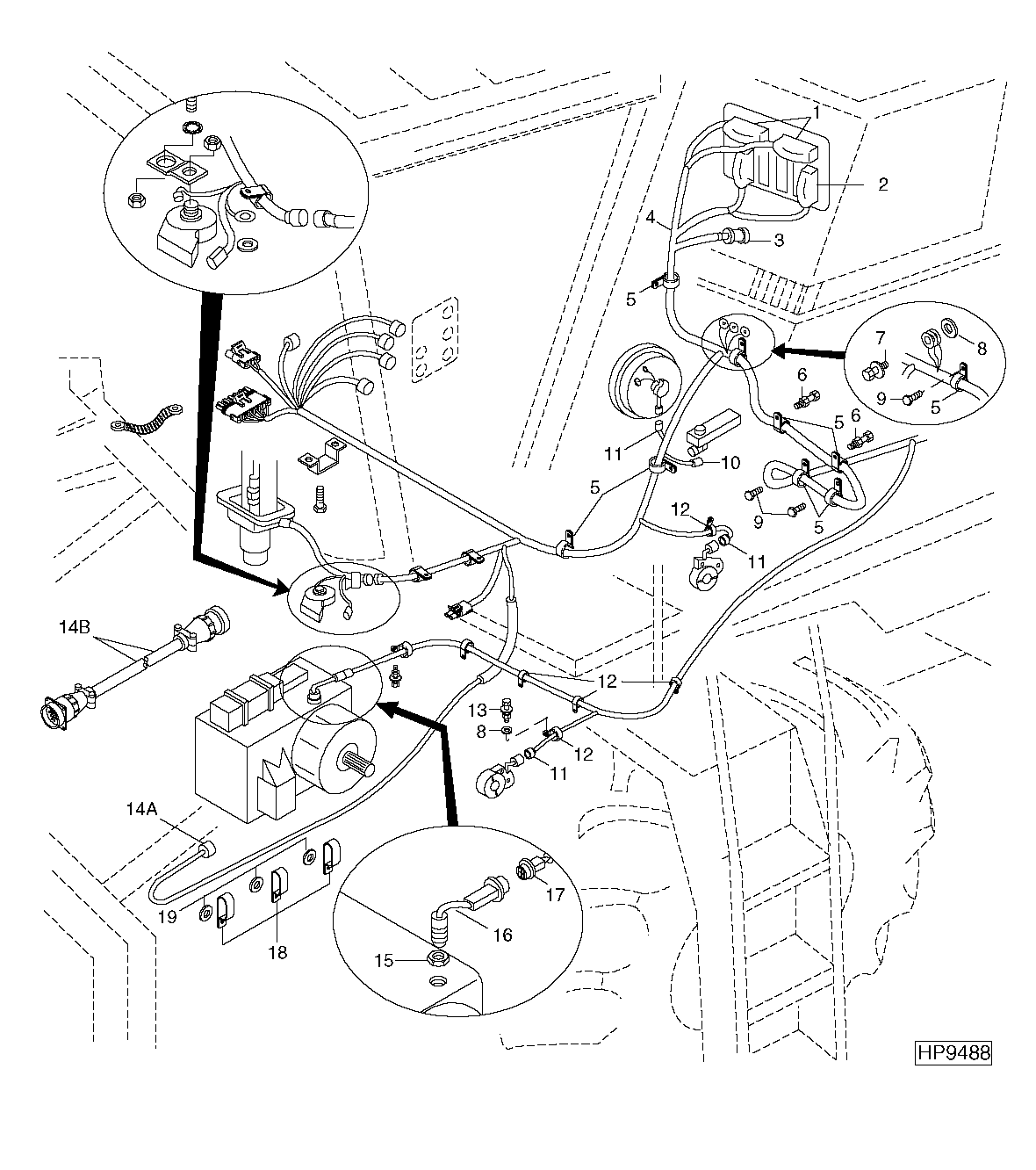

LH Main Wiring Harness, Front (680301 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H132513	2	Electrical Connector Assy	TO C.E.B. BOARD SLOT 1A AND 1B
1	H141127	4	Boot	FOR C.E.B
1	57M7546	1	Elec. Connector Terminal	-
2	57M7818	1	Electrical Connector Assy	TO DASH
2	H141406	3	Tie Band	FOR C.E.M.
2	RE42068	3	Wiring Lead	-
3	H118427	1	Electrical Connector Assy	22 HOLES (MIXED), TO GRAIN TANK
3	N282070	1	Elec. Connector Terminal	-
3	RE42068	5	Wiring Lead	-
4	AH162647	1	Wiring Harness	-
5	AH77869	8	Clip	-
6	19M7865	2	Screw	M8 X 16
6	H131531	2	Push Nut	8 mm (0.315")
7	37M7083	1	Screw	M8 X 12
7	24M7055	1	Washer	8.400 X 16 X 1.600 mm
8	12M7032	2	Lock Washer	8.400 mm
9	37M7083	3	Screw	M8 X 12
10	M43835	1	Electrical Connector Assy	-
10	U46662	1	Elec. Connector Terminal	-
11	RE12363	3	Electrical Connector Assy	HEADER CLUTCH, TAILING ELEV. LSSM, CONVEYOR AUGER LSSM
11	R78060	1	Elec. Connector Terminal	-
11	R78063	1	Elec. Connector Seal	-
12	AH89557	5	Clip	-
13	37M7059	1	Screw	M5 X 12
13	24M7055	1	Washer	8.400 X 16 X 1.600 mm
13	14M7298	1	Flange Nut	M8
15	H104418	1	Nut	19.050 mm (3/4")
16	AH116104	1	Sensor	TRANSMISSION SPEED
17	R78053	1	Electrical Connector Assy	(PKG OF 3), TO GROUND SPEED SENSOR
18	AH96317	3	Clip	-
19	12M7032	3	Lock Washer	8.400 mm
14A	RE42068	1	Wiring Lead	-
14A	Z55267	1	Elec. Connector Terminal	TO DIAL-A-MATIC AHHC
14A	Z55270	1	Elec. Connector Terminal	TO LATERAL TILT CONTROL
14B	AH168231	1	Wiring Harness	WIRING HARNESS REPAIR KIT (INCLUDES MATING CONNECTOR AND TERMINALS)

LH Main Wiring Harness, Front (680301 - )
