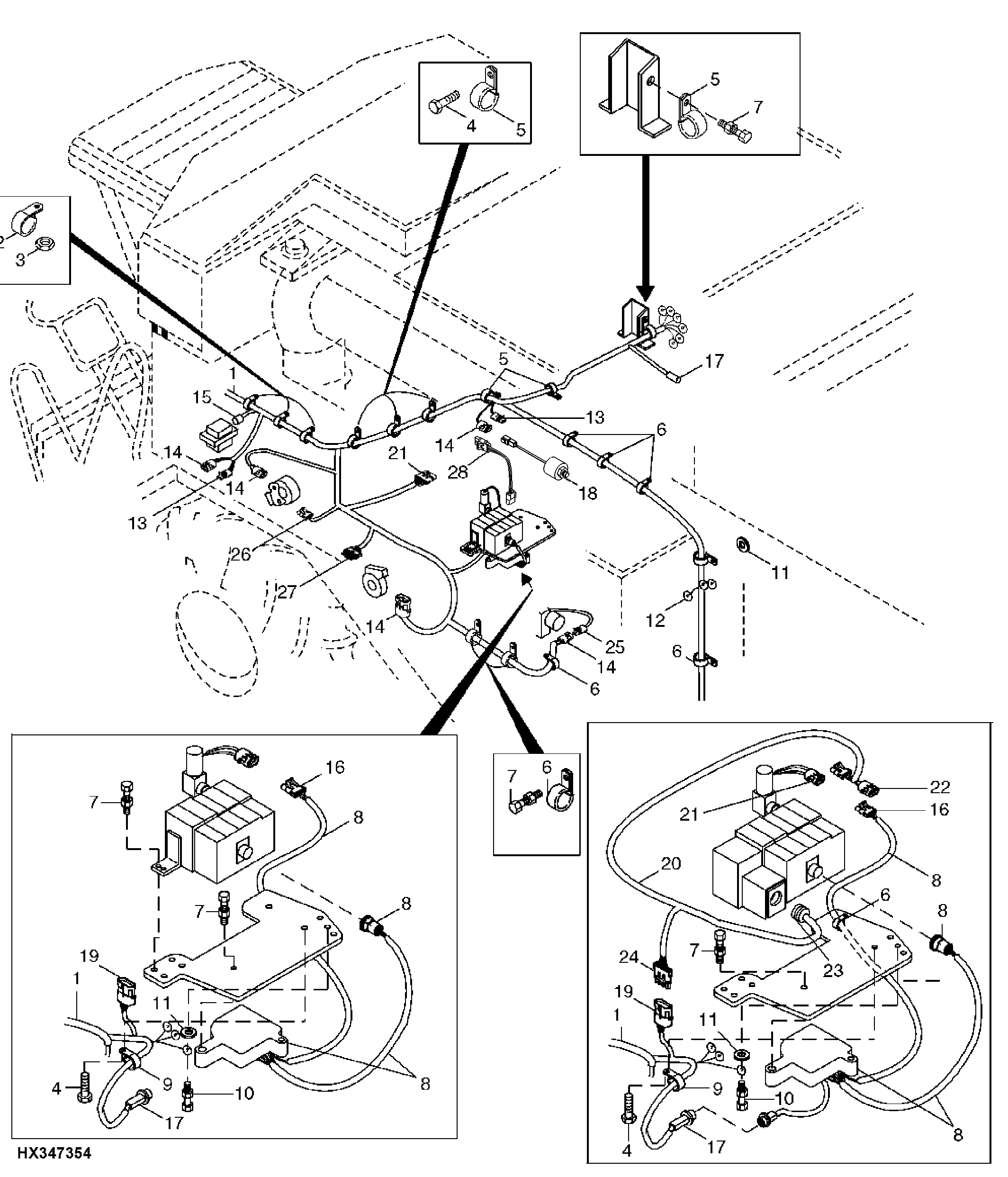

LH Main Wiring Harness, Center - Continued (680301 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH162647	1	Wiring Harness	-
2	AH130222	3	Clamp	-
3	14M7299	3	Flange Nut	M12
4	37M7083	3	Screw	M8 X 12
5	AH90990	5	Clip	-
6	AH89557	9	Clip	-
7	19M7865	5	Screw	M8 X 16
7	14M7298	5	Flange Nut	M8
8	AH129045	1	Module	(LOGIC) INCLUDES CONNECTOR AND RETAINER
8	H118426	1	Electrical Connector Assy	29 PIN
8	R77465	1	Elec. Connector Terminal	-
9	AH96317	1	Clip	-
10	37M7083	1	Screw	M8 X 12
10	37M7058	1	Screw	M8 X 20, (IMPORT)
10	24M7055	1	Washer	8.400 X 16 X 1.600 mm
11	12M7032	2	Lock Washer	8.400 mm
12	24M7055	1	Washer	8.400 X 16 X 1.600 mm
13	R78053	1	Electrical Connector Assy	(PKG OF 3), MALE, TO HYDRO CHARGE PRESSURE, GROUND SPEED LSSM
13	R78058	1	Elec. Connector Terminal	(USE WITH R78059)
14	RE12363	1	Electrical Connector Assy	CONVEYOR AUGER LSSM
14	R78060	1	Elec. Connector Terminal	-
14	R78063	1	Elec. Connector Seal	-
15	AE44392	1	Electrical Connector Assy	(ALSO ORDER AE44389) 4 HOLES (FEMALE) TO REEL SPEED ACTUATOR
15	AE44389	1	Elec. Connector Accessory	-
15	R77465	1	Elec. Connector Terminal	-
16	RE12363	1	Electrical Connector Assy	DIAL-A-MATIC DROP RATE SOLENOID
16	R78060	1	Elec. Connector Terminal	-
16	R78063	1	Elec. Connector Seal	-
17	H141325	1	Elec.Connect Locking Device	-
17	AE44927	1	Electrical Connector Assy	-
17	57M8329	1	Electrical Connector Assy	-
17	AH135787	1	Elec. Connector Terminal	16 HOLE CONNECTOR, TO ENGINE LOGIC MODULE
17	57M7546	1	Elec. Connector Terminal	-
18	AXE73706	1	Switch	Hydro Charge Pressure Switch, SUB FOR AH224451 ORAH128929; ALSO ORDER AH228608,
19	R78055	1	Electrical Connector Assy	TO TILT VALVES
19	R78058	1	Elec. Connector Terminal	(PKG OF 40), (18 GA. WIRE)
19	R78061	1	Elec. Connector Terminal	(PKG OF 40), (16 GA. WIRE)
19	R78063	1	Elec. Connector Seal	(PKG OF 40), (16 GA. WIRE) (GRAY)
19	R78059	1	Elec. Connector Seal	(PKG OF 40), (18 GA. WIRE) (GREEN)
20	AH145056	1	Wiring Harness	(USE WITH CONTOUR MASTER ONLY)
21	RE12363	2	Electrical Connector Assy	2-PIN
21	R78060	1	Elec. Connector Terminal	-
21	R78063	1	Elec. Connector Seal	-
22	R78063	1	Elec. Connector Seal	(PKG OF 40)
22	R78060	1	Elec. Connector Terminal	(PKG OF 40)
22	RE12364	1	Electrical Connector Assy	(PKG OF 3), 2-PIN
23	R78055	1	Electrical Connector Assy	TO TILT VALVE (4-PIN)
24	RE12365	1	Electrical Connector Assy	(PKG OF 2), 4-PIN
24	R104701	1	Elec. Connector Terminal	-
25	RE12363	1	Electrical Connector Assy	POWERED REAR WHEELS
25	R78060	1	Elec. Connector Terminal	-
25	R78063	1	Elec. Connector Seal	-
26	57M8130	1	Elec. Connector Housing	TO FAN SPEED ACTUATOR
26	57M7510	2	Elec. Connector Terminal	-
27	57M7261	1	Elec. Connector Housing	TO UNLOADING AUGER SWING CONTROLLER
27	R104846	4	Elec. Connector Terminal	-
27	57M7572	1	Elec. Connector Terminal	-
27	RE42068	1	Wiring Lead	-
28	AH228608	1	Wiring Harness	USE WITH AH224451
