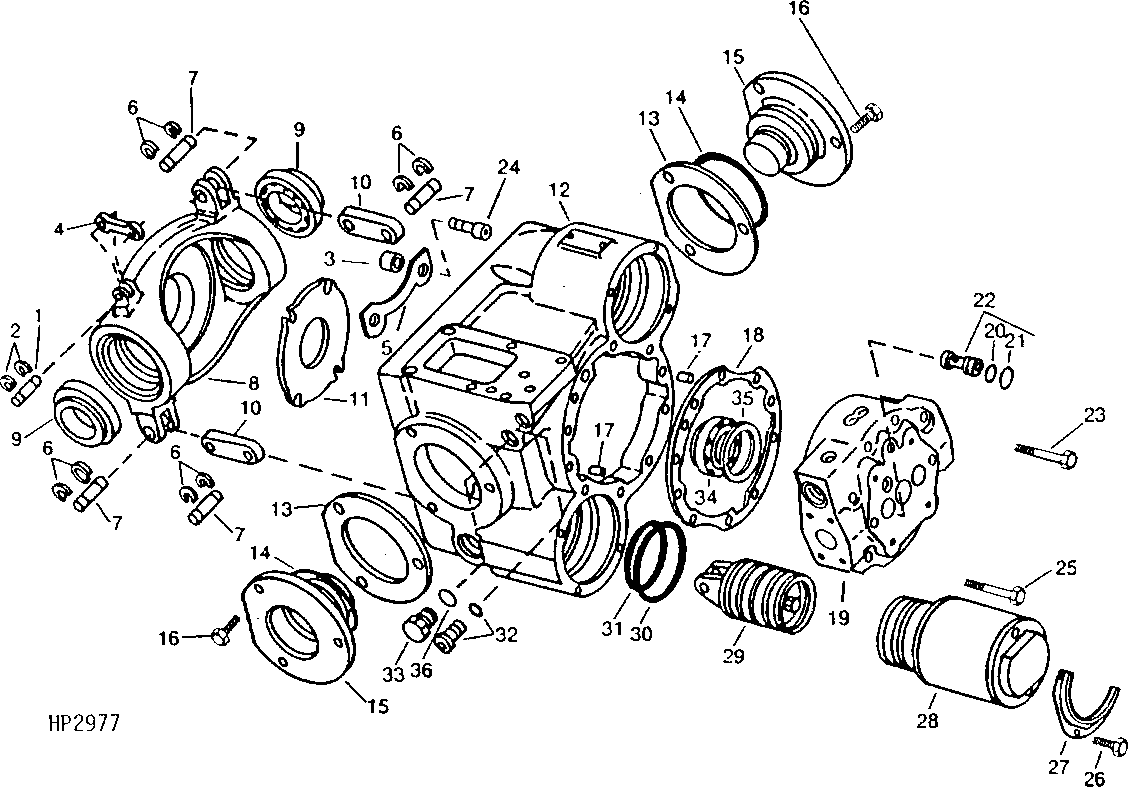

HYDROSTATIC DRIVE PUMP, HOUSING, SWASHPLATE, AND SERVO (VARIABLE DISPLACEMENT) (PLANETARY)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N126603	1	Pin Fastener	-
2	M48000	2	Snap Ring	-
3	-	1	Part 3	(B)
4	-	1	Part 4	-
5	-	1	Part 5	(B)
6	-	8	Part 6	(A), (C)
7	-	4	Part 7	(A), (C)
8	-	1	Part 8	-
9	JD9076	2	Bearing Cone	-
9	JD9133	2	Bearing Cup	-
10	N126600	2	Link	-
11	-	1	Part 12	(B)
12	-	1	Part 13	-
13	AH112680	1	Shim	0.002", 0.005", 0.010", 0.015" AND 0.025", SIX, FOUR
14	M4237T	2	O-Ring	-
15	-	2	Part 16	-
16	19H2666	6	Cap Screw	7/16" X 7/8"
17	H63271	2	Pin	-
18	H214563	1	Gasket	(SUB FOR H115049)
19	-	1	Part 20	-
20	R152879	2	O-Ring	-
20	32246	2	O-Ring	(SUB R152879)
21	W23690	2	Back-Up Ring	-
22	AN122502	2	Check Valve	-
23	19H2347	6	Cap Screw	7/16" X 3"
24	19H3352	4	Screw	5/16" X 1-1/4"
25	19H1899	2	Cap Screw	7/16" X 2"
26	19H3176	6	Screw	0.164" X 0.380"
27	H115052	2	Retainer	SERVO
28	AH112668	2	Sleeve	SERVO SLEEVE ASSEMBLY
29	AH112675	2	Piston	(INCLUDES PARTS MARKED (A))
30	P48403	2	O-Ring	-
31	M4237T	2	O-Ring	-
32	AN122518	1	Fitting Plug	7/16", PLUG, SOCKET HD. UNF, INCLUDES O-RING
33	R51031	1	Fitting	-
34	AH65358	1	Bearing	-
35	AH112678	1	Shim	0.003", 0.005", 0.010", 0.015", 0.020" AND 0.030", SIX
36	R28782	2	O-Ring	-
..	AH131392	1	Plate Kit	HOLDDOWN, (INCLUDES PARTS MARKED (B))
..	AH160785	1	Hydraulic Pump Reman	75CC, (REMANUFACTURED), (SUB FOR AH131305) (USE WITH E65288)
..	AH204383	1	Hydraulic Pump	105CC, (REMANUFACTURED), (SUB FOR AH131385, AH160790 OR AH164940) (USE WITH E65288) (SUB AH221234)
..	AH221234	1	Pump	105CC, (REMANUFACTURED), (SUB FOR AH218588)
..	E65288	1	O-Ring	-

HYDROSTATIC DRIVE PUMP, HOUSING, SWASHPLATE, AND SERVO (VARIABLE DISPLACEMENT) (PLANETARY)
