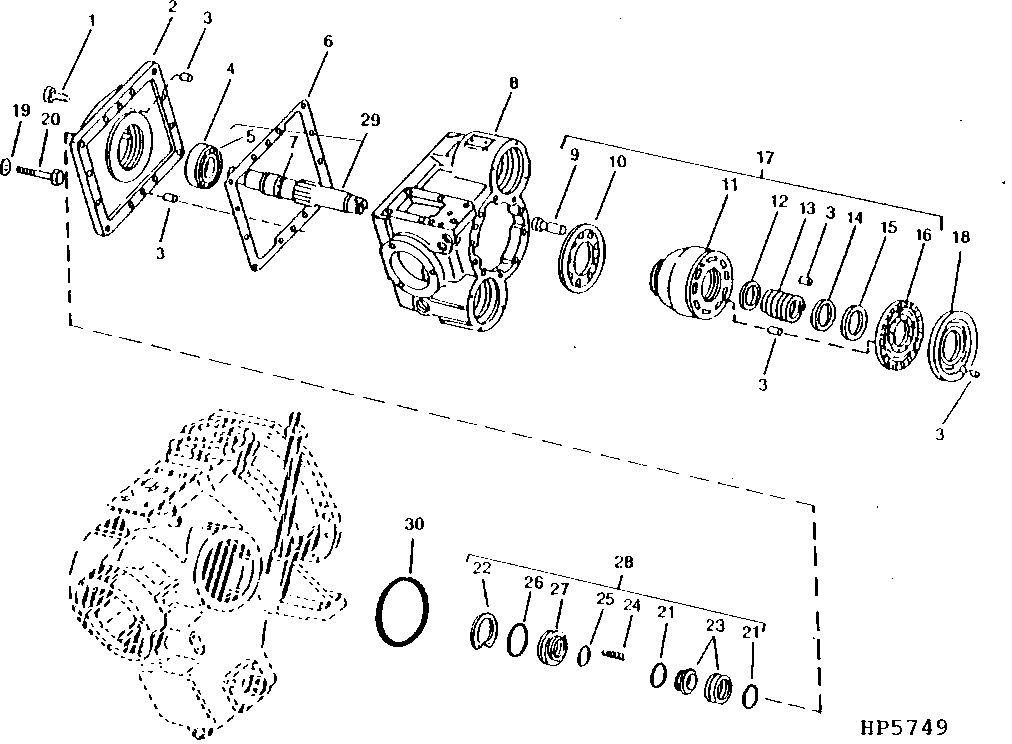

HYDROSTATIC DRIVE PUMP, FRONT COVER AND SHAFT (PLANETARY)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1821	12	CAP SCREW	7/16" X 1-1/4"
2	-	1	Part 2	-
3	H63271	5	Pin	-
4	JD7297	1	Bearing Cup	-
5	-	1	Part 5	(B)
6	H214789	1	Gasket	(SUB FOR H115060)
7	-	1	Part 7	(B)
8	-	1	Part 8	-
9	AH131388	1	Piston	(INCLUDES 9 PISTONS)
10	-	1	Part 10	(A)
11	-	1	Part 11	(A)
12	-	1	Part 12	(A)
13	-	1	Part 13	(A)
14	-	1	Part 14	(A)
15	-	1	Part 15	(A)
16	H135700	1	Plate	-
17	AH131387	1	Rotator	ROTATING GROUP ASSEMBLY, (INCLUDES PARTS MARKED (A))
18	H138900	1	Plate	-
19	24H1850	4	Washer	17/32" X 1-1/4" X 0.180"
20	19M7791	4	Bolt	M12 X 40
21	N196034	2	O-Ring	-
22	N126612	1	Snap Ring	-
23	-	1	Part 23	(KIT AN193085)
24	N191174	6	Compression Spring	-
25	U15415	1	O-Ring	-
26	R112857	1	O-Ring	-
27	-	1	Part 27	(KIT AN193085)
28	AN193085	1	Seal Kit	HYDROSTATIC DRIVE PUMP
29	AH133663	1	Shaft	(INCLUDES PARTS MARKED (B))
30	R63308	1	O-Ring	-
..	AH160785	1	Hydraulic Pump Reman	75CC, (SUB FOR AH131305) (USE WITH E65288)
..	AH204383	1	Hydraulic Pump	105CC, (REMANUFACTURED), (SUB FOR AH131385, AH160790 OR AH164940) (USE WITH E65288) (SUB AH221234)
..	AH221234	1	Pump	105CC, (REMANUFACTURED), (SUB FOR AH218588)
..	E65288	1	O-Ring	-

HYDROSTATIC DRIVE PUMP, FRONT COVER AND SHAFT (PLANETARY)

Нет текстового описания
