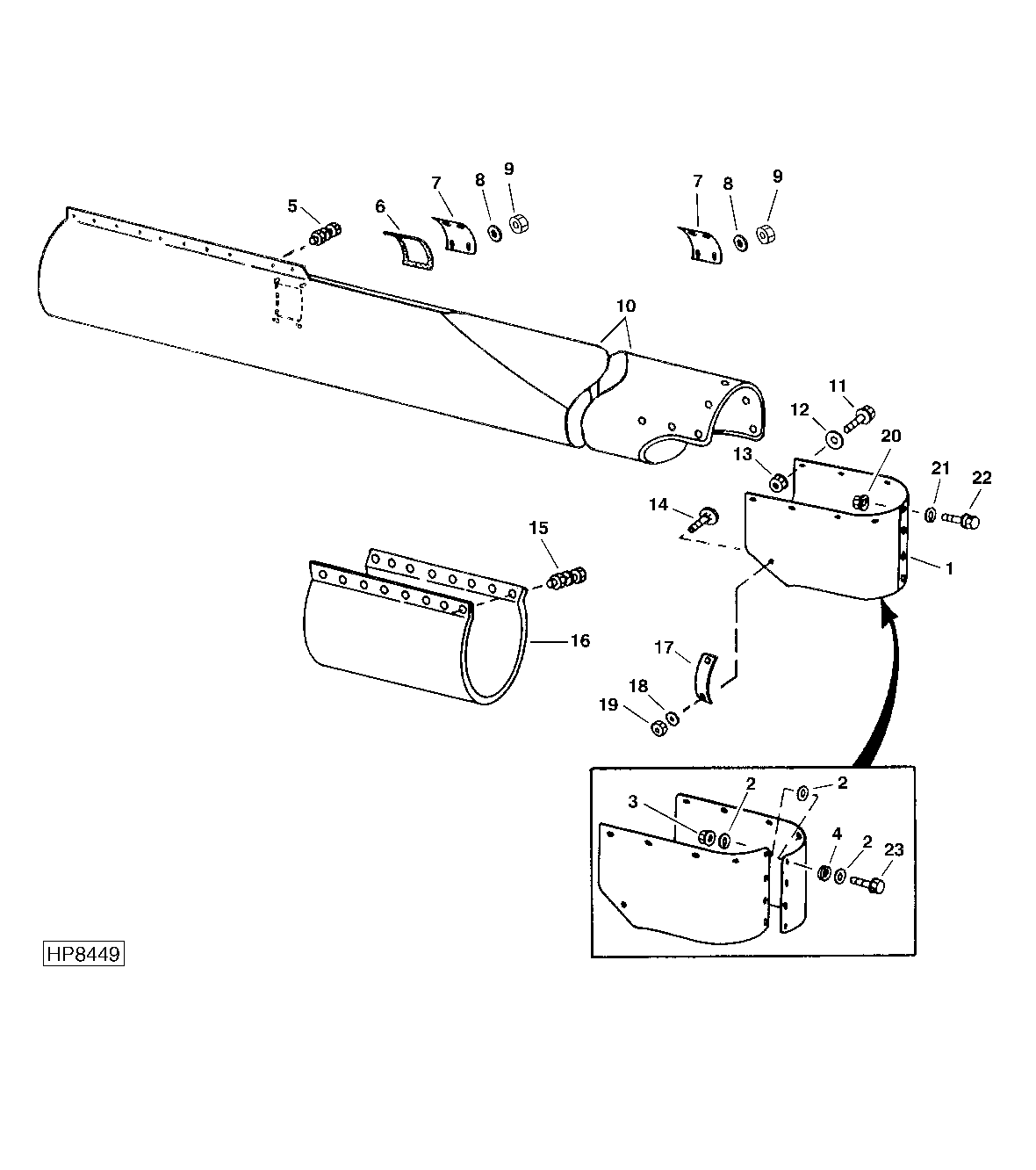

HORIZONTAL UNLOADING AUGER HOUSING (17 AND 20 FT.)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H149780	1	Spout	-
2	28H5	3	Washer	0.269" X 0.405" X 1/4"
3	14M7303	3	Flange Nut	M6
4	24H1291	9	Washer	21/64" X 1-15/32" X 7/64"
5	19M7868	11	Screw	M8 X 30
5	14M7396	11	Lock Nut	M8
6	-	1	Part 7	20', CUT FROM H81330
7	H96652	2	Door	20'
8	24M7207	8	Washer	8.400 X 24 X 2 mm, 20'
9	14H785	8	Nut	5/16", 20'
10	AH145049	1	Housing	17', (SOLID)
10	AH140335	1	Housing	17', (PERFORATED)
10	AH145050	1	Housing	20', (SOLID)
10	AH113392	1	Housing	20', (PERFORATED)
11	19M7867	8	Screw	M8 X 25
12	24M7207	8	Washer	8.400 X 24 X 2 mm
13	14M7298	8	Flange Nut	M8
14	03M7184	2	Bolt	M8 X 20
15	19M7897	10	Screw	M8 X 35
15	14M7298	10	Flange Nut	M8
16	H127998	1	Cover	17', USE WITH PERFORATED AUGER HOUSING
16	H100027	1	Cover	20', USE WITH PERFORATED AUGER HOUSING
17	H141450	1	Strap	-
18	24H1291	4	Washer	21/64" X 1-15/32" X 7/64"
19	14M7298	2	Flange Nut	M8
20	14M7298	1	Flange Nut	M8
21	24H1291	1	Washer	21/64" X 1-15/32" X 7/64"
22	19M7867	2	Screw	M8 X 25
23	19M7863	3	Screw	M6 X 25
23	19M7796	3	Screw	M6 X 30

HORIZONTAL UNLOADING AUGER HOUSING (17 AND 20 FT.)
