Grain Tank Wiring Harness, Light, Limit Switch and Level Monitor

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AD2062R	1	Bulb	27 W
3	19M7865	1	Screw	M8 X 16, For Wiring Harness Ground Wire
3	14M7298	1	Flange Nut	M8
4	19M7866	2	Screw	M8 X 20
4	14M7298	2	Flange Nut	M8
5	R78053	1	Electrical Connector Assy	-
6	RE12366	1	Electrical Connector Assy	-
6	R104701	1	Elec. Connector Terminal	-
7	57M7305	1	Elec. Connector Housing	-
7	57M7285	2	Elec. Connector Terminal	Cavity A, C
7	57M9219	2	Elec. Connector Seal	Cavity A, C
7	57M10772	1	Elec. Connector Cable Seal	Cavity B
7	57M7307	1	Electrical Connector Assy	-
8	H133824	1	Bracket	-
9	19M7775	4	Screw	M6 X 16
9	14M7303	4	Flange Nut	M6
10	AH121475	1	Sensor	-
11	H226570	1	Bracket	SUB FOR H133645 OR H210004
12	T32231	1	Clamp	-
13	19M6755	1	Cap Screw	M6 X 35
13	19M7865	2	Screw	M8 X 16
14	24M7054	3	Washer	6.400 X 12 X 1.600 mm
14	24M7139	3	Washer	6.400 X 18 X 1.600 mm
15	AH89557	1	Clip	-
16	AH96317	1	Clip	-
17	19M7865	1	Screw	M8 X 16
17	14M7298	1	Flange Nut	M8
18	AH142999	1	Switch	Gasket INCLUDES H148702
18	AH155480	1	Module	-
18	AH163979	1	Fitting Kit	Controller W/ Harness INCLUDES AH155480
19	AH117301	3	Clamp	-
19	H130637	10	Clamp	-
20	AH162651	1	Wiring Harness	SUB FOR AH154837
21	H118425	1	Electrical Connector Assy	-
22	RE12362	1	Electrical Connector Assy	-
23	RE12363	1	Electrical Connector Assy	-
23	R78060	1	Elec. Connector Terminal	-
23	R78063	1	Elec. Connector Seal	-
24	AXE84599	1	Wiring Harness	Jumper Harness, Service Light USE WITH CXT17293
25	57M8022	1	Elec.Connect Locking Device	-
25	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
25	57M8639	1	Elec. Connector Housing	-
2A	AH148210	1	Headlight	-
2A	AH152451	1	LAMP	-
2B	CXT17293	1	Floodlamp	SUB FOR AH148210, ALSO ORDER AXE84599

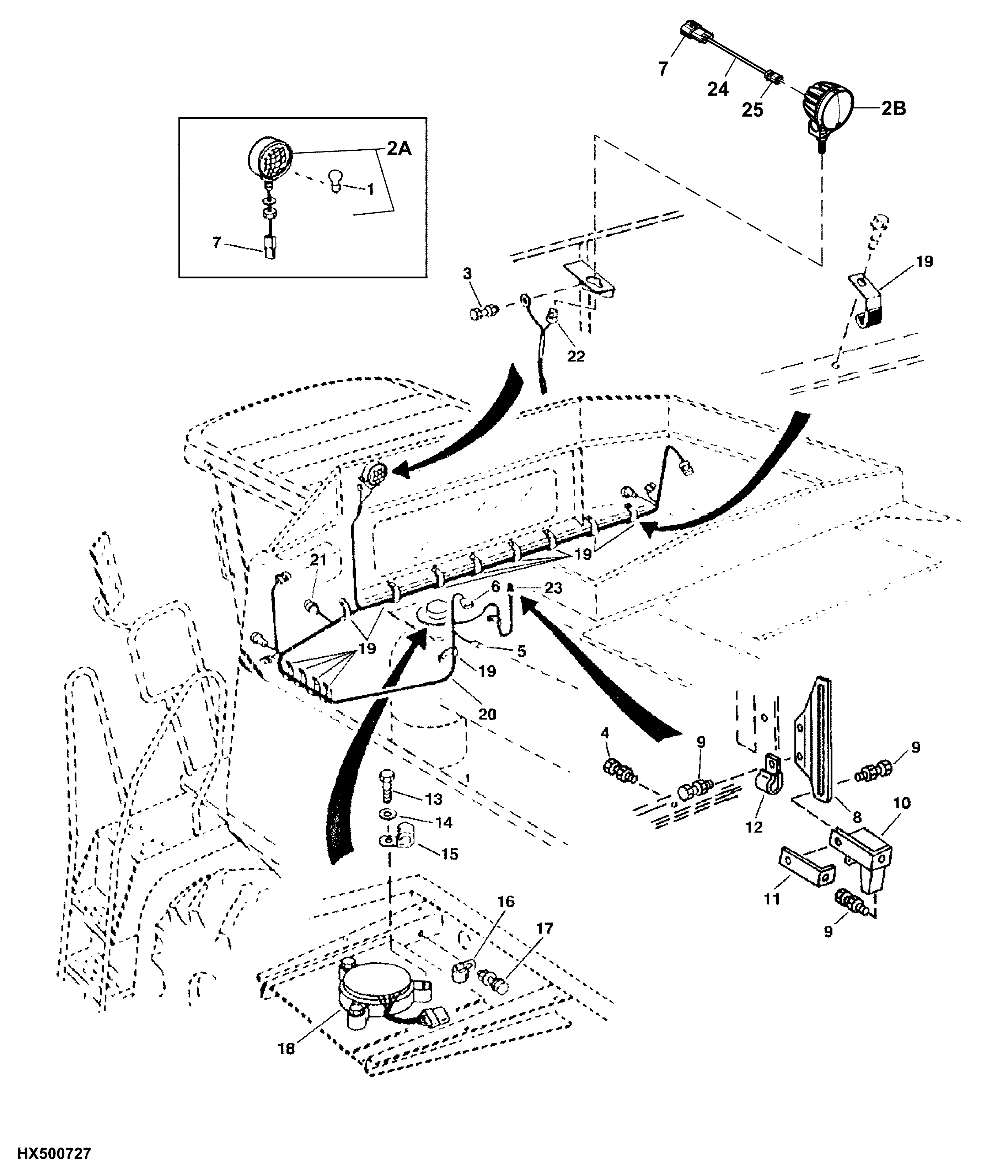

Grain Tank Wiring Harness, Light, Limit Switch and Level Monitor
