Grain Tank Dual Level Monitor Harness and Unloading Auger Light

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H130637	5	Clamp	-
2	H226570	1	Bracket	SUB FOR H133645 OR H210004
3	AH121475	1	Sensor	-
4	H133824	1	Bracket	-
5	19M7775	4	Screw	M6 X 16
5	14M7303	4	Flange Nut	M6
6	AH89557	1	Clip	-
7	AH126541	1	Clamp	-
8	19H1974	1	Cap Screw	1/2" X 2-3/4"
9	24H1111	2	Washer	17/32" X 1-1/16" X 0.090"
10	H145112	1	Clamp	SUB FOR R67377
11	AH98901	1	Headlight	-
12	AR42591	1	Headlight	35 WATT
13	R31250	1	BEZEL	-
15	H133178	1	Clamp	-
16	19M7800	4	Screw	M8 X 50
16	14M7396	4	Lock Nut	M8
17	14M7298	2	Flange Nut	M8
18	AH89557	2	Clip	-
19	H76064	4	Clip	-
19	H76064	5	Clip	-
20	AH148028	1	Wiring Harness	For All Auger Lengths
20	AH159962	1	Wiring Harness	-
21	M66044	7	Tie Band	-
22	AH128986	1	Wiring Harness	-
23	RE12363	1	Electrical Connector Assy	-
23	R78060	1	Elec. Connector Terminal	-
23	R78063	1	Elec. Connector Seal	-
24	RE12363	1	Electrical Connector Assy	-
24	R78060	1	Elec. Connector Terminal	-
24	R78063	1	Elec. Connector Seal	-
25	R78053	1	Electrical Connector Assy	-
26	45M7043	1	Pin Fastener	12 X 60 mm
27	AXE84599	1	Wiring Harness	Jumper Harness, Service Light USE WITH CXT17293
28	57M9219	2	Elec. Connector Seal	Cavity A, C
28	57M7285	2	Elec. Connector Terminal	Cavity A, C
28	57M7305	1	Elec. Connector Housing	-
28	57M10772	1	Elec. Connector Cable Seal	Cavity B
28	57M7307	1	Electrical Connector Assy	-
29	57M8639	1	Elec. Connector Housing	-
29	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
29	57M8022	1	Elec.Connect Locking Device	-
..	BH78464	1	Complete Goods/Ship. Bundle	Grain Tank Level Monitor
14A	AH148210	1	Headlight	-
14A	AH162581	1	Fitting Kit	ALSO ORDER AF3892R WHEN SUBBING FOR AH98901
14B	CXT17293	1	Floodlamp	SUB FOR AH148210, ALSO ORDER AXE84599

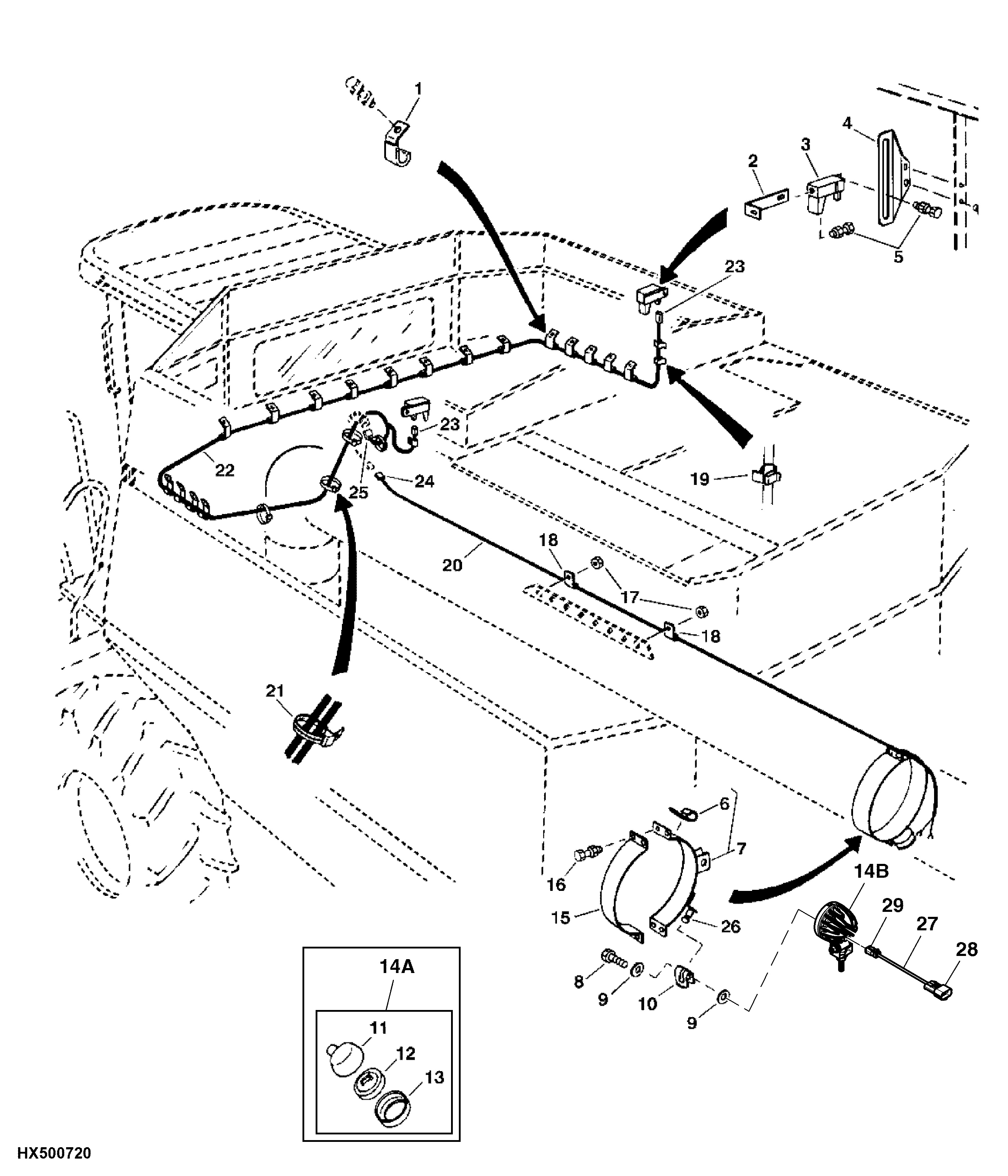

Grain Tank Dual Level Monitor Harness and Unloading Auger Light
