Four-Wheel Drive Hydraulic Lines and Hoses, LH Side

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
2	38H1163	2	Adapter Fitting	-
3	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
4	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
5	24M7114	1	Washer	19 X 30 X 4 mm
6	T81029	1	Nut	17.475 mm (11/16")
7	AH130611	1	Oil Line	-
8	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
9	38H1168	1	Adapter Fitting	-
10	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	H114865	6	Clamp	-
12	AH130447	1	Oil Line	(RETURN)
13	H112567	2	Plate	-
14	03M7245	4	Bolt	M8 X 55
14	14M7298	4	Flange Nut	M8
15	H114898	6	Clamp	-
16	H114901	3	Plate	-
17	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
18	38H1309	1	Adapter Fitting	-
19	14M7298	3	Flange Nut	M8
19	19M8039	2	Screw	M8 X 80
20	H127589	2	Clamp	-
21	H121163	1	Strap	-
22	H128515	2	Clamp	-
23	AH135620	1	Oil Line	(PRESSURE)
24	AH125941	2	Hydraulic Hose	30.1752" X 1625 mm (64") X 30.1752", LGTH = 1625 mm, FORWARD AND REVERSE PRESSURE (4 WHEEL DRIVE)
25	19M8162	16	Screw	M10 X 40
26	38H1160	1	Adapter Fitting	-
27	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
28	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
29	38H1024	1	Tee Fitting	-
30	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
31	T78313	2	O-Ring	32.918 X 3.531 mm (1.296" X 0.139")
32	AH133941	1	Manifold	42 GPM FWD PRESS
33	AH133942	1	Manifold	30 GPM REV PRESS
34	38H1329	2	Adapter Fitting	-
35	H131163	1	Strap	-

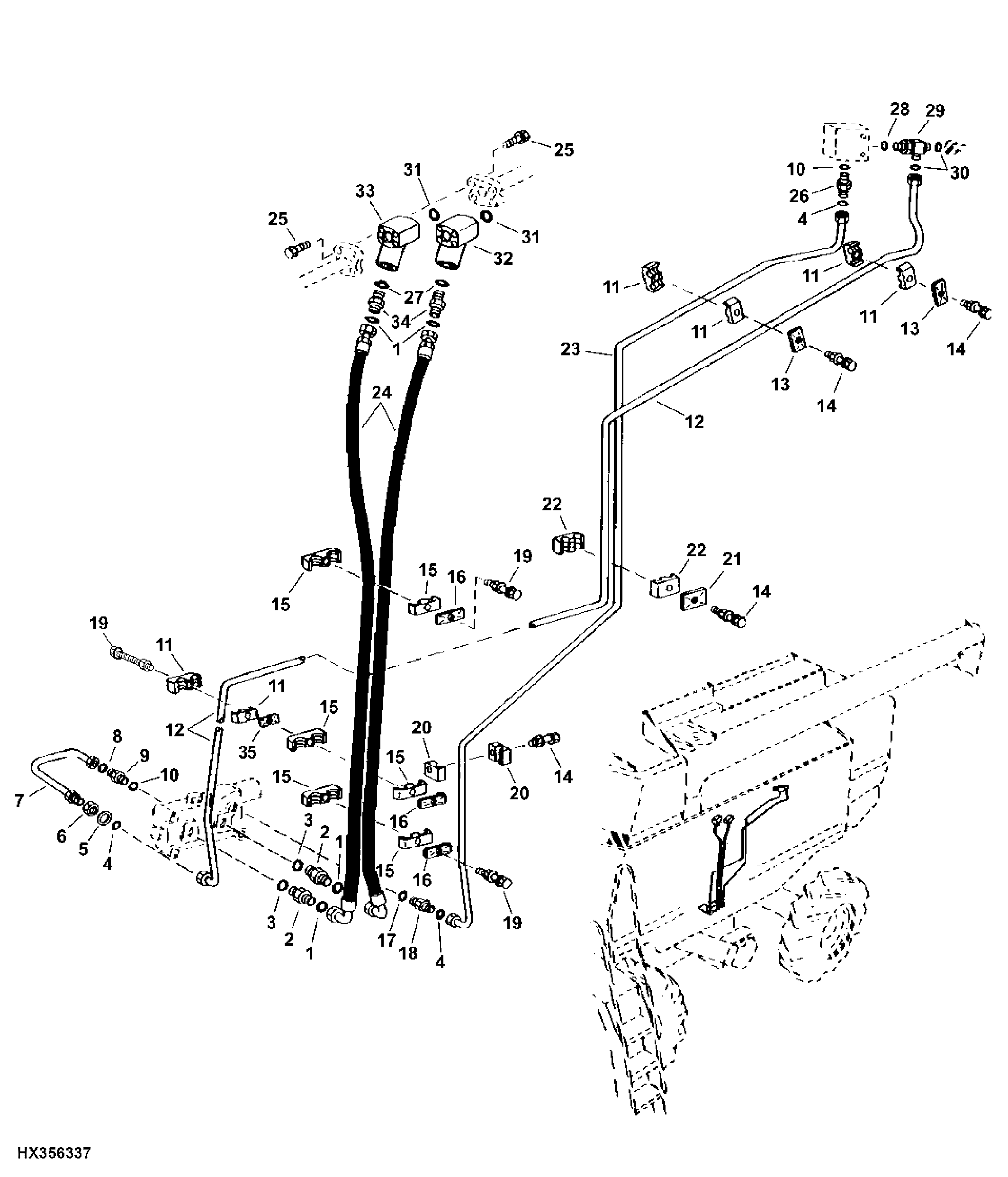

Four-Wheel Drive Hydraulic Lines and Hoses, LH Side
