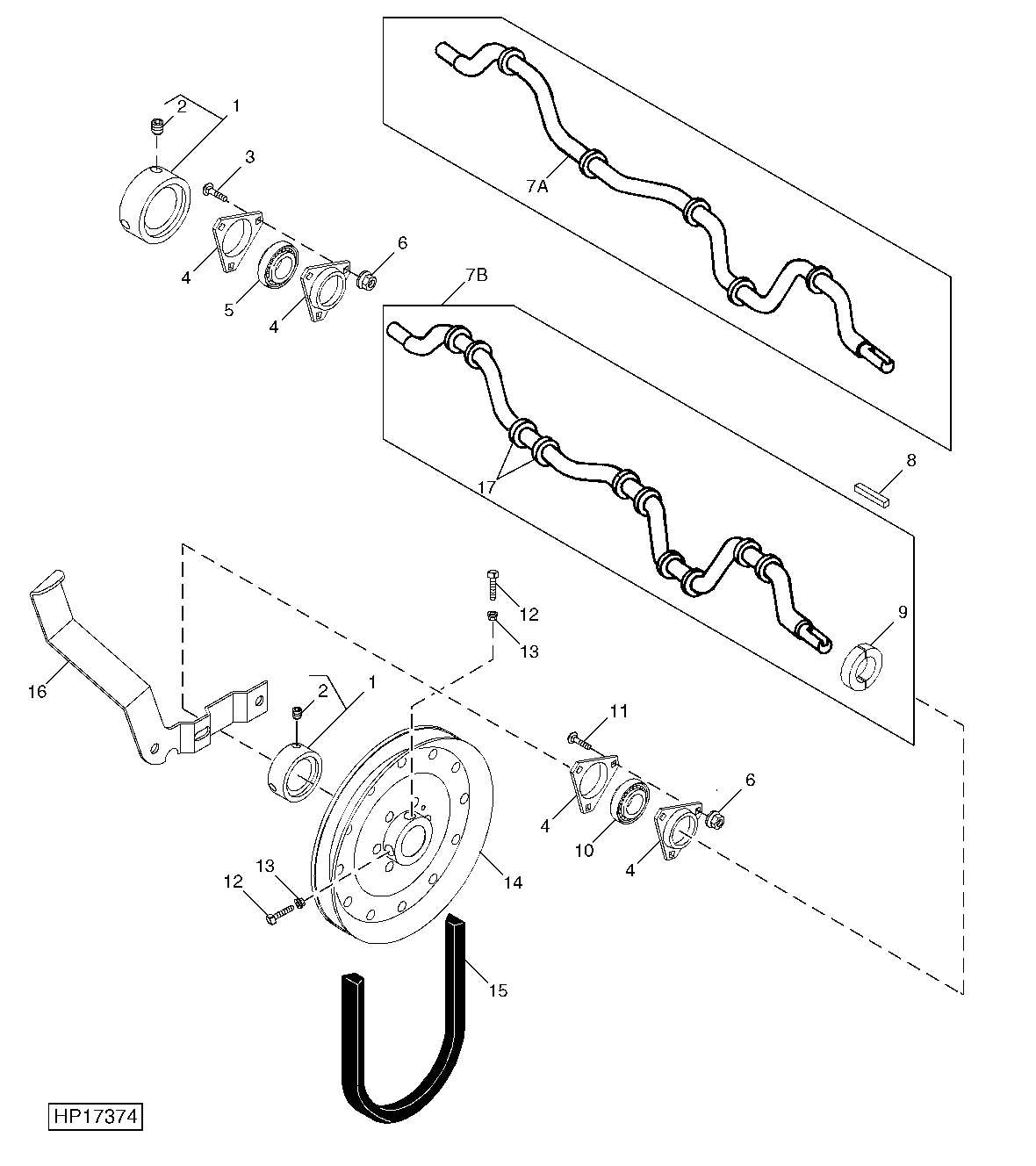

Straw Walker Crankshaft and Straw Spreader Drive

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH133191	3	Eccentric Locking Collar	LH ON FRONT CRANK AND BOTH ON REAR CRANK
2	-	3	Part 2	-
3	03M7191	12	Bolt	M10 X 25
4	H103265	8	Pressed Flanged Housing	-
5	AZ19427	1	Ball Bearing	FRONT LH ONLY
5	JD39104	1	Ball Bearing	RH REAR
6	14M7296	6	Flange Nut	M10
8	H138344	1	Shaft Key	-
9	H135519	1	Washer	FRONT RH ONLY
10	JD39104	1	Ball Bearing	LH REAR
10	AH132823	1	Ball Bearing	FRONT RH ONLY
11	03M7190	1	Bolt	M10 X 20
12	H138435	2	Set Screw	-
13	14M7274	2	Nut	M10
14	AH114359	1	Pulley	STRAW SPREADER DRIVE (LH REAR) (I D 1.370)
15	H128234	1	V-Belt	LGTH =5510 mm, WIDTH = 16 mm, STRAW SPREADER DRIVE
16	H140020	1	Guide	-
17	AH141393	10	Locking Collar	-
7A	AH131347	1	Shaft	FRONT CRANK ONLY, (SUB AH151331, (5) H152464, (5) H152465, (5) JD7759, (20) 03M7218, (20) 14M7400, H155973 AND N134803)
7A	AH136413	1	Shaft	REAR CRANK ONLY, (SUB FOR AH136525) (SUB AH145602, (5) AH168158, (5) JD7759, (20) 03M7218 AND (20) 14M7400)
7B	AH151331	1	Crankshaft	FRONT CRANK ONLY, (SUB FOR AH139915, AH145601 OR AH210406)
7B	AH210407	1	Crankshaft	REAR CRANK ONLY
7B	AH145602	1	Shaft	REAR CRANK ONLY, (SUB FOR AH139917 AND AH210407)

Straw Walker Crankshaft and Straw Spreader Drive
