Hydrostatic Oil Cooler Lines and Hoses ( - 640300)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T76938	6	O-Ring	-
2	T77858	4	O-Ring	-
3	AH128775	1	Hydraulic Hose	LGTH = 650 mm, Inlet
4	AH128776	1	Hydraulic Hose	LGTH = 660 mm, Return
5	19M8039	1	Screw	M8 X 80
5	14M7298	1	Flange Nut	M8
6	19M7801	1	Screw	M8 X 60
6	14M7298	1	Flange Nut	M8
7	H130452	2	Clamp	-
8	28H1720	1	Bushing	0.423" X 0.675" X 27/32"
9	R72659	1	Clamp	-
10	H112567	2	Plate	-
11	H115379	4	Clamp	-
12	AH128770	1	Oil Line	-
13	AH128772	1	Oil Line	-
14	H130451	1	Bracket	-
15	19M7801	2	Screw	M8 X 60
15	14M7298	2	Flange Nut	M8
16	19M7866	3	Screw	M8 X 20
16	14M7298	3	Flange Nut	M8
17	AH125716	1	Hydraulic Hose	LGTH = 1125 mm, Inlet
18	38H1431	1	Elbow Fitting	-
19	U12547	1	O-Ring	-
20	H133674	1	Bracket	-
21	H114432	6	Clamp	-
22	19M8321	3	Screw	M6 X 45
22	14M7303	3	Flange Nut	M6
23	AH124006	1	Hydraulic Hose	LGTH = 800 mm, Return
24	AH132839	1	Oil Line	SUB AH135170 AND AH135171
24	AH135170	1	Oil Line	-
25	AH130567	1	Hydraulic Hose	LGTH = 305 mm, Upper Return
25	AH135171	1	Hydraulic Hose	-
26	38H1194	1	Adapter Fitting	-
27	R29936	1	O-Ring	-
28	R29936	1	O-Ring	-
29	38H1037	1	Elbow Fitting	-
30	T76938	2	O-Ring	-
31	AH126242	1	Hydraulic Hose	LGTH = 730 mm, Suction
32	38H1164	1	Adapter Fitting	-
33	R29936	1	O-Ring	-

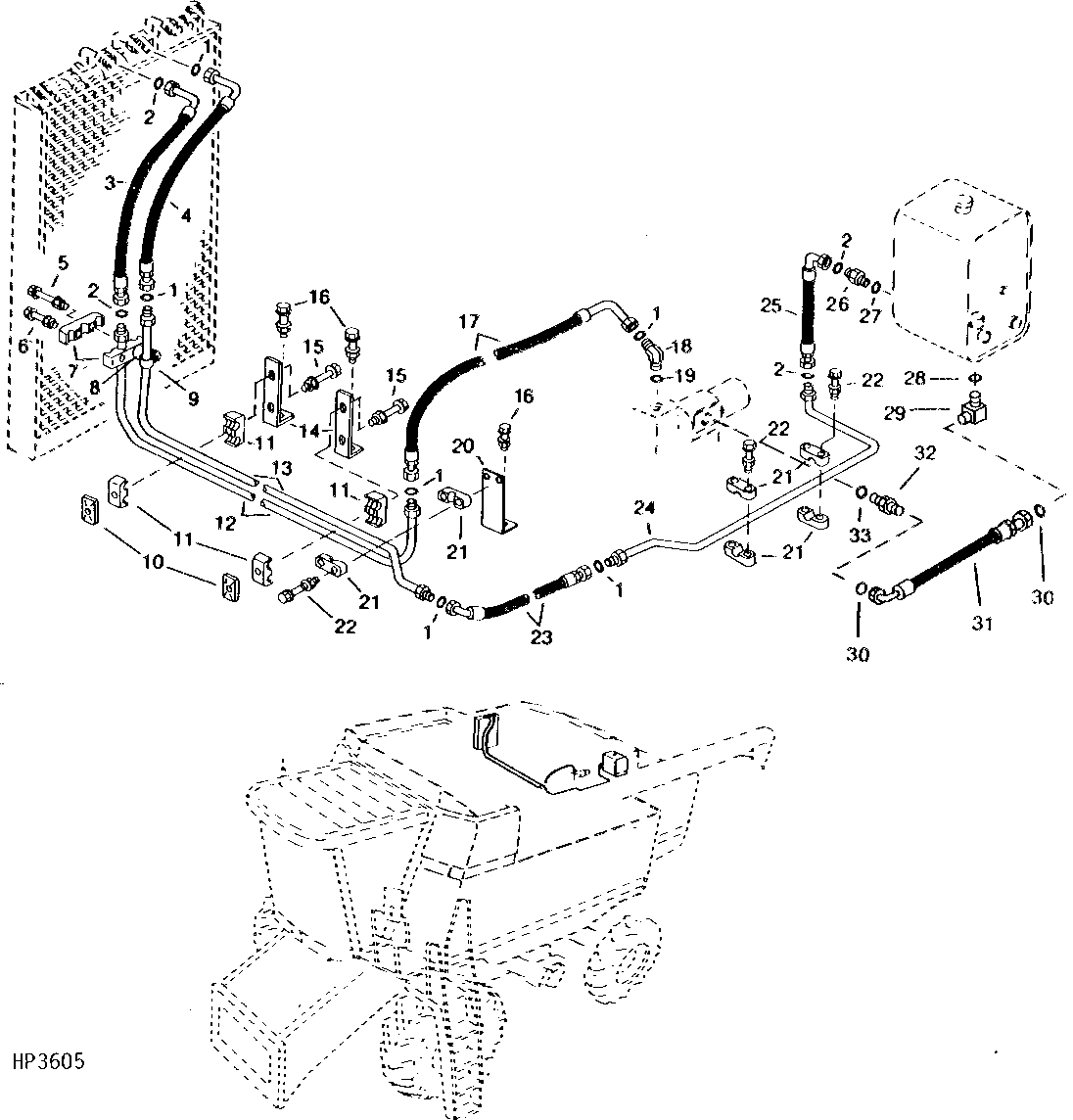

Hydrostatic Oil Cooler Lines and Hoses ( - 640300)
