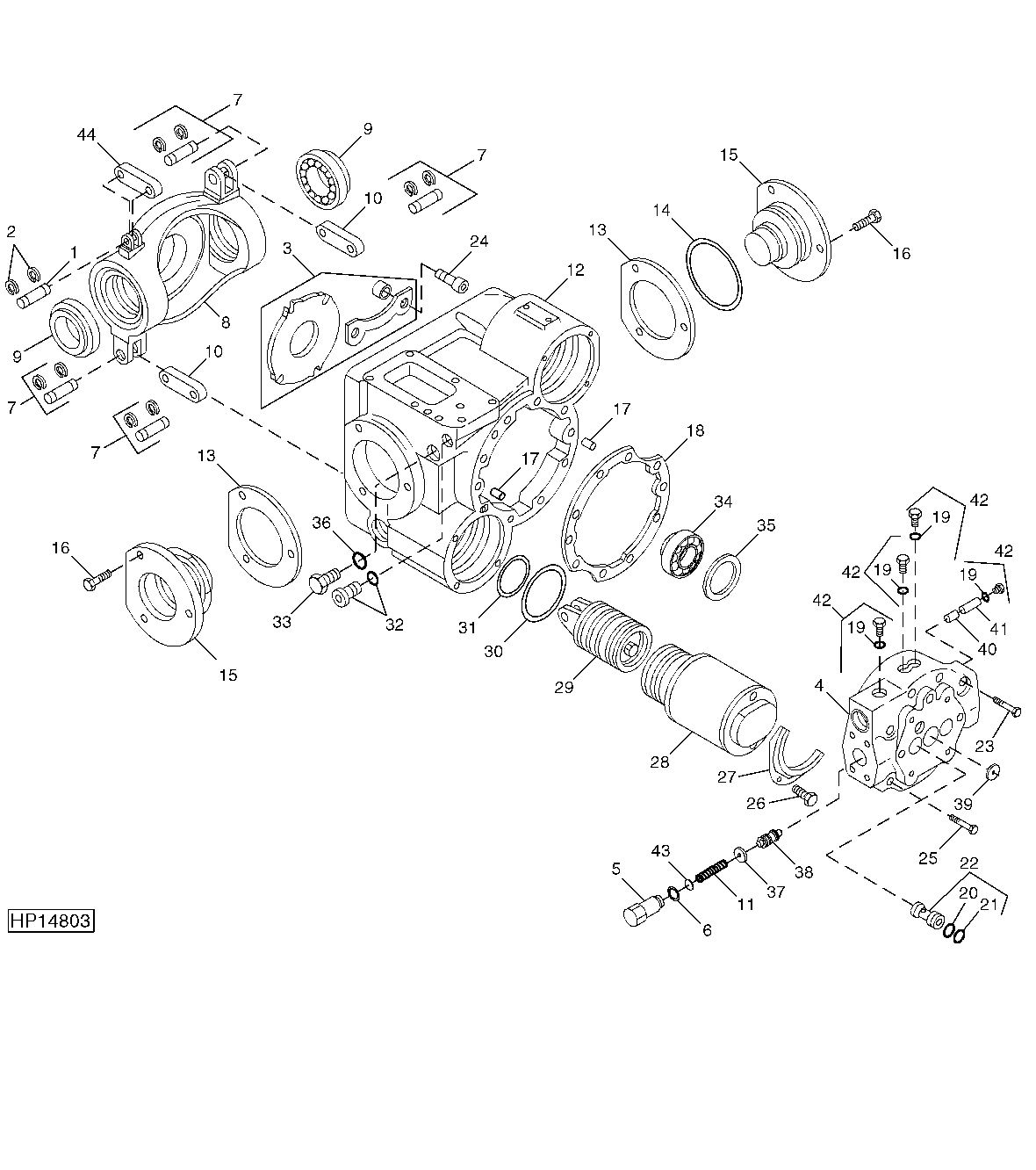

HYDROSTATIC DRIVE PUMP, HOUSING, SWASHPLATE, AND SERVO CYLINDERS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N126603	1	Pin Fastener	-
2	M48000	2	Snap Ring	-
3	AH131391	1	Holder Kit	HOLD DOWN
4	-	1	Part 4	-
5	H135215	1	Holder	-
6	R26906	1	O-Ring	-
7	AN274375	2	Pin Fastener	-
8	-	1	Part 8	-
9	JD9076	2	Bearing Cone	-
9	JD9133	2	Bearing Cup	-
10	N126600	2	Link	-
11	H135211	1	Compression Spring	-
12	-	1	Part 13	-
13	AN122506	1	Shim	FOUR, 0.002", 0.005", 0.010" AND 0.015"
14	T14065	2	O-Ring	-
15	-	2	Part 16	-
16	19H2284	6	Cap Screw	3/8" X 7/8"
17	H63271	2	Pin	-
18	N376359	1	Gasket	(SUB FOR H135498 OR N126584) ( ORDER FH319816)
18	FH319816	1	Gasket	-
19	R30903	1	O-Ring	-
20	32246	2	O-Ring	(SUB R152879)
20	R152879	2	O-Ring	-
21	W23690	2	Back-Up Ring	-
22	AN122502	2	Check Valve	-
23	19H1944	6	Cap Screw	3/8" X 2-3/4"
24	19H3053	4	Screw	5/16" X 1"
25	19H1800	2	Cap Screw	3/8" X 1-1/2"
26	19H3176	6	Screw	0.164" X 0.380"
27	N126602	2	Retainer	-
28	AZ46634	2	Housing	(SUB FOR AN122493) INCLUDES R53543 AND M43518 O-RINGS
29	AH131172	2	Piston	INCLUDES KEYS 1, 2 AND 10
30	R53543	2	O-Ring	-
31	M43518	2	O-Ring	-
32	AN122518	1	Fitting Plug	INCLUDES O-RING
33	R51031	1	Fitting	-
34	AN122507	1	Tapered Roller Bearing	-
35	AN122509	1	Shim	FIVE, 0.002", 0.005", 0.010" AND 0.015"
36	R28782	2	O-Ring	-
37	H135213	1	Washer	-
38	H135214	1	Valve Spool	-
39	H135567	1	Orifice	-
40	H135503	1	Needle Roller	-
41	H135504	1	Needle Roller	-
42	AT63272	4	Fitting	-
43	AH129278	1	Valve Kit	SHIM
44	N126607	1	Link	-
..	AH160785	1	Hydraulic Pump Reman	(USE WITH E65288)

HYDROSTATIC DRIVE PUMP, HOUSING, SWASHPLATE, AND SERVO CYLINDERS
