Header and Reel Pump, Unloading Augers, Straw Chopper, Cleaning Fan, Feeder House Drive Belts

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H151952	1	V-Belt	LGTH = 4300 mm,WIDTH = 31.75 mm, SUB FOR H140160
1	H125565	1	V-Belt	LGTH = 4250 mm,WIDTH = 32 mm
2	AH126837	1	Link Chain	Roller, Type 60H - 19 mm (3/4") Pitch, 198 Links, Regular Speed
2	AH146359	1	Link Chain	Roller, Type 60H - 19 mm (3/4") Pitch, 206 Links, Slow Down Speed, SUB FOR AH140004
3	P47885	1	V-Belt	Chopper In Windrow Or Forward Position
3	H23950	1	V-Belt	Chopper In Windrow Or Forward Position
3	H125381	1	V-Belt	LGTH = 4450 mm,WIDTH = 22.33 mm, Chopper In Rear Operating Position
3	H175434	1	V-Belt	LGTH = 4420 mm,WIDTH = 35.7 mm, Chopper In Rear Operating Position
4	H137264	1	V-Belt	LGTH = 2445 mm, WIDTH = 31.75 mm, 490-980 RPM
4	H152180	1	V-Belt	LGTH = 2490 mm, WIDTH = 31.8 mm, 490-980 RPM
4	H152146	1	V-Belt	LGTH = 2705 mm, WIDTH =31.8 mm, 750-1600 RPM
4	H140404	1	V-Belt	LGTH =2615 mm,WIDTH = 31.75 mm, 50-1350 RPM, SUB FOR H135417
5	H126345	1	V-Belt	LGTH = 4650 mm, WIDTH = 31.8 mm, Fixed Speed Feeder House With Reverser
6	H125711	1	V-Belt	LGTH = 4520 mm, WIDTH = 38.10 mm, Variable Speed Feeder House
7	H128234	1	V-Belt	LGTH =5510 mm, WIDTH = 16 mm, Straw Spreader
8	H125380	1	V-Belt	LGTH = 4775 mm, WIDTH = 22.33 mm, Straw Chopper Drives, Front
8	H157726	1	V-Belt	LGTH = 4850 mm, WIDTH = 35.7 mm, Straw Chopper Drives, Fine Cut, Front

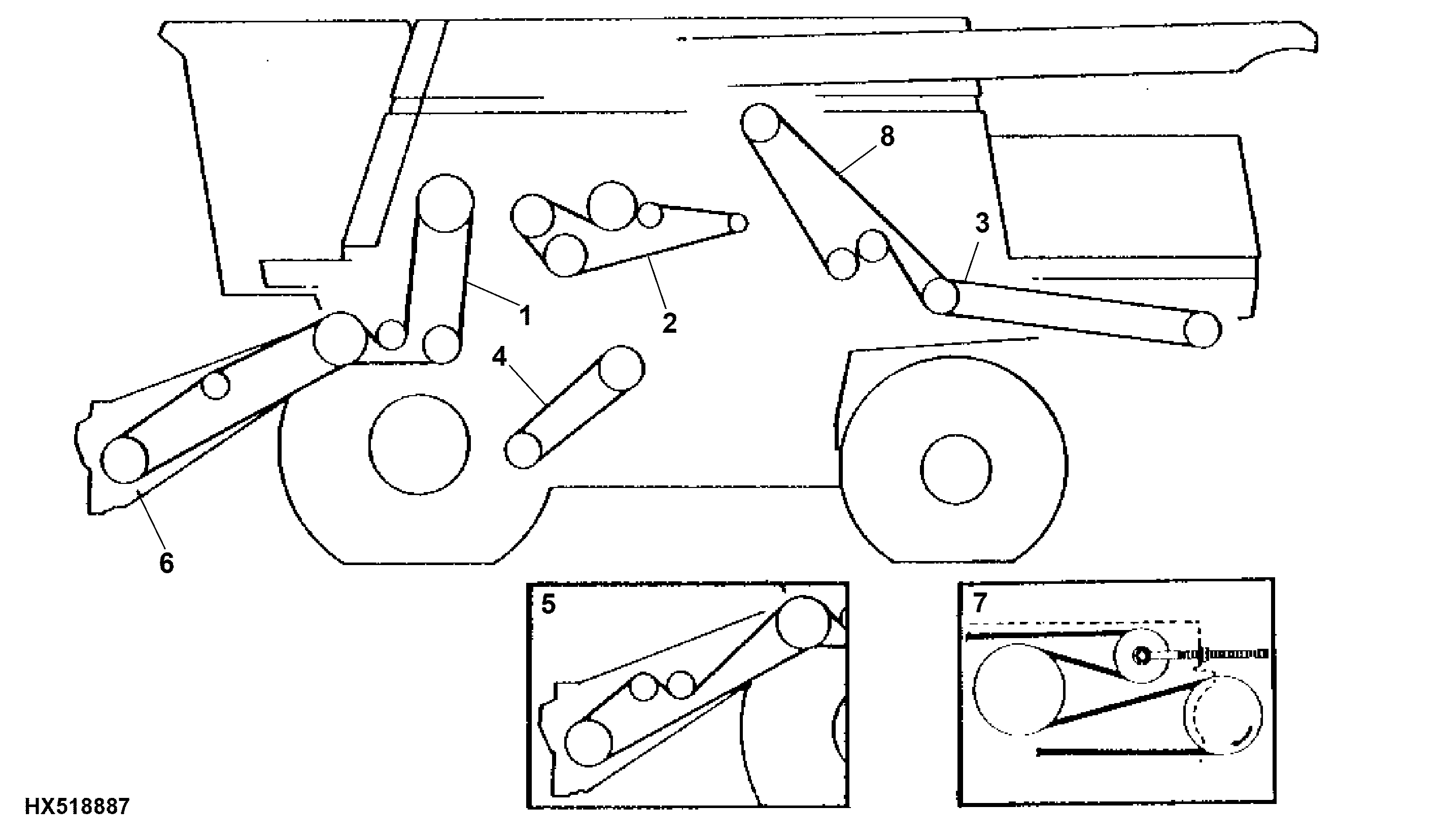

Header and Reel Pump, Unloading Augers, Straw Chopper, Cleaning Fan, Feeder House Drive Belts
