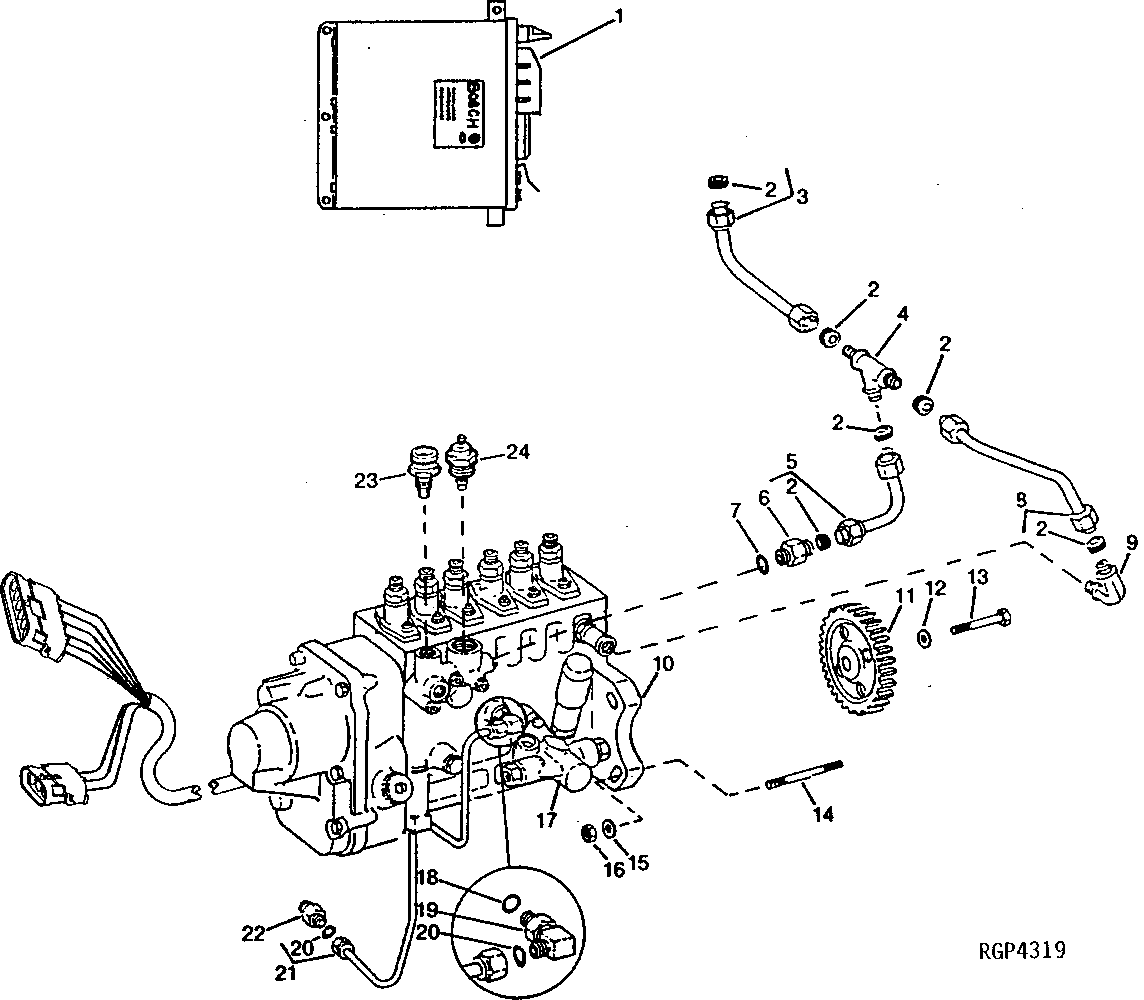

FUEL INJECTION PUMP, LUBE LINE AND ENGINE CONTROLLER

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SE502809	1	Engine Controller Reman	(C) 12 V, REMAN FOR RE502404
1	RE502404	1	Engine Controller	(MARKEDRE502404) (SUB FOR RE48731, RE501809 OR RE502146) (WITH ESN)
1	RE502125	1	Harness Kit	(MOUNTING KIT)
2	R51936	6	Sealing Washer	-
3	RE30920	1	Fuel Line	-
4	R97061	1	Tee Fitting	-
5	RE30833	1	Fuel Line	-
6	R91824	1	Fitting	-
7	R48693	1	Washer	-
8	RE35684	1	Fuel Line	-
9	R67364	1	Elbow Fitting	-
10	RE63514	1	Fuel Injection Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED")
10	SE500443	1	Fuel Injection Pump Reman	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED") (ROBERT BOSCH) (PES6P120A720RS3347), (SUB FOR RE63514, THIS APPLICATION (REMAN FOR RE63514))
10	RE502259	1	Fuel Injection Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED") (PES6P120A720RS3404), (FOR HARVESTER APPLICATIONS, REUSE TRANSFER PUMP INLET ADJUSTABLE ELBOW FROM THE OLD PUMP OR ORDER RE34128 ELBOW.) (REMANUFACTURED ORDER SE500444), (ALSO ORDER R121164 AND (4) R121195)
10	SE500444	1	Fuel Injection Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED") (REMAN FOR RE502259)
10	RE57372	1	Fuel Injection Pump	("SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED")
10	SE500442	1	Fuel Injection Pump Reman	(ROBERT BOSCH) (PES6P120A720RS3184), (SUB FOR RE57372, THIS APPLICATION (REMAN FOR RE57372))
11	R121164	1	Gear	(USE WITH RE502259 OR SE500444)
11	R104590	1	Gear	(USE WITH RE57372, RE63514, SE500442 OR SE500443)
12	R63845	4	Washer	-
13	19H3690	4	Screw	3/8" X 3/4", (USE WITH R104590)
13	R121195	4	Cap Screw	(USE WITH R121164)
14	R114130	4	Stud	(SUB FOR R55396, THIS APPLICATION)
15	M72490	4	Washer	-
16	14H1090	4	Nut	3/8", (SUB FOR E55662, THIS APPLICATION)
17	RE46252	1	Fuel Pump	-
18	R73858	1	O-Ring	-
19	AR88903	1	Elbow Fitting	-
20	R67264	2	Packing	-
21	RE43369	1	Oil Line	-
22	R76822	1	Fitting	-
23	RE28217	1	Fuel Temperature Sensor	(Use With Duetz Connector)
23	RE506424	1	Fuel Temperature Sensor	(ALSO ORDER 57M7278, (2) 57M7829, 51M4238)
24	R89014	1	Solenoid	(SHUT-OFF HOUSING)
24	R99047	1	O-Ring	-
..	51M4238	1	Sealing Ring	(SUB FOR R53899)

FUEL INJECTION PUMP, LUBE LINE AND ENGINE CONTROLLER
