Air Conditioning System ( For R - 12 Refrigerant ) ( - 650300)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	P51212	1	O-Ring	-
2	AH126044	1	Hose	Pressure
3	R10093	1	O-Ring	-
4	AH126036	1	Refrigerant Hose	LGTH = 5780 mm, Pressure, SUB FOR AH136505
5	RE24307	1	Pressure Switch	High Pressure
6	AH150219	1	Oil Cooler	Oil Cooler and Condenser Together, SUB FOR AH120836 OR AH136172
7	14M7296	2	Flange Nut	M10
8	H128194	1	Bracket	-
9	H77337	1	Washer	-
10	24M7178	2	Washer	10.500 X 30 X 2.500 mm
11	N61703	1	SPRING	-
12	28H1495	1	Spacer	0.493" X 0.675" X 1"
13	H118539	1	Eyebolt	-
14	19M7786	1	Screw	M10 X 30
15	H118543	1	Bushing	-
16	19M8118	1	Cap Screw	M10 X 35
17	H81742	1	V-Belt	LGTH = 1346.2 mm, WIDTH = 12.7 mm
17	H134437	1	V-Belt	LGTH = 1470 mm, WIDTH = 12.7 mm
18	TY6626	1	Compressor	NLA, ORDER SE501460)
18	SE503056	1	Compressor Reman	-
18	SE501463	1	Compressor Reman	Original R134A, REMAN FOR RE46657 OR TY6765, ORDER SE503056
18	TY6765	1	Compressor	NLA, ORDER SE501463
18	SE503051	1	Compressor Reman	-
18	SE501464	1	Compressor Reman	For Machines Converted To R134A (REMAN FOR TY6766, ORDER SE503051
18	TY6766	1	Compressor	R134A, NLA, ORDER SE501464
18	RE46657	1	Compressor	Complete
18	SE501460	1	Compressor Reman	Reman For TY6626
19	R33259	1	O-Ring	-
20	AH126034	1	Hose	Return
21	19M8007	4	Cap Screw	M10 X 25
22	H125988	2	Pivot	-
23	H125989	1	Shaft	-
24	03M7191	2	Bolt	M10 X 25
25	H136603	1	Support	-
26	H125991	1	Clamp	-

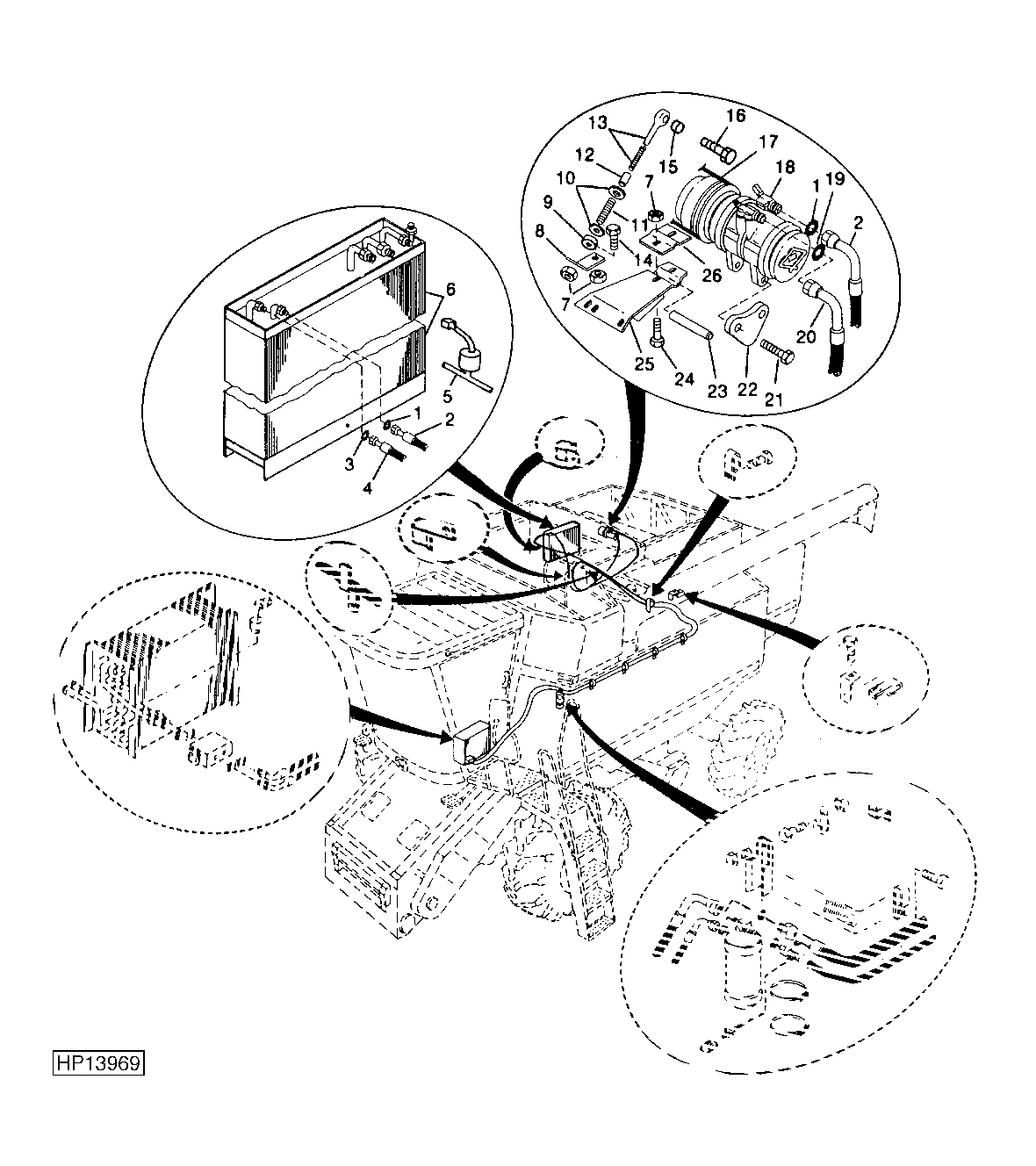

Air Conditioning System ( For R - 12 Refrigerant ) ( - 650300)
