Wiring Harness, Exhaust Filter, 15.0 L Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M10489	5	Screw	M8 X 16
2	RE576881	1	Chassis Wiring Harness	ORDER RE595464; SUB FOR RE574003
2	RE595464	1	Wiring Harness	-
3	57M10702	1	Elec. Connector Housing	B5503, NOx Sensor SCR Outlet
3	RWA11046	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
4	57M11119	3	Elec. Connector Accessory	-
5	57M10704	1	Elec. Connector Housing	B5212, SCR Temprature Module
5	RWA11046	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
6	57M11780	1	Elec. Connector Housing	B5109, DPF DELTA Pressure - Face Seal
6	RWA11138	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
7	57M10702	1	Elec. Connector Housing	B5204, Aftertreatment Temperature Module
7	RWA11046	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
8	57M9837	1	Elec. Connector Accessory	-
9	57M9776	1	Elec. Connector Housing	A916, CAN Terminator
10	57M11134	1	Elec. Connector Housing	-
11	57M9800	1	Elec. Connector Housing	X342B-15L
11	RWA10677	1	Repair Wire Assembly	Cavity 2, 3, 4, 5, 6, 7, 8, 9, 11, 12
12	57M9844	1	Elec. Connector Accessory	-
13	57M10315	1	Elec. Connector Housing	Y5020, SCR Dosing Control Valve
13	RWA11132	1	Repair Wire Assembly	Cavity 1, 2
14	57M12151	1	Elec. Connector Accessory	-
15	R44302	1	Tie Band	-
16	57M10901	9	Clamp	-
17	57M11237	1	Clip Kit	-
18	57M11277	2	Elec. Connector Accessory	-
19	19M7798	1	Screw	M8 X 40
20	28H3390	1	Spacer	0.364" X 0.540" X 1"

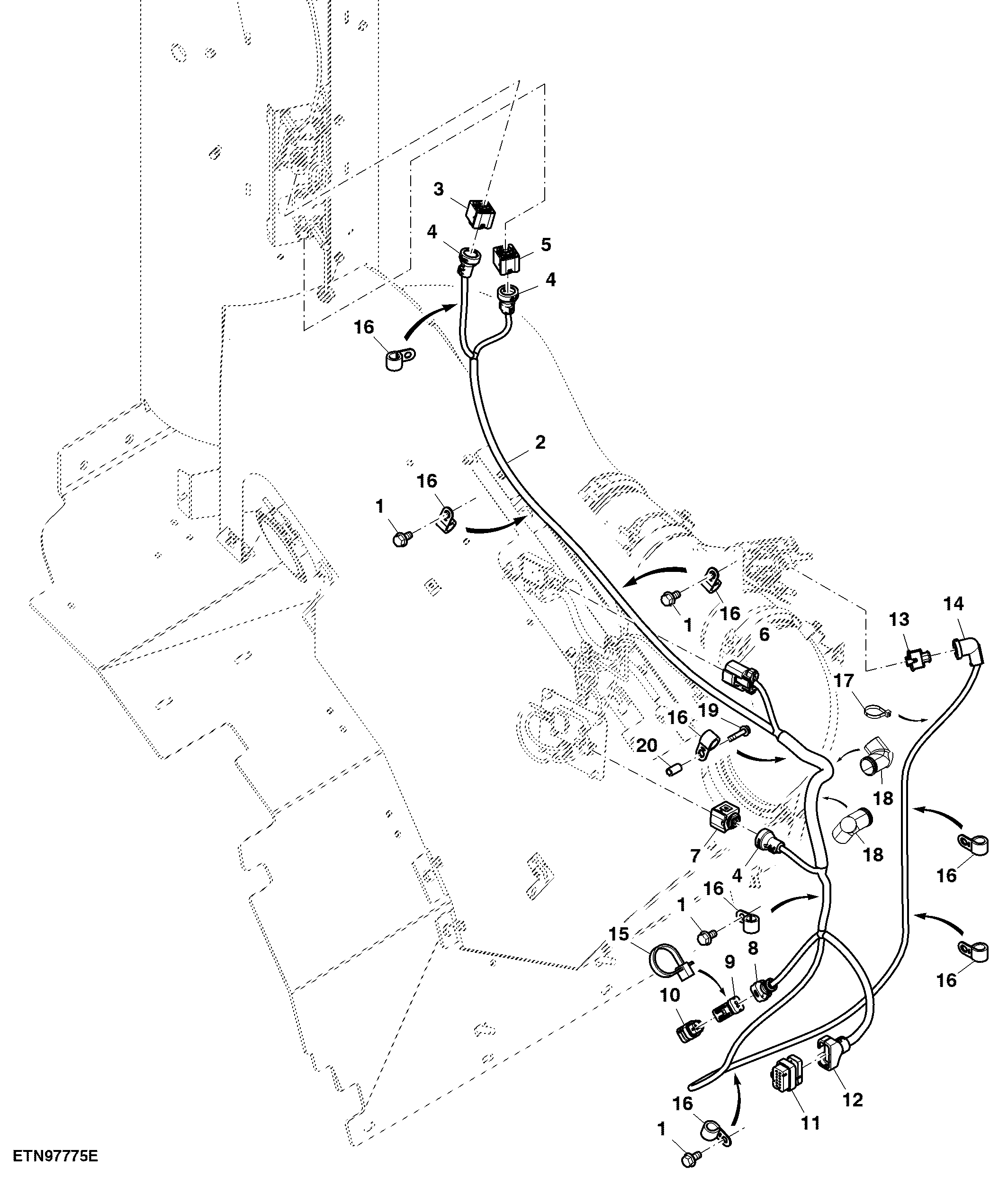

Wiring Harness, Exhaust Filter, 15.0 L Engine
