Открытый узел

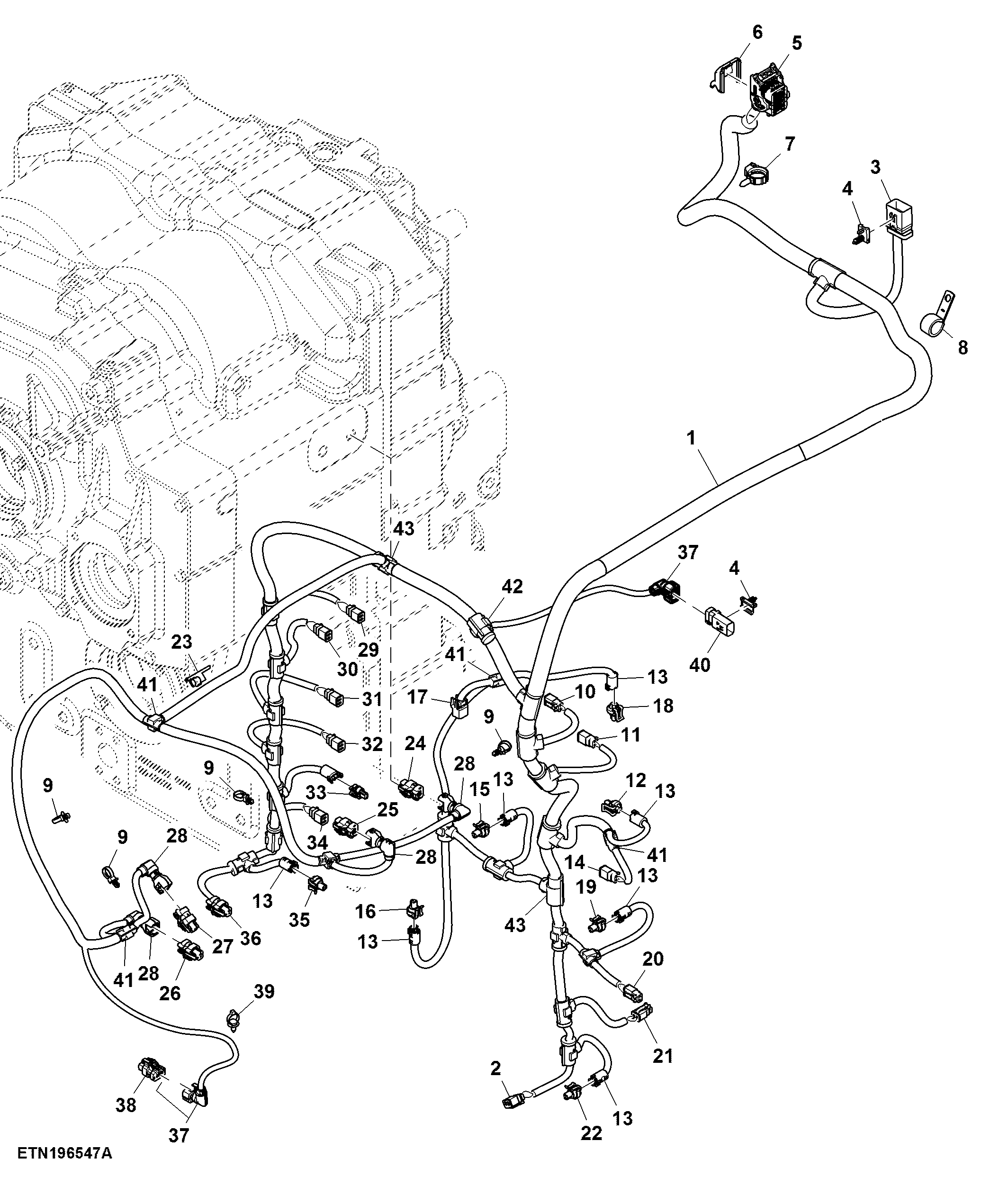

Transmission Wiring Harness, PST (805771 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE590436	1	Wiring Harness	-
2	57M10523	1	Elec. Connector Housing	Y633, Park Supply Sol
2	57M7620	1	Electrical Connector Assy	-
2	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
3	57M9804	1	Elec. Connector Housing	X330B, Chassis Interconnect
3	RWA11025	1	Repair Wire Assembly	Cavity 1, 3, 4, 6, 7, 8, 9, 10, 11, 12
4	57M9940	2	Elec. Connector Accessory	-
5	57M10366	1	Elec. Connector Housing	A570-J3, Meca Rear Controller J3 Connection
5	RWA11032	1	Repair Wire Assembly	Cavity 6, 17,18, 29, 30, 41, 42, 53
5	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
5	RWA11030	1	Repair Wire Assembly	Cavity 7, 8, 9, 11, 12, 14, 19, 20, 21, 22, 23, 24, 26, 27, 28, 32, 33, 34, 35, 36, 39, 40, 46, 52, 47, 48, 49, 50, 51, 52
6	57M10401	1	Elec. Connector Accessory	-
7	57M8908	1	Clip	-
8	57M12139	1	Clamp	-
9	57M10233	12	Tie Band	-
10	57M10523	1	Elec. Connector Housing	Y672, Directional Clutch 2
10	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
10	57M7620	1	Electrical Connector Assy	-
11	57M10523	1	Elec. Connector Housing	Y674, Directional Clutch 2
11	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
11	57M7620	1	Electrical Connector Assy	-
12	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
12	57M8625	1	Elec. Connector Housing	B705, Clutch M Pressure
13	57M11405	7	Elec. Connector Accessory	-
14	57M10523	1	Elec. Connector Housing	Y678, Range Clutch M
14	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
14	57M7620	1	Electrical Connector Assy	-
15	57M8625	1	Elec. Connector Housing	B708, Transmission System Pressure
15	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
16	57M8625	1	Elec. Connector Housing	B552, Hydraulic Oil Filter Restriction Sensor
16	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
17	RWA11097	1	Repair Wire Assembly	Cavity A, B
17	57M8633	1	Elec. Connector Accessory	-
17	57M8924	1	Elec. Connector Housing	Y630, Oil MGMT Boost
18	57M8625	1	Elec. Connector Housing	B556, Low Flow PST Filter Restriction Sensor
18	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
19	57M8625	1	Elec. Connector Housing	B706, Clutch H Pressure
19	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
20	57M10523	1	Elec. Connector Housing	Y679, Range Clutch H
20	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
20	57M7620	1	Electrical Connector Assy	-
21	57M7620	1	Electrical Connector Assy	-
21	57M10523	1	Elec. Connector Housing	Y670, Park Supply Block Sol
21	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
22	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
22	57M8625	1	Elec. Connector Housing	B707, Park Brake Pressure
23	57M11168	1	Elec. Connector Accessory	-
24	57M9775	1	Elec. Connector Housing	B713, Transmission CYL Speed
24	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
25	57M9775	1	Elec. Connector Housing	B712, Transmission In Speed
25	RWA11027	2	Repair Wire Assembly	-
26	57M9775	1	Elec. Connector Housing	B716, Transmission Out Speed 2
26	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
27	57M9775	1	Elec. Connector Housing	B715, Transmission Out Speed 1
27	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
28	57M9846	4	Elec. Connector Accessory	-
29	57M10523	1	Elec. Connector Housing	Y671, Directional Clutch 1
29	RWA11058	2	Repair Wire Assembly	-
29	57M7620	1	Electrical Connector Assy	-
30	57M10523	1	Elec. Connector Housing	Y675, Speed Clutch B
30	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
30	57M7620	1	Electrical Connector Assy	-
31	57M7620	1	Electrical Connector Assy	-
31	57M10523	1	Elec. Connector Housing	Y673, Directional Clutch R
31	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
32	57M10523	1	Elec. Connector Housing	Y676, Speed Clutch C
32	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
32	57M7620	1	Electrical Connector Assy	-
33	57M8924	1	Elec. Connector Housing	B701
33	RWA11097	1	Repair Wire Assembly	Cavity A, B
33	57M8633	1	Elec. Connector Accessory	-
34	57M10523	1	Elec. Connector Housing	Y677, Range Clutch L
34	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
34	57M7620	1	Electrical Connector Assy	-
35	57M8625	1	Elec. Connector Housing	B704, Clutch L Pressure
35	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
36	57M9775	1	Elec. Connector Housing	B714, Transmission 5Th Speed
36	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
37	57M10156	2	Elec. Connector Accessory	-
38	57M9780	1	Elec. Connector Housing	B441, HS Interconnect
38	57M11334	1	Elec. Connector Accessory	-
39	RE258807	1	Tie Band	-
40	57M9784	1	Elec. Connector Housing	XX331B, Interconnect To Chassis
41	57M10089	6	Elec. Connector Accessory	-
42	57M10092	1	Elec. Connector Accessory	-
43	57M10291	2	Elec. Connector Accessory	-

Transmission Wiring Harness, PST (805771 - )

Нет текстового описания
