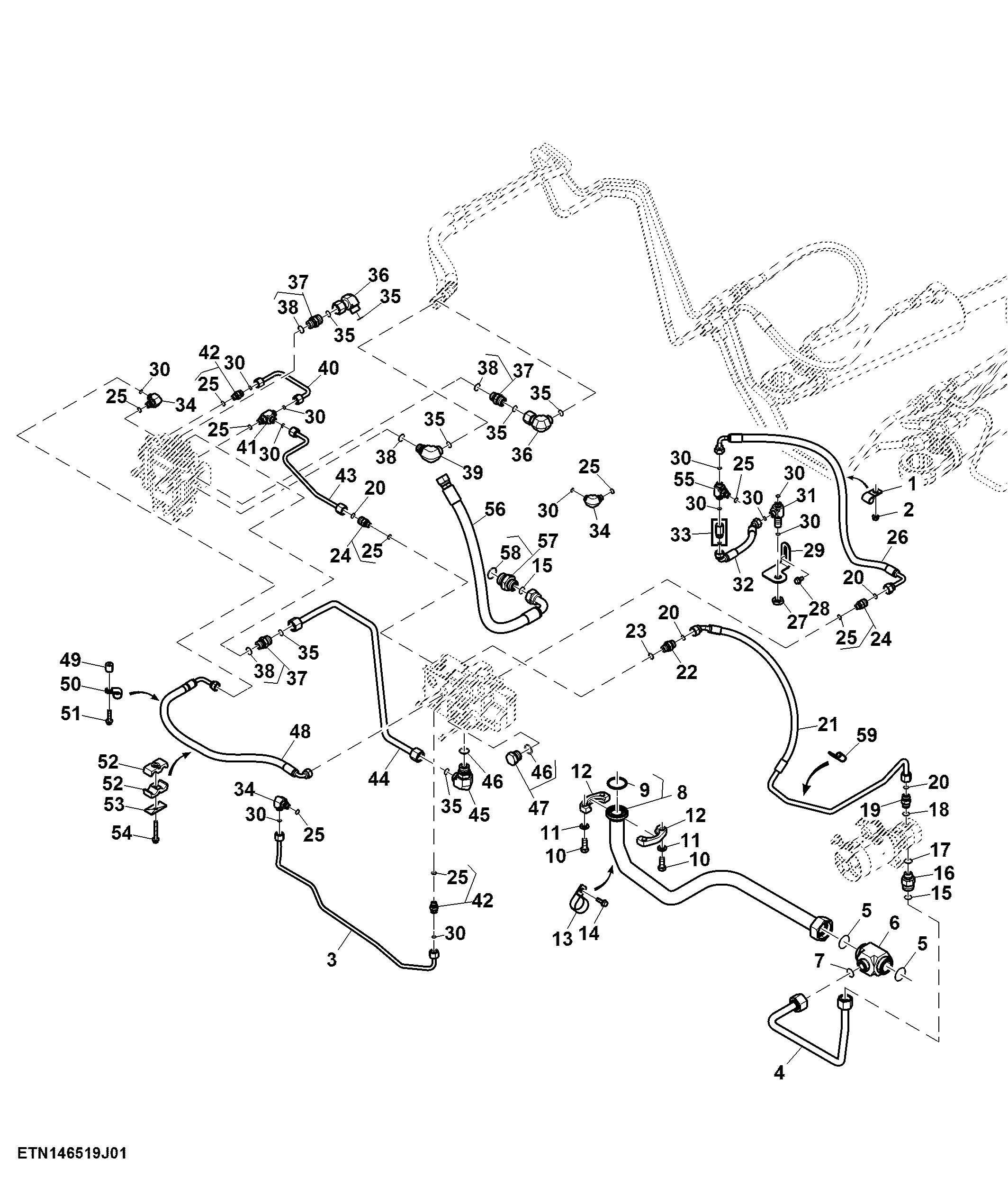

Steering System Lines, ACS™, W/ Hydraulic Trailer Brake (1/2) ( - 801462)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R125063	1	Clamp	-
2	14M7298	1	Flange Nut	M8
3	RE575217	1	Line	-
4	RE567253	1	Oil Line	-
5	T78784	2	O-Ring	-
6	38H1706	1	Tee Fitting	-
7	T76938	1	O-Ring	-
8	RE568376	1	Oil Line	-
9	T34248	1	O-Ring	-
10	19M8011	4	Cap Screw	M12 X 30
11	24M7047	4	Washer	13 X 24 X 2.500 mm
12	X51H-24	3	Flange Fitting	-
13	CB11489177	1	Clamp	-
14	19M7867	1	Screw	M8 X 25
15	T77858	2	O-Ring	-
16	38H1193	1	Adapter Fitting	-
17	R26906	1	O-Ring	-
18	R26375	1	O-Ring	-
19	38H1161	1	Adapter Fitting	-
20	T77857	4	O-Ring	-
21	RE579629	1	Oil Line	-
22	38H5003	1	Adapter Fitting	-
23	51M7043	1	O-Ring	15.300 X 2.200 mm
24	38H5009	2	Adapter Fitting	-
25	51M7041	9	O-Ring	11.300 X 2.200 mm
26	RE576463	1	Hydraulic Hose	-
27	38H5091	1	Nut	11/16"
28	19M7865	2	Screw	M8 X 16
29	R554498	1	Mounting Parts	-
30	T77613	12	O-Ring	-
31	38H5186	1	Tee Fitting	-
32	RE576848	1	Hydraulic Hose	-
33	RE337611	1	Check Valve	-
34	38H5016	3	Elbow Fitting	-
35	T77932	7	O-Ring	-
36	38H5385	2	Adapter Fitting	-
37	38H5004	3	Adapter Fitting	-
38	51M7045	4	O-Ring	19.300 X 2.200 mm
39	38H5018	1	Elbow Fitting	-
40	RE567472	1	Line	-
41	38H5067	1	Tee Fitting	-
42	38H5002	2	Adapter Fitting	-
43	RE567473	1	Line	-
44	RE576027	1	Line	-
45	38H5166	1	Elbow Fitting	-
46	51M7047	2	O-Ring	23.600 X 2.900 mm
47	RE46688	1	Fitting Plug	-
48	RE575935	2	Hydraulic Hose	Steering Valve Pilot Supply
49	R542566	1	Spacer	-
50	E53830	1	Clamp	-
51	19M7897	1	Screw	M8 X 35
52	R550794	2	Clamp	-
53	H112567	1	Plate	-
54	19M7801	1	Screw	M8 X 60
55	38H5123	1	Tee Fitting	-
56	RE582320	1	Hydraulic Hose	Steering Valve Return
57	38H5013	1	Adapter Fitting	-
58	51M7048	1	O-Ring	29.600 X 2.900 mm
59	RE73111	1	Clamp	-
