Открытый узел

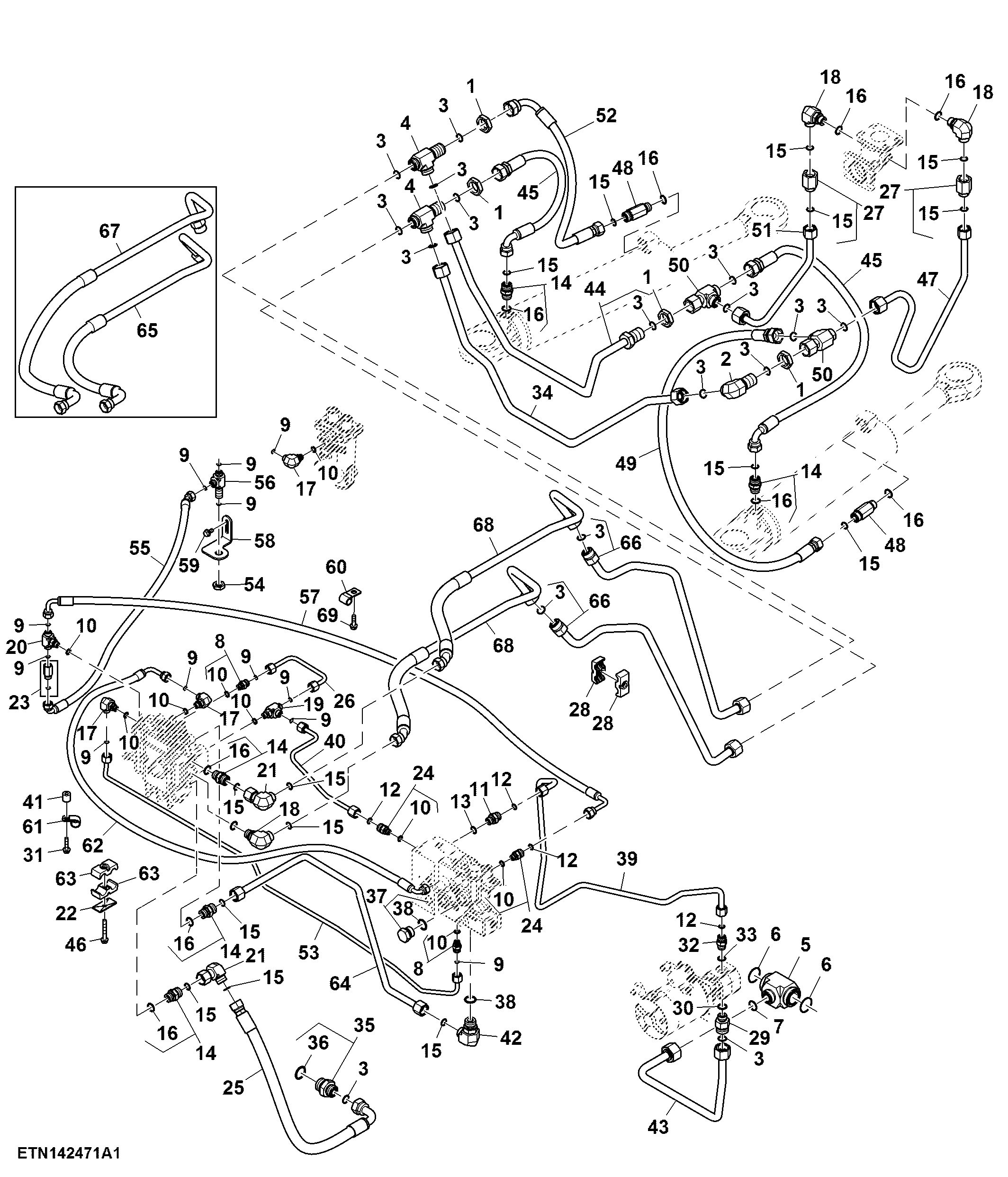

Steering System, ACS™, W/O Hydraulic Trailer Brake

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H5094	4	Nut	1-3/16"
2	38H1324	1	Elbow Fitting	-
3	T77858	17	O-Ring	-
4	38H1463	2	Tee Fitting	-
5	38H1706	1	Tee Fitting	-
6	T78784	2	O-Ring	-
7	T76938	1	O-Ring	-
8	38H5002	2	Adapter Fitting	-
9	T77613	12	O-Ring	-
10	51M7041	9	O-Ring	11.300 X 2.200 mm
11	38H5003	1	Adapter Fitting	-
12	T77857	4	O-Ring	-
13	51M7043	1	O-Ring	15.300 X 2.200 mm
14	38H5004	5	Adapter Fitting	-
15	T77932	15	O-Ring	-
16	51M7045	10	O-Ring	19.300 X 2.200 mm
17	38H5016	3	Elbow Fitting	-
18	38H5018	3	Elbow Fitting	-
19	38H5067	1	Tee Fitting	-
20	38H5123	1	Tee Fitting	-
21	38H5385	2	Adapter Fitting	-
22	H112567	1	Plate	-
23	RE337611	1	Check Valve	-
24	38H5009	2	Adapter Fitting	-
25	RE567470	1	Hydraulic Hose	Steering Valve Return
26	RE567472	1	Line	-
27	RE570973	2	Check Valve	-
28	H135155	2	Clamp	-
29	38H1193	1	Adapter Fitting	-
30	R26906	1	O-Ring	-
31	19M7897	1	Screw	M8 X 35
32	38H1161	1	Adapter Fitting	-
33	R26375	1	O-Ring	-
34	RE568286	1	Oil Line	-
35	38H5013	1	Adapter Fitting	-
36	51M7048	1	O-Ring	29.600 X 2.900 mm
37	RE46688	1	Fitting Plug	-
38	51M7047	2	O-Ring	23.600 X 2.900 mm
39	RE567004	1	Line	-
40	RE567473	1	Line	-
41	R542566	1	Spacer	-
42	38H5166	1	Elbow Fitting	-
43	RE567253	1	Oil Line	-
44	RE567474	1	Oil Line	-
45	RE565305	2	Hydraulic Hose	-
46	19M7801	1	Screw	M8 X 60
47	RE575056	1	Line	-
48	38H5192	2	Fitting	-
49	RE575054	1	Hydraulic Hose	-
50	38H5122	2	Tee Fitting	-
51	RE575083	1	Line	-
52	RE575053	1	Hydraulic Hose	-
53	RE575217	1	Line	-
54	38H5091	1	Nut	11/16"
55	RE576848	1	Hydraulic Hose	-
56	38H5186	1	Tee Fitting	-
57	RE576463	1	Hydraulic Hose	-
58	R554498	1	Mounting Parts	-
59	19M7865	2	Screw	M8 X 16
60	R125063	1	Clamp	-
61	E53830	1	Clamp	-
62	RE575935	1	Hydraulic Hose	Steering Valve
63	R550794	2	Clamp	-
64	RE576027	1	Line	-
65	RE576817	1	Oil Line	ORDER RE580768; ALSO ORDER (2) RE580773
66	RE580773	1	Oil Line	USE WITH RE580768
66	RE575815	1	Oil Line	USE WITH RE576816
66	RE575795	1	Oil Line	USE WITH RE576817
67	RE576816	1	Oil Line	ORDER RE580768; ALSO ORDER (2) RE580773
68	RE580768	2	Oil Line	-
69	19M7868	1	Screw	M8 X 30

Steering System, ACS™, W/O Hydraulic Trailer Brake

Нет текстового описания
