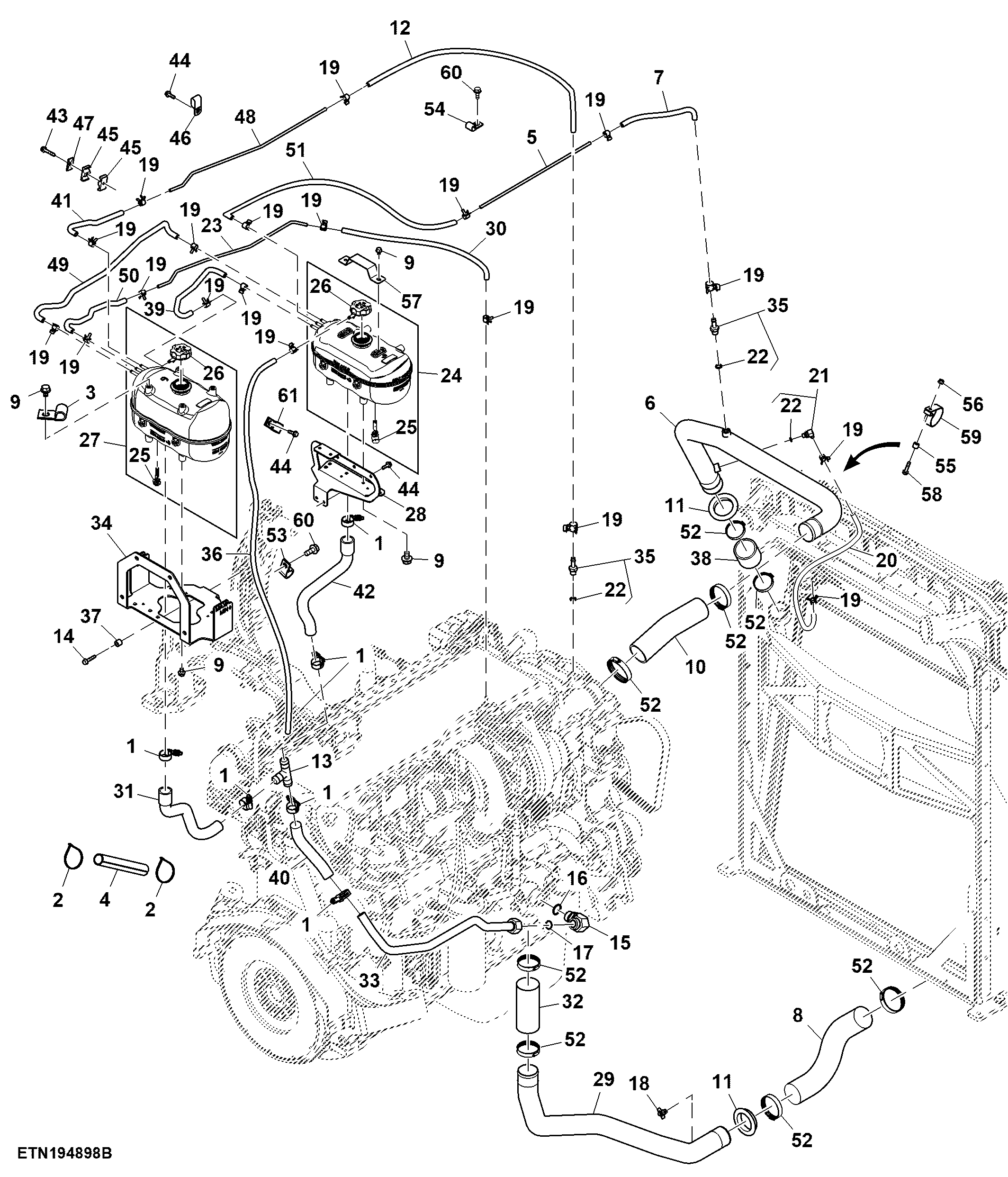

Radiator Hose, 15.0 L, FT4 Engine (800141 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE224072	6	Hose Clamp	-
2	R105388	2	Tie Band	-
3	R125063	1	Clamp	-
4	R150262	1	Isolator	-
5	R295552	1	Line	Deaeration Vent Line
6	R341973	1	Pipe	Radiator Inlet
7	R341982	1	Hose	Deaeration Hose
8	R341984	1	Radiator Hose	-
9	19M7864	11	Screw	M8 X 12
10	R540211	1	Radiator Hose	-
11	R342168	2	Grommet	-
12	R541095	1	Hose	Deaeration Hose,Connecting to Radiator Thermostat
13	A54689	1	Fitting	-
14	19M7798	2	Screw	M8 X 40
15	38H5020	1	Elbow Fitting	-
16	51M7048	1	O-Ring	29.600 X 2.900 mm
17	T76938	1	O-Ring	-
18	AT13740	1	Drain Valve	-
19	R320593	19	Hose Clamp	-
20	R342744	1	Hose	Deaeration Hose,Connecting to Radiator Inlet
21	RE500044	1	Hose Fitting	-
22	51M7040	3	O-Ring	9.300 X 2.200 mm
23	R543017	1	Tube	-
24	RE563524	1	Tank	-
25	AL201300	2	Level Switch	Coolant Level Switch
26	RE312969	2	Filler Cap	-
27	RE563523	1	Tank	-
28	RE580728	1	Support	-
29	R543699	1	Pipe	Radiator Outlet
30	R544088	1	Hose	Deaeration Tank Drain
31	R545184	1	Hose	Coolant Fill
32	R545203	1	Radiator Hose	-
33	RE571639	1	Line	Expansion Tank to Inlet ORDER RE588855
33	RE588855	1	Line	Expansion Tank to Inlet
34	R552891	1	Bracket	-
35	RE568964	2	Fitting	-
36	R552414	1	Hose	-
37	R244801	2	Spacer	-
38	R545233	1	Radiator Hose	-
39	R551116	1	Hose	Deaeration Hose,Connecting Front and Rear Tank
40	R551148	1	Hose	To Heater
41	R551115	1	Hose	Deaeration Hose,Connecting Deaeration Line to Rear Tank
42	R551150	1	Hose	Front Coolant Tank
43	19M7799	1	Screw	M8 X 45
44	19M7867	4	Screw	M8 X 25
45	H120847	2	Clamp	-
46	R125461	1	Clamp	-
47	H121168	1	Plate	-
48	R544322	1	Tube	Deaeration Line Expansion Tank
49	R544324	1	Hose	Deaeration Hose,Connecting Front and Rear Tank
50	R544325	1	Hose	Deaeration Tank Drain
51	R551114	1	Hose	Deaeration Hose,Connecting Deaeration Line to Front Tank
52	RE561077	8	Hose Clamp	-
53	R46414	2	Clamp	-
54	57M12137	1	Clamp	-
55	28H3385	1	Bushing	0.423" X 0.675" X 1/2"
56	14M7298	1	Flange Nut	M8
57	R542551	1	Bracket	-
58	19M7897	1	Screw	M8 X 35
59	R552890	1	Clamp	-
60	19M7866	2	Screw	M8 X 20

Radiator Hose, 15.0 L, FT4 Engine (800141 - )

Нет текстового описания
