Mounting Parts, Deluxe Mirror, RH ( - 802508)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL226372	1	Holder	Telescopic Arm SUB FOR AL216279 OR AL220523; INCLUDES14M7273
2	AL181124	1	Toggle/Rocker Switch	Heatable Mirror
3	RE236245	2	Switch	Power Mirror
4	RE307735	1	Roof Wiring Harness	INCLUDES RE258807
5	RE307815	1	Mirror	(Head Power Telescopic, Heat, Tilt)
6	19M9174	4	Screw	M8 X 20
7	24M7100	4	Washer	6.600 X 22 X 2 mm
8	34M7038	1	Spring Pin	6 X 20 mm
9	34M7266	2	Spring Pin	16 X 10 mm
10	37M7382	4	Screw	-
11	R567777	1	Mounting Parts	SUB FOR R537556
12	57M9078	1	Elec. Connector Housing	USE WITH (7) 57M9046_Pins, Power Mirror Adjust Switch
13	57M7254	1	Elec. Connector Housing	USE WITH (2) R104846_Pins and (2) 57M7258_Seals, ATC
13	57M7289	1	Elec.Connect Locking Device	-
14	57M7896	1	Electrical Connector Assy	USE WITH (3) 57M7511_Pins, Heat Switch
15	57M8205	1	Elec. Connector Housing	Right Power Mirror
16	57M8205	1	Elec. Connector Housing	Left Power Mirror
17	57M9078	1	Elec. Connector Housing	USE WITH (5) 57M9046_Pins, Heat and Extend Option
18	RE258807	1	Tie Band	-
19	AL160845	1	Rear View Mirror Glass	-
20	14M7273	1	Nut	M8, Not Illustrated USE WITH AL220523

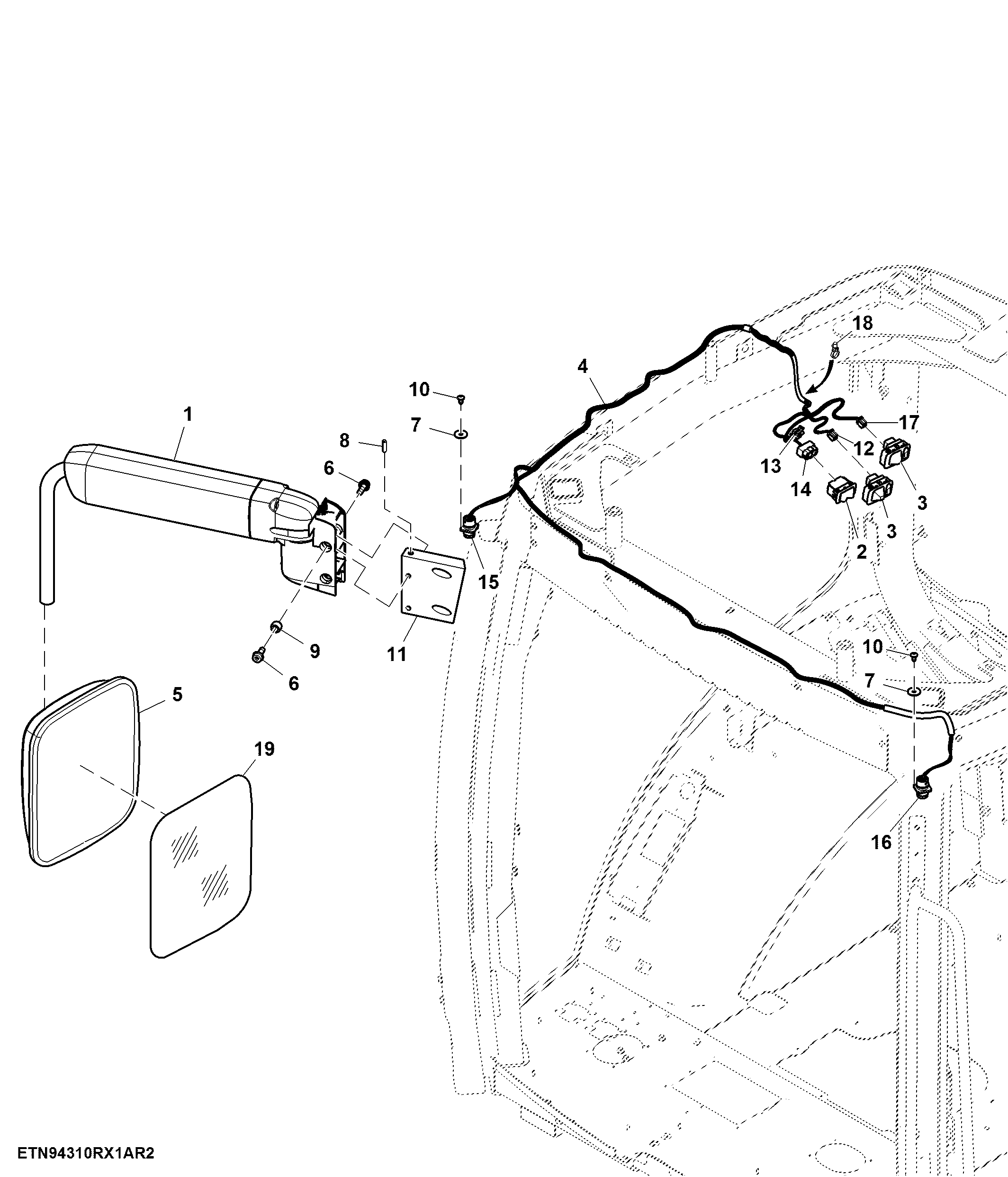

Mounting Parts, Deluxe Mirror, RH ( - 802508)
