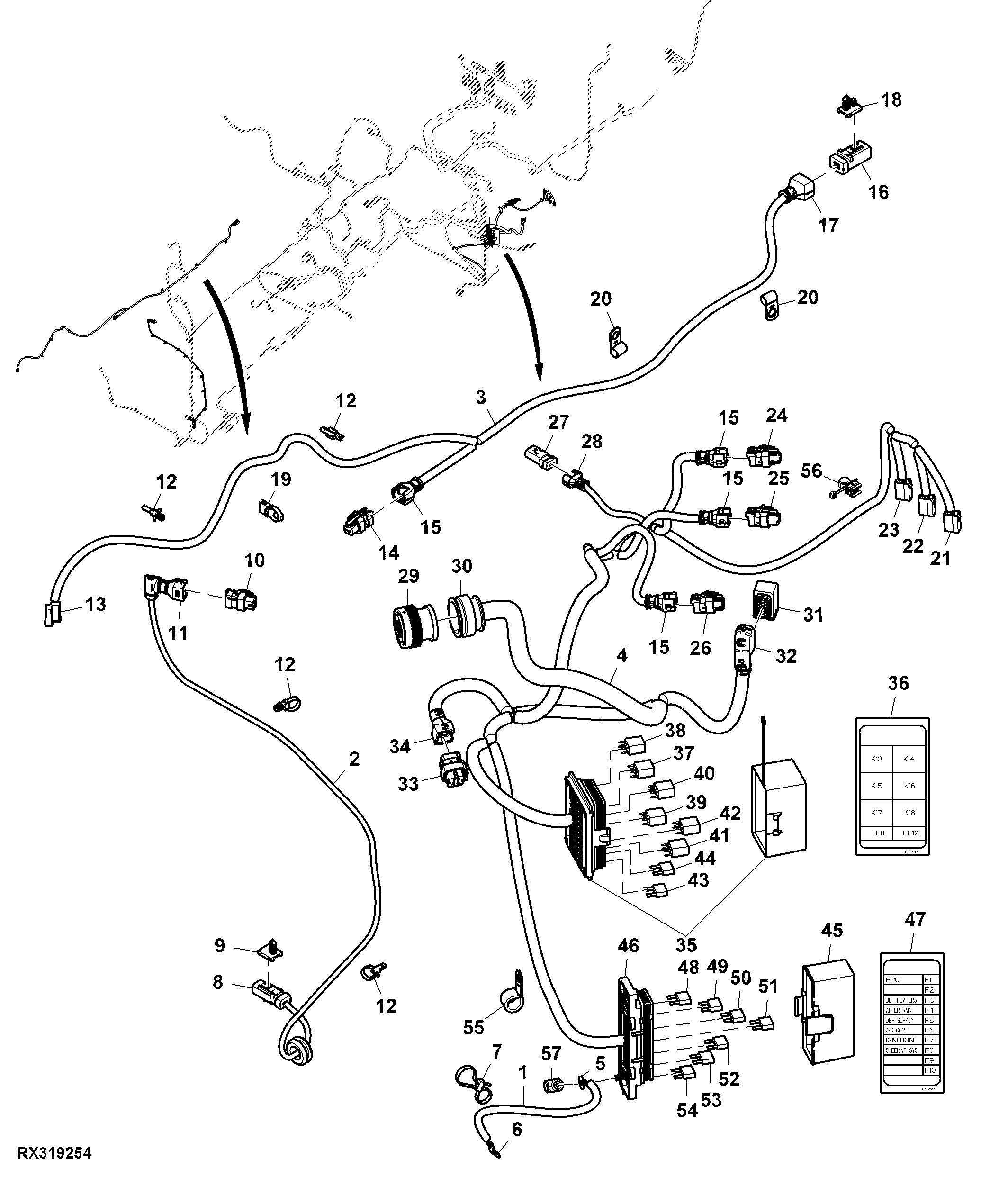

Load Center Wiring Harness, 15.0 L Engine ( - 801999)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE575979	1	Wiring Harness	-
2	RE574016	1	Chassis Wiring Harness	-
3	RE574017	1	Chassis Wiring Harness	-
4	RE577278	1	Chassis Wiring Harness	-
4	RE586852	1	Chassis Wiring Harness	-
5	57M11530	1	Elec. Connector Terminal	FEXX-L1, Load Center Power
6	57M8866	1	Elec. Connector Terminal	KSW2
7	57M10421	1	Elec. Connector Accessory	-
8	57M9733	1	Elec. Connector Housing	X034B, Chassis Interconnect
8	RWA11023	2	Repair Wire Assembly	-
9	57M9939	1	Elec. Connector Accessory	-
10	RWA11026	2	Repair Wire Assembly	-
10	57M9729	1	Elec. Connector Housing	B5303, Fan Speed (VR Sensor)
11	57M9846	1	Elec. Connector Accessory	-
12	57M10233	14	Tie Band	-
13	57M8812	1	Elec. Connector Housing	Y101-15L, Ether Solenoid
13	RWA10610	2	Repair Wire Assembly	Cavity A, B
14	57M9773	1	Elec. Connector Housing	B5205, Intercooler Outlet Temperature
14	RWA10613	2	Repair Wire Assembly	Cavity 1, 2
15	57M9837	4	Elec. Connector Accessory	-
16	57M9821	1	Elec. Connector Housing	X055B, Intercooler Interconnect
16	RWA10676	4	Repair Wire Assembly	Cavity 1, 2, 3, 4
17	57M9839	1	Elec. Connector Accessory	-
18	57M9940	1	Elec. Connector Accessory	-
19	57M10362	2	Clamp	USE WITH RE577278
19	57M10362	1	Clamp	USE WITH RE586852
20	T102934	3	Clamp	-
21	57M7144	1	Elec. Connector Housing	M01, Front Washer Pump
21	RWA11076	2	Repair Wire Assembly	Cavity A, B
22	57M7144	1	Elec. Connector Housing	M02, Rear Washer Pump
22	RWA11076	2	Repair Wire Assembly	Cavity A, B
23	57M7144	1	Elec. Connector Housing	M03, Right Washer Pump
23	RWA11076	2	Repair Wire Assembly	Cavity A, B
24	57M9772	1	Elec. Connector Housing	E5602-15L, DEF Heater - Suction Line
24	RWA11027	2	Repair Wire Assembly	Cavity 1, 2
25	57M9728	1	Elec. Connector Housing	E5603-15L, DEF Heater - Return Line
25	RWA11026	2	Repair Wire Assembly	Cavity 1, 2
26	RWA11027	2	Repair Wire Assembly	Cavity 1, 2
26	57M9773	1	Elec. Connector Housing	E5601-15L, DEF Fluid Line Heaters - Pressure Line
27	57M9784	1	Elec. Connector Housing	X339B
27	RWA11025	2	Repair Wire Assembly	Cavity 1, 2, 3
28	57M9838	1	Elec. Connector Accessory	-
29	57M9514	1	Elec. Connector Housing	X340B-15L, Chassis Interconnect
29	RWA11058	31	Repair Wire Assembly	Cavity 24, 13, 25, 14, 23, 21, 7, 15, 27, 30, 9, 8, 10, 11, 3, 6, 5, 12, 29, 26, 2, 20, 4, 22, 1, 17, 18, 16, 31, 28, 19
30	57M9383	1	Elec. Connector Accessory	-
31	57M10958	1	Elec. Connector Housing	B5501, SCR Supply Module
31	RWA10718	10	Repair Wire Assembly	Cavity 9, 8, 10, 11, 3, 12, 2, 4, 6, 5
32	57M11439	1	Elec. Connector Accessory	-
33	RWA11027	5	Repair Wire Assembly	Cavity 5, 1, 3, 2, 4
33	57M9788	1	Elec. Connector Housing	A5507, Assembly DEF Tank Header (Fluid Level and Temperature)
34	57M9841	1	Elec. Connector Accessory	-
35	RE269840	1	Fuse Box	KEXX
35	RWA11045	28	Repair Wire Assembly	Cavity 10A, 8F, 10E, 10F, 1F, 10B, 1A, 4A, 7A, 4D, 5C, 8C, 5F, 1C, 2F, 2D, 8D, 1D, 7D, 7C, 4C, 7F, 2A, 2C, 5A, 8A, 5D, 4F
36	R552512	1	Label	-
37	57M8853	1	Relay	K13
38	57M8853	1	Relay	K14
39	57M8853	1	Relay	K15
40	57M8853	1	Relay	K16
41	57M8853	1	Relay	K17
42	57M8853	1	Relay	K18
43	57M7688	1	Fuse	5 A, FE11
44	57M7688	1	Fuse	5 A, FE12
45	RE554428	1	Cover	-
46	RE554429	1	Fuse Holder	FEXX, Load Center
46	RWA11045	7	Repair Wire Assembly	Cavity B10, B3, B7, B5, B6, B9, B8
47	R543099	1	Label	-
48	57M8163	1	Fuse	30 A, B3, F1, ECU
49	57M7690	1	Fuse	15 A, B5, F3, ECU / DEF Heaters
50	57M7689	1	Fuse	10 A, B6, F4, Dosing Pump / After Treatment
51	57M7689	1	Fuse	10 A, B7, F5, Fuel Transfer Pump / DEF
52	57M7689	1	Fuse	10 A, B8, F6, A/C
53	57M7689	1	Fuse	10 A, B9, F7, Key Switch
54	57M7690	1	Fuse	15 A, B10, F8, Steering Controller
55	57M9437	1	Clamp	-
56	AH225363	1	Clip	USE WITH RE586852
57	57M12177	1	Elec. Connector Accessory	-
