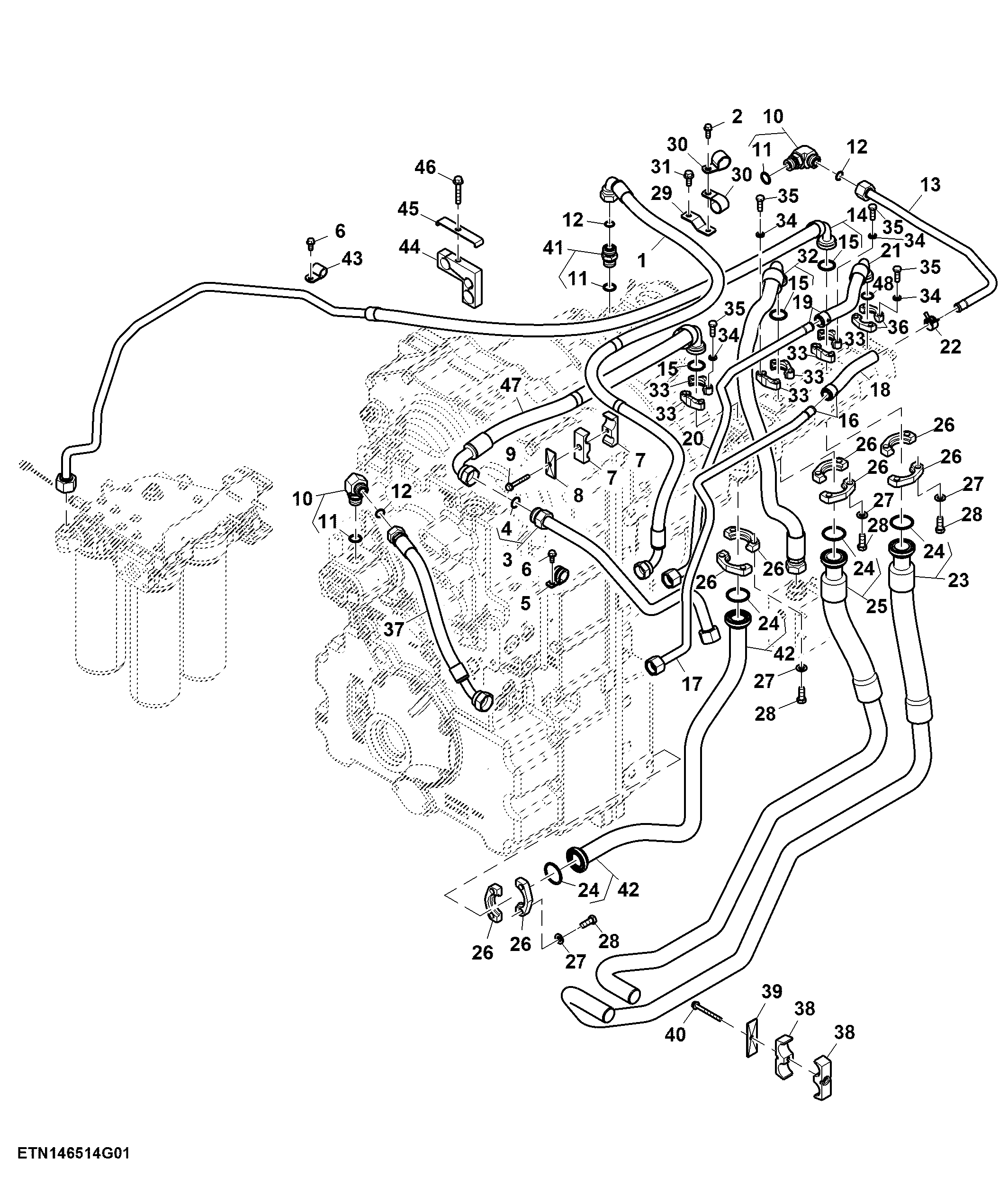

Hydraulic Pump Lines, High Flow, 90 cc and 85 cc Pump (For Scraper) (1/2) ( - 801464)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE575362	1	Hydraulic Hose	-
2	19M7867	1	Screw	M8 X 25
3	RE579388	1	Oil Line	-
4	T76938	1	O-Ring	-
5	T102934	2	Clamp	-
6	19M7866	3	Screw	M8 X 20
7	R125346	2	Clamp	-
8	H121166	1	Plate	-
9	19M7801	1	Screw	M8 X 60
10	38H5019	2	Elbow Fitting	-
11	51M7047	3	O-Ring	23.600 X 2.900 mm
12	T77858	3	O-Ring	-
13	RE579369	1	Oil Line	-
14	RE579600	1	Oil Line	-
15	T78313	3	O-Ring	-
16	RE579392	1	Oil Line	INCLUDES RE579370, RE579384
17	RE579370	1	Oil Line	-
18	RE579384	1	Hydraulic Hose	-
19	RE582845	1	Oil Line	INCLUDES RE579367, RE579368; SUB FOR RE579393
20	RE579367	1	Oil Line	-
21	RE582844	1	Hydraulic Hose	INCLUDES T59014; SUB FOR RE579368
22	R191781	1	Hose Clamp	-
23	RE568218	1	Line	INCLUDES 51M7065
24	51M7065	4	O-Ring	47.219 X 3.531 mm
25	RE567116	1	Oil Line	INCLUDES 51M7065
26	X51H-24	8	Flange Fitting	SUB FOR T47649
27	24M7047	16	Washer	13 X 24 X 2.500 mm
28	19M8011	16	Cap Screw	M12 X 30
29	RE575898	1	Bracket	-
30	R46667	2	Clamp	-
31	19M7785	1	Screw	M10 X 25
32	RE342016	1	Line	-
33	H61354	6	Flange Fitting	-
34	24M7106	16	Washer	10 X 18 X 2.500 mm
35	19M7662	16	Cap Screw	M10 X 30
36	R29424	2	Flange Fitting	-
37	RE568891	1	Hydraulic Hose	-
38	H150222	2	Hose Clamp	-
39	H114901	1	Plate	-
40	19M8039	1	Screw	M8 X 80
41	38H5005	1	Adapter Fitting	-
42	RE571593	1	Oil Line	INCLUDES (2) 51M7065
43	R73291	1	Clamp	-
44	R553314	1	Clamp	-
45	R553318	1	Bracket	-
46	19M7807	1	Screw	M10 X 60
47	RE575360	1	Hydraulic Hose	INCLUDES T78313
48	T59014	1	O-Ring	-

Hydraulic Pump Lines, High Flow, 90 cc and 85 cc Pump (For Scraper) (1/2) ( - 801464)
