Hydraulic Lines, Standard Flow, W/O PTO, Double Reduction Axle (3/3) (809017 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7403	12	Cap Screw	M12 X 35
2	R125346	6	Clamp	-
3	R125347	6	Plate	-
4	T24959	1	Clamp	-
5	19M7866	1	Screw	M8 X 20
6	RE568218	1	Line	Pump to Reservoir INCLUDES 51M7065
7	51M7065	4	O-Ring	47.219 X 3.531 mm
8	RE567116	1	Oil Line	Reservoir to Pump INCLUDES 51M7065
9	X51H-24	8	Flange Fitting	-
10	24M7047	16	Washer	13 X 24 X 2.500 mm
11	19M8011	4	Cap Screw	M12 X 30
12	R29867	4	Flange Fitting	-
13	24M7106	8	Washer	10 X 18 X 2.500 mm
14	19M7662	4	Cap Screw	M10 X 30
15	19M7550	4	Cap Screw	M10 X 35
16	RE567175	1	Hydraulic Hose	Pump Load Sense
17	19M7803	3	Screw	M8 X 70
18	RE264764	1	Check Valve	LS Orifice Check
19	T77814	2	O-Ring	-
20	38H5011	1	Adapter Fitting	-
21	51M7041	1	O-Ring	11.300 X 2.200 mm
22	H150222	2	Hose Clamp	-
23	H114901	1	Plate	-
24	19M8039	1	Screw	M8 X 80
25	RE591697	1	Oil Line	Transmission Scavenge Pump Inlet INCLUDES (2) 51M7065
26	RE594568	1	Oil Line	Front Axle Lube Supply
27	38H5022	1	Elbow Fitting	-
28	51M7040	1	O-Ring	9.300 X 2.200 mm
29	T77613	1	O-Ring	-
30	R552894	1	Manifold	-
31	19M7811	4	Screw	M10 X 90
32	T78393	3	O-Ring	-
33	RE574890	2	Hydraulic Hose	Pump to Cooler Bypass INCLUDES (2) T78393

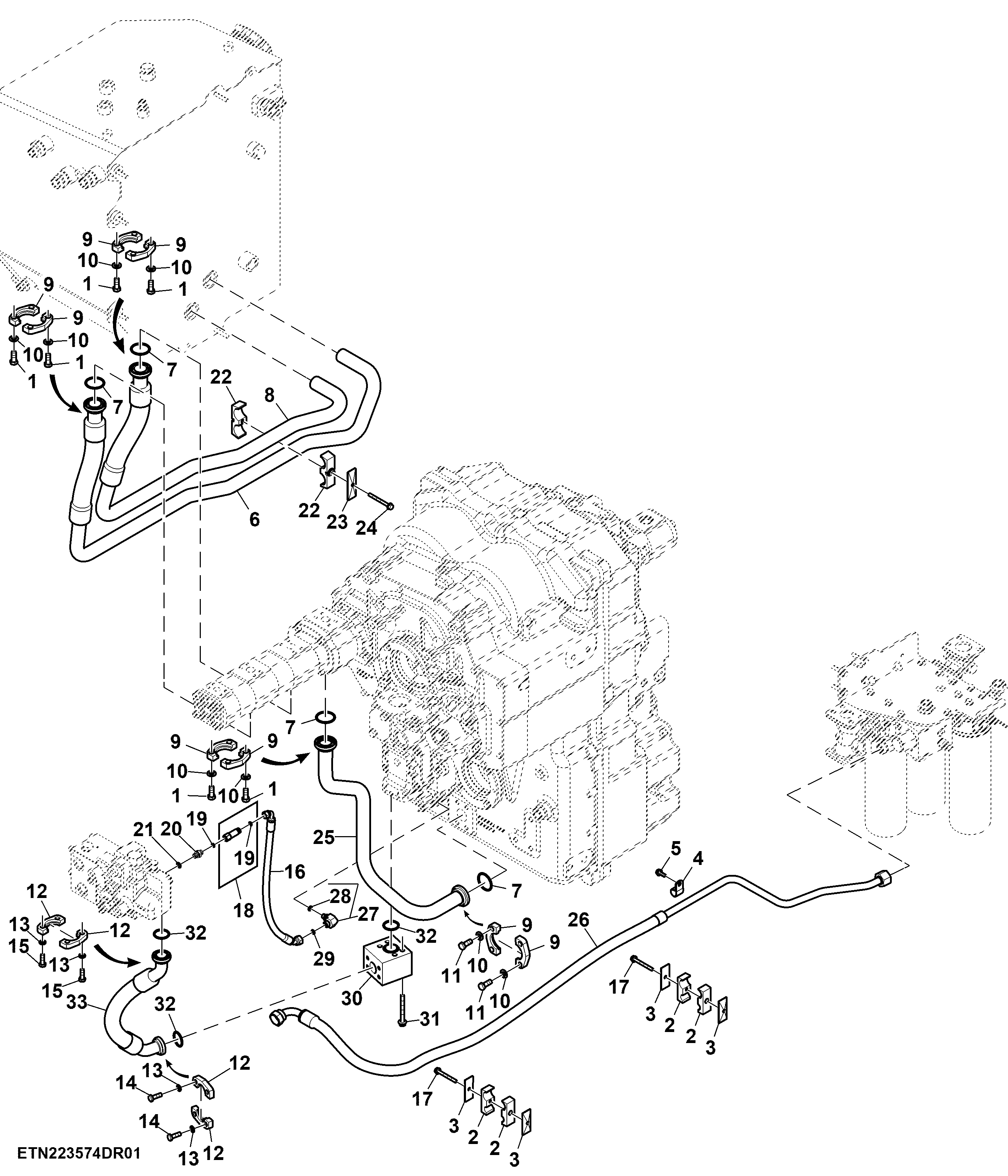

Hydraulic Lines, Standard Flow, W/O PTO, Double Reduction Axle (3/3) (809017 - )
