Hydraulic Lines, High Flow, Double Reduction Axle (For Scraper) (2/3) (804101 - 805527)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R125346	6	Clamp	-
2	R125347	6	Plate	-
3	T24959	1	Clamp	-
4	19M7866	3	Screw	M8 X 20
5	RE586913	1	Bracket	ORDER RE590545
6	R46667	4	Clamp	-
7	19M7868	1	Screw	M8 X 30
8	19M7785	1	Screw	M10 X 25
9	RE587593	1	Oil Line	Pump to Priority Valve
10	24M7047	4	Washer	13 X 24 X 2.500 mm
11	H61354	2	Flange Fitting	-
12	24M7106	8	Washer	10 X 18 X 2.500 mm
13	19M7662	8	Cap Screw	M10 X 30
14	R29867	4	Flange Fitting	-
15	RE567471	1	Hydraulic Hose	Pump Drain
16	RE567175	1	Hydraulic Hose	Pump Load Sense
17	38H5020	1	Elbow Fitting	-
18	51M7048	2	O-Ring	29.600 X 2.900 mm
19	T76938	1	O-Ring	-
20	19M7803	3	Screw	M8 X 70
21	RE264764	1	Check Valve	D100, Final Load Sense Damping Valve
22	T77814	2	O-Ring	-
23	38H5011	1	Adapter Fitting	-
24	51M7041	1	O-Ring	11.300 X 2.200 mm
25	RE580926	1	Oil Line	Filter Return to Pump INCLUDES U12331 and U46457
26	U12331	1	O-Ring	-
27	U46457	1	O-Ring	-
28	38H5004	1	Adapter Fitting	-
29	T77932	5	O-Ring	-
30	51M7045	2	O-Ring	19.300 X 2.200 mm
31	38H5005	1	Adapter Fitting	-
32	T77858	1	O-Ring	-
33	51M7047	3	O-Ring	23.600 X 2.900 mm
34	R37023	2	Flange Fitting	-
35	19M7403	4	Cap Screw	M12 X 35
36	RE571685	1	Oil Line	Front Axle Lube Supply
37	38H5022	1	Elbow Fitting	-
38	51M7040	1	O-Ring	9.300 X 2.200 mm
39	T77613	1	O-Ring	-
40	19M8061	4	Cap Screw	M12 X 140
41	38H5152	2	Adapter Fitting	-
42	R556846	1	Manifold	-
43	19M7836	4	Screw	M10 X 110
44	T78393	2	O-Ring	-
45	T283826	2	Flange Fitting	-
46	24M7240	8	Washer	13 X 25 X 3 mm
47	19M7813	4	Screw	M12 X 45
48	RE579848	1	Oil Line	Pump Outlet to Priority Valve INCLUDES T34248 and T78393
49	T34248	1	O-Ring	-
50	RE576757	1	Oil Line	Transmission Cooler to Cooler Bypass
51	R553314	1	Clamp	-
52	R553318	1	Bracket	-
53	19M7807	1	Screw	M10 X 60
54	RE580724	1	Support	-
55	R530587	1	Hose Clamp	-
56	19M7867	1	Screw	M8 X 25
57	19M7804	1	Screw	M10 X 40
58	RE567607	1	Oil Line	Twin Pump Case Drain
59	38H5030	1	Tee Fitting	-
60	RE60702	1	Diagnostic Coupling	-
61	R77175	1	Cover	-
62	RE46689	1	Fitting Plug	-
63	H127589	2	Clamp	-
64	57M9856	1	Clamp	-
65	19M7798	1	Screw	M8 X 40
66	RE587406	1	Oil Line	Pump Outlet, Axle Supply INCLUDES T78313
67	T78313	1	O-Ring	-
68	R73291	1	Clamp	-
69	RE590460	1	Hydraulic Hose	Cooler Bypass to Reservoir SUB FOR RE575362
70	RE590545	1	Bracket	-

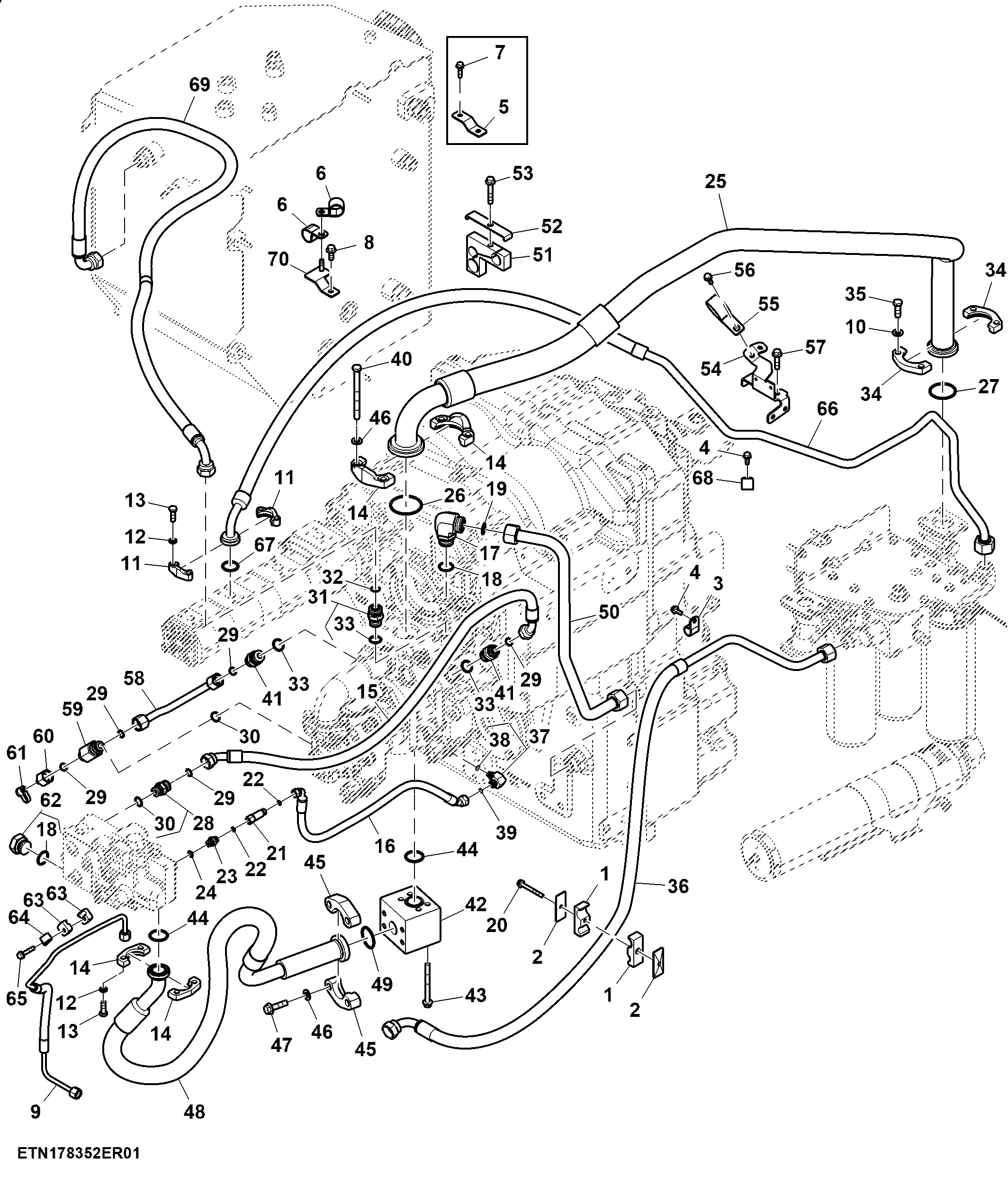

Hydraulic Lines, High Flow, Double Reduction Axle (For Scraper) (2/3) (804101 - 805527)
