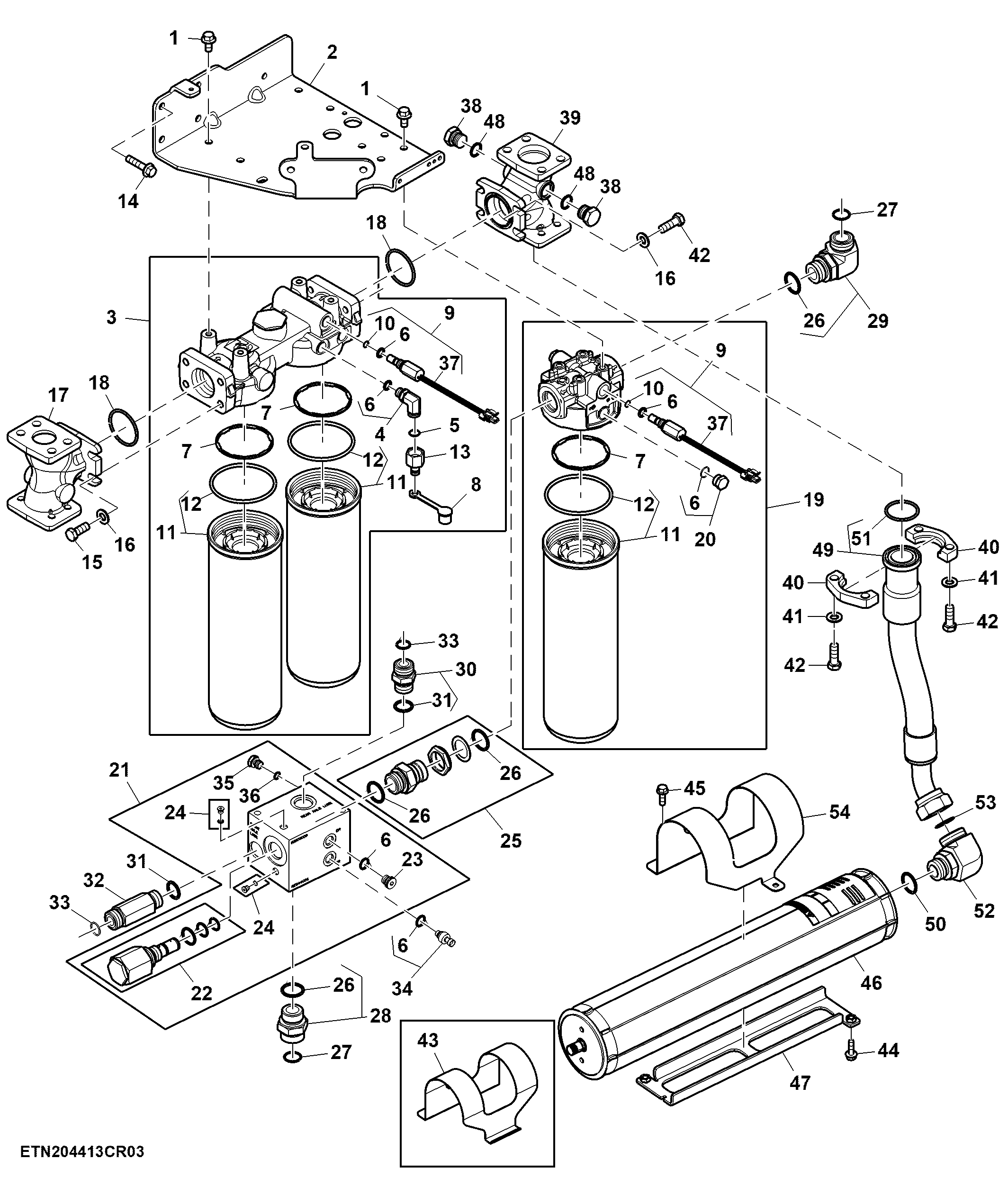

Hydraulic Filter, Double Reduction Axle, 90 CC and 85 CC Pump (807001 - 809002)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7784	10	Screw	M10 X 20
2	RE592835	1	Bracket	-
3	RE590268	1	Hydraulic Filter	SUB FOR RE577056
4	38H5023	2	Elbow Fitting	-
5	T77857	2	O-Ring	-
6	51M7041	7	O-Ring	11.300 X 2.200 mm
7	R319548	3	Ring	ORDER R564922; USE WITH RE577060
7	R564922	3	Ring	USE WITH RE577612
8	R77175	2	Cover	-
9	RE573829	2	Pressure Switch	Filter Restriction USE WITH RE577056 OR RE590268 OR RE577059
9	RE587015	1	Sensor	Filter Restriction USE WITH RE590270
10	R27976	2	O-Ring	USE WITH RE577056 OR RE590268 OR RE577059
10	R10093	1	O-Ring	USE WITH RE590270
11	RE577612	3	Filter Element	SUB FOR RE310653 OR RE577060
12	R319545	3	O-Ring	ORDER R568323;USE WITH RE577060
12	R568323	3	O-Ring	-
13	RE43774	2	Diagnostic Coupling	-
14	19M7805	4	Screw	M10 X 45
15	19M8011	4	Cap Screw	M12 X 30
16	24M7623	8	Washer	13 X 24 X 2.500 mm
17	R546362	1	Flange Fitting	-
18	51M7066	2	O-Ring	56.744 X 3.531 mm
19	RE590270	1	Filter Head	SUB FOR RE577059
20	RE46684	1	Fitting Plug	-
21	RE344054	1	Pressure Relief Valve	-
22	RE572345	1	Hydraulic Pressure Valve	-
23	64M1017	1	Drain Plug	-
24	A73181	2	Pipe Plug	-
25	RE560670	1	Fitting	-
26	51M7048	2	O-Ring	29.600 X 2.900 mm
27	T76938	2	O-Ring	-
28	38H5006	1	Adapter Fitting	-
29	38H5020	1	Elbow Fitting	-
30	38H5005	1	Adapter Fitting	-
31	51M7047	2	O-Ring	23.600 X 2.900 mm
32	38H5202	1	Adapter Fitting	-
33	T77858	2	O-Ring	-
34	RE217077	1	Trans Oil Pressure Sensor	-
35	64M1002	1	Fitting Plug	-
36	51M7040	1	O-Ring	9.300 X 2.200 mm
37	57M7328	2	Elec. Connector Housing	-
37	57M7289	2	Elec.Connect Locking Device	-
38	64M1007	2	Drain Plug	-
39	R546363	1	Flange Fitting	-
40	X51H-24	2	Flange Fitting	-
41	24M7047	4	Washer	13 X 24 X 2.500 mm
42	19M7403	8	Cap Screw	M12 X 35
43	R550500	1	Clamp	ORDER R571911
44	19M8327	2	Screw	M8 X 25
45	19M7867	2	Screw	M8 X 25
46	RE332185	1	Hydraulic Accumulator	-
47	RE576777	1	Support	-
48	51M7045	2	O-Ring	19.300 X 2.200 mm
49	RE569827	1	Hydraulic Hose	-
50	R29936	1	O-Ring	-
51	51M7065	1	O-Ring	47.219 X 3.531 mm
52	38H1053	1	Elbow Fitting	-
53	T78612	1	O-Ring	-
54	R571911	1	Clamp	-

Hydraulic Filter, Double Reduction Axle, 90 CC and 85 CC Pump (807001 - 809002)

Нет текстового описания
