Headlight, W/ Adjustable Flood Lamp, Halogen (For North America)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE269638	2	Floodlamp	INCLUDES RE179326
2	R269642	2	Cover	-
3	R273005	2	Bracket	-
4	19M7865	2	Screw	M8 X 16
5	L100644	2	Grommet	-
6	RE300747	1	Roof Wiring Harness	-
7	RE269636	4	Lamp	INCLUDES 57M10180
8	RE269637	6	Floodlamp	INCLUDES RE179326
9	R299239	2	Bracket	-
10	R299240	2	Bushing	-
11	19M7979	2	Screw	M8 X 55
12	12M5442	2	Washer	8.400 X 15 X 0.800 mm
13	14M7396	2	Lock Nut	M8
14	RE179326	8	Bulb	12 V, Amber
15	57M7255	1	Elec. Connector Housing	Left Loader Light USE WITH (2) 57M7297_Pins, (2) 57M10915_Seals
15	57M7317	1	Elec. Connector Accessory	-
16	57M8839	1	Elec. Connector Housing	Right Front Inner Flood Light USE WITH (2) 57M7297_Pins, (2) 57M10915_Seals
16	57M8129	1	Elec. Connector Terminal	-
17	57M7255	1	Elec. Connector Housing	Right Loader Light USE WITH (3) R104846_Pins, (3) 57M7258_Seals
17	57M7317	1	Elec. Connector Accessory	-
18	M135518	1	Electrical Connector Assy	Inline to Roof USE WITH Z67733_Pins, (6) R104921_Pins
19	57M8839	1	Elec. Connector Housing	Right Front Inner Flood Light USE WITH (3) 57M10770_Pins, (3) 57M7258_Seals
19	57M8129	1	Elec. Connector Terminal	-
20	57M10180	4	Bulb	13.5 V

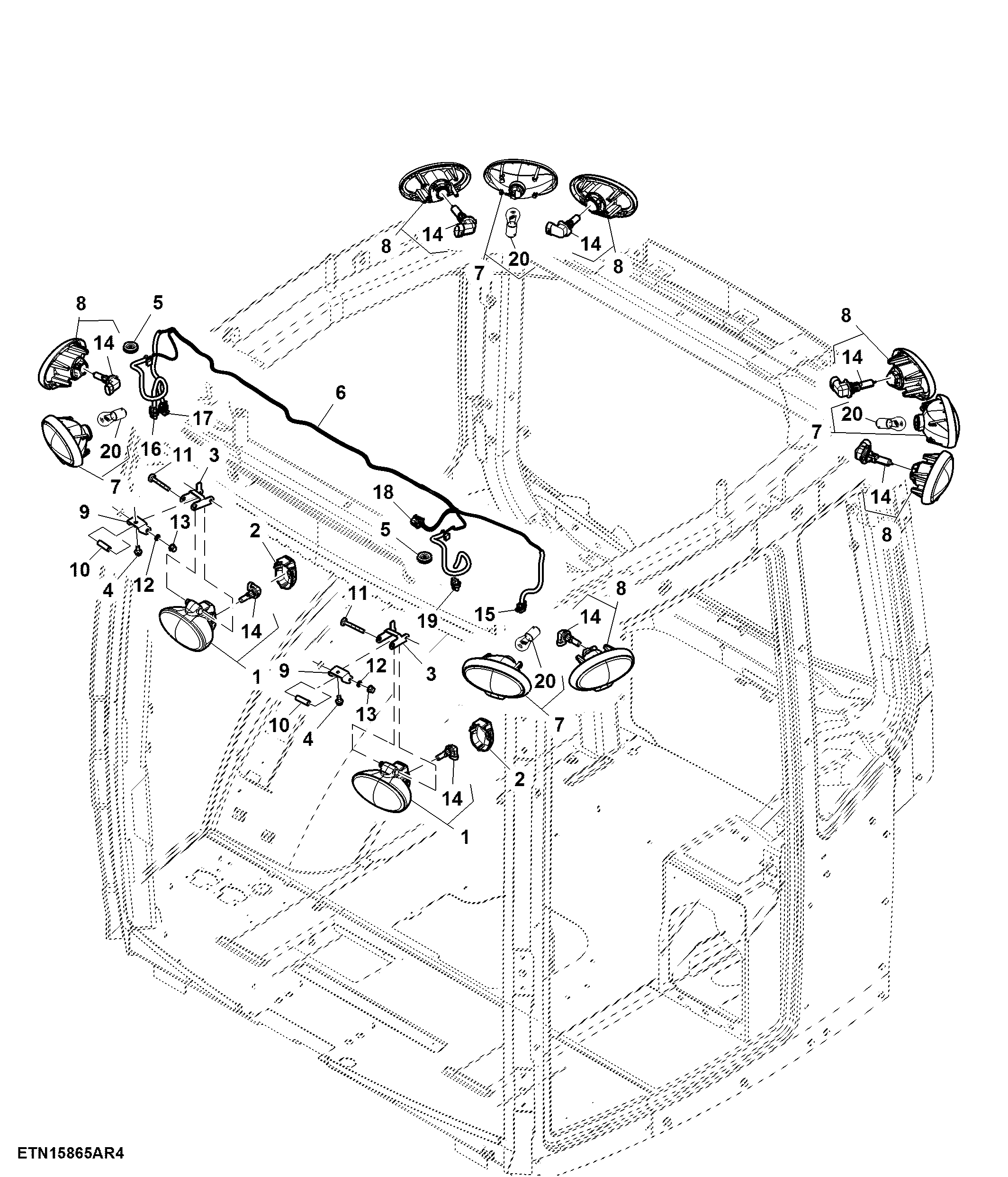

Headlight, W/ Adjustable Flood Lamp, Halogen (For North America)
