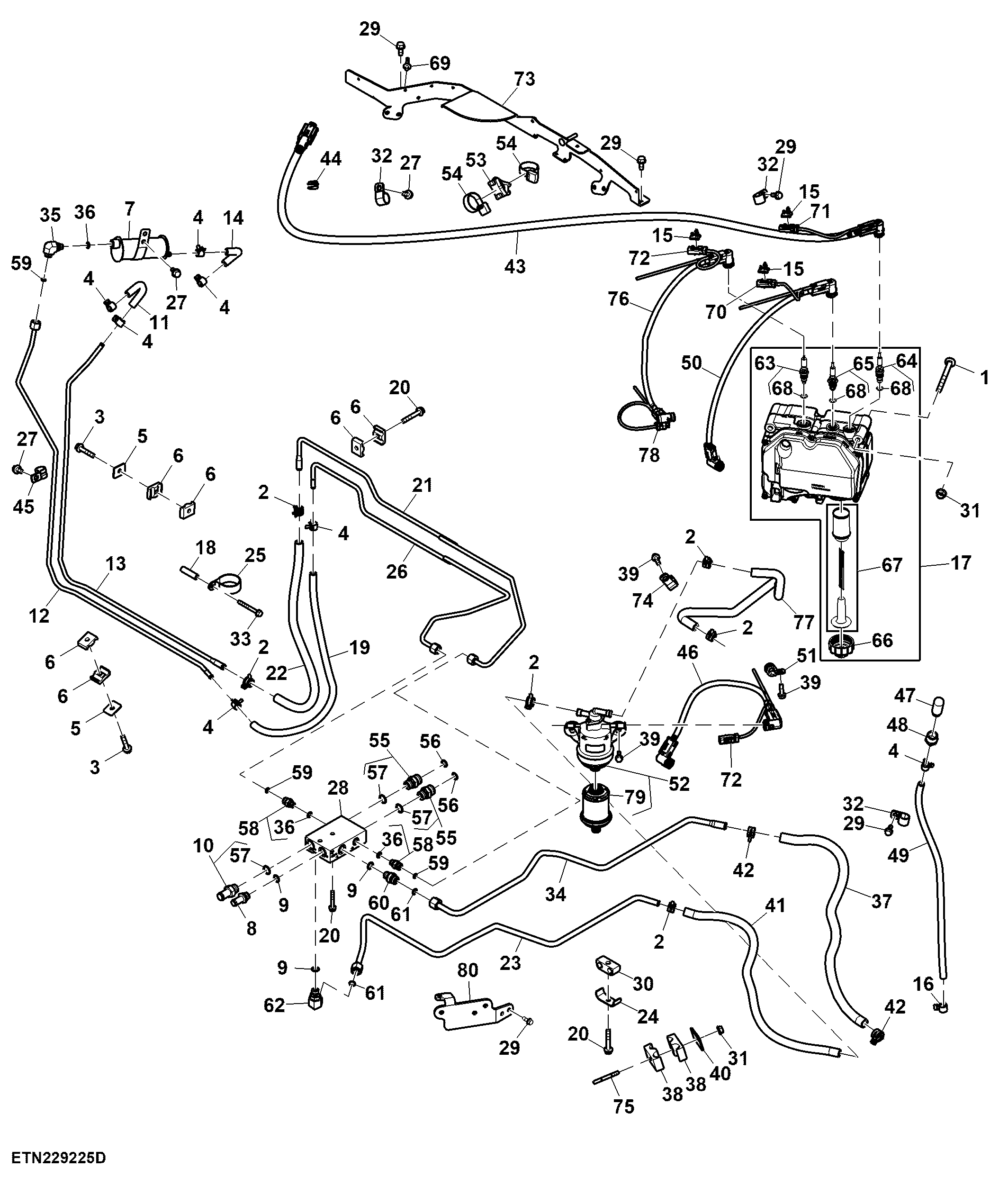

DEF Lines and Pumps, 15.0 L, FT4/ Stage 5 Engine (809006 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7295	3	Bolt	M8 X 90
2	R184863	6	Hose Clamp	-
3	19M7798	2	Screw	M8 X 40
4	R202160	7	Clamp	-
5	H121163	2	Strap	-
6	H128515	6	Clamp	-
7	RE572217	1	Reservoir	-
8	R543495	1	Fitting	-
9	51M7043	3	O-Ring	15.300 X 2.200 mm
10	RE223627	1	Hose Fitting	-
11	R551016	1	Hose	Upper Doser Coolant Port to Upper Doser Line
12	RE572613	1	Line	Coolant Under Aftertreatment Device to Doser Reservoir
13	R545614	1	Line	Doser Coolant
14	R551014	1	Hose	Under Aftertreatment Device to Rear/ Lower Doser Line
15	57M9940	4	Elec. Connector Accessory	-
16	R251581	1	Clamp	-
17	DZ117135	1	DEF Dosing Unit Pump	-
18	28H3470	1	Spacer	0.364" X 0.540" X 2"
19	R552818	1	Hose	Coolant Doser to Undercab
20	19M7800	4	Screw	M8 X 50
21	RE579563	1	Line	Coolant Manifold to Doser
22	R552817	1	Hose	Coolant Undercab to Doser
23	RE579562	1	Line	DEF Tank to Manifold
24	R184060	1	Cover	-
25	Z75620	1	Clamp	-
26	RE579564	1	Line	Coolant Doser to Manifold
27	19M7865	5	Screw	M8 X 16
28	R556479	1	Manifold	-
29	19M7866	6	Screw	M8 X 20
30	R184066	2	Clamp	-
31	14M7298	4	Flange Nut	M8
32	E53830	4	Clamp	-
33	19M7803	1	Screw	M8 X 70
34	RE579561	1	Line	Coolant Manifold to DEF Tank
35	38H5016	1	Elbow Fitting	INCLUDES 51M7041
36	51M7041	3	O-Ring	11.300 X 2.200 mm
37	R570483	1	Hose	Coolant Supply, Cab to Header
38	H114897	2	Clamp	-
39	19M7867	4	Screw	M8 X 25
40	H112567	1	Plate	-
41	R570470	1	Hose	DEF Header Coolant Return
41	R573076	1	Hose	DEF Header Coolant Return Service Only
42	T184924	2	Hose Clamp	-
43	RE581139	1	DEF Line	DEF Pressure Line
44	L156247	4	Clamp	-
45	T269641	1	Clamp	-
46	RE595133	1	DEF Line	Suction
47	H216169	1	Breather	-
48	H216170	1	Fitting	-
49	R570491	1	Hose	DEF Vent
50	RE595131	1	DEF Line	Backflow
51	T76252	1	Clamp	-
52	DZ118548	1	Filter	SUB FOR DZ107716
53	AN209168	1	Swivel	-
54	H224073	2	Tie Band	-
55	38H5004	2	Adapter Fitting	-
56	T77932	2	O-Ring	-
57	51M7045	3	O-Ring	19.300 X 2.200 mm
58	38H5002	2	Adapter Fitting	-
59	T77613	3	O-Ring	-
60	38H5003	1	Adapter Fitting	-
61	T77857	2	O-Ring	-
62	38H5017	1	Elbow Fitting	-
63	REC288029900	1	Adapter Fitting	-
64	REC288030000	1	Adapter Fitting	-
65	REC550621800	1	Adapter Fitting	-
66	REC288039600	1	Cap	-
67	DZ114640	1	Filter Kit	SUB FOR RE554498
68	REC288030200	3	O-Ring	-
69	RE258807	10	Tie Band	-
70	57M9778	1	Elec. Connector Housing	-
71	57M9731	1	Elec. Connector Housing	-
72	57M9776	2	Elec. Connector Housing	-
73	RE590624	1	Bracket	-
74	T72393	1	Clamp	-
75	42M7034	1	Stud	-
76	RE595132	1	DEF Line	Suction Jumper
77	R570488	1	Line	Coolant, Filter Jumper
78	57M9772	1	Elec. Connector Housing	-
79	DZ110513	1	Filter Kit	-
80	RE594648	1	Bracket	-
